Summary of Contents for dji GOGGLES Racing Edition

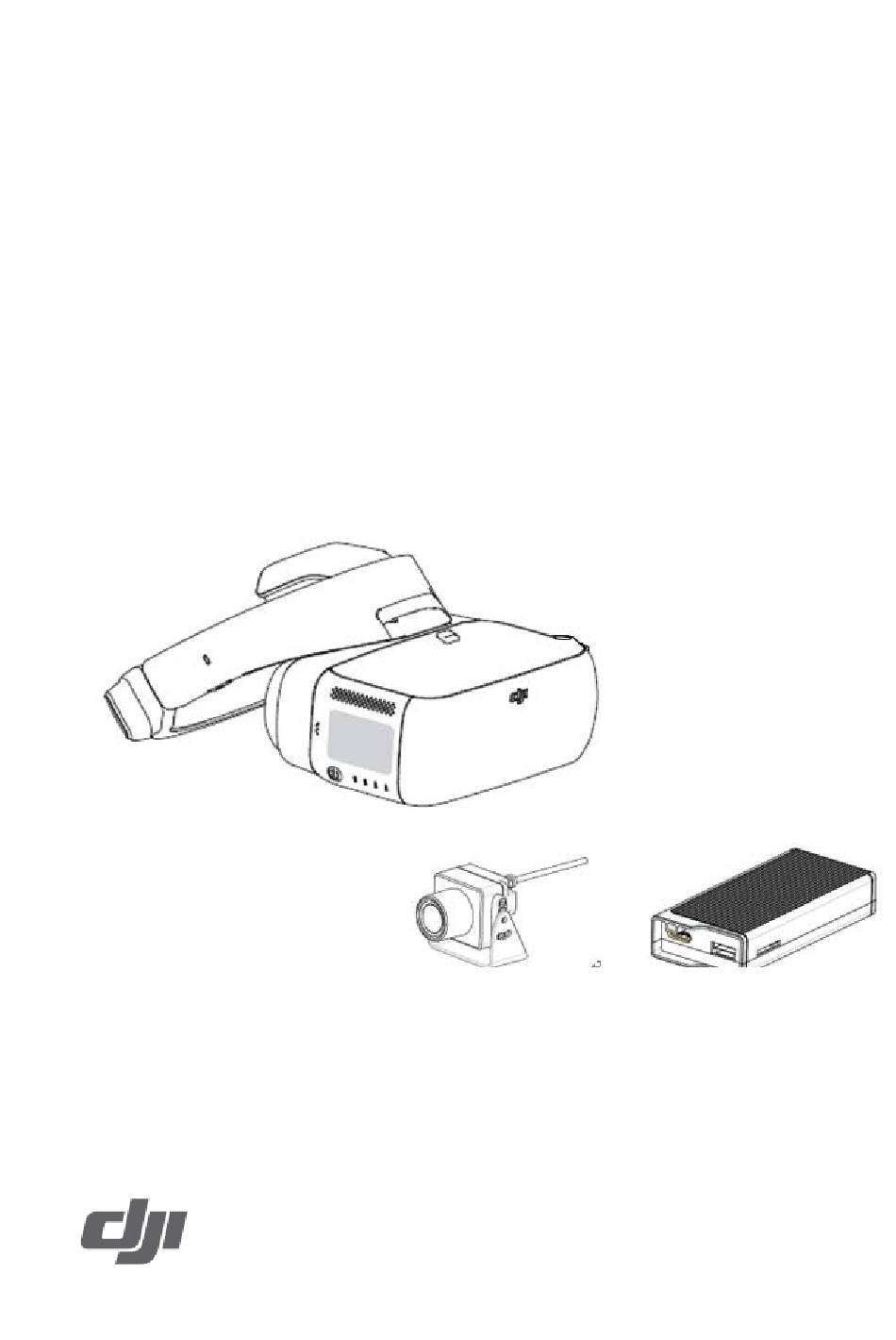

- Page 1 DJI GOGGLES Racing Edition Quick Start Guide V1.0...
- Page 2 50ms latency and up to 2km transmission distance, a variety of Antennas can be usedfor more application scenarios. For third-party racing aircraft, DJI OcuSync Air Unit can be used directly with DJI Goggles to provide you with acamera, video transmission, controls and displays integrated, high-quality racing...
- Page 3 1. Touch Panel 2. Headband 3. Charging Status Indicator 4. Micro USB Port 5. Headband Knob 6. Speaker 7. Power Button 8. Battery Level Indicators 9. Back Button 10. Function Button 11. Link Button 12. Linking Status Indicator 13. IPD (Interpupillary Distance) Knob 14.
- Page 4 PPM Cable to control the aircraft or gimbal by DJI Goggles. (supported later) 7. Link Button Press this button to link the DJI OcuSync Air Unit with the DJI Goggles. 8. Linking Status Indicator Indicate the linking status of the DJI OcuSync...
-
Page 5: Module Connections
When using the Digital Video Downlink, In addition to install the pagoda antenna (SMA interface) to the SMA Port of DJI Goggles, you will also need to install the DJI OcuSync Air System on a third-party racing aircraft to work with DJI Goggles. Refer... - Page 6 100 m or more. It is recommended to mount the DJI OcuSync Air Unit with its screw side facing down. The SBUS Port and the PPM Port on the Air Unit are only used when transmitting the remote control signal, these ports are not need to be connected if only video downlink is used.
- Page 7 block at the antenna level, and keep the bottom of the antennafrom the good conductor (cable, carbon fiber frame, battery and metal, etc.) at least 25mm. You can connect the coach port of a third-party remote controllerand the audio port onDJI Gogglesthrough the coach cable to transmit the control signal to the racing aircraft when using the Digital Video Downlink...
- Page 8 Installation and Wearing...
- Page 9 Check the Battery Level and Charging Press once to check the battery level. Press once, then again and hold to turn on/off. The Battery is fully charged when the Charging Status Indicator or the BatteryLevel Indicators turn off. Charge time: ~ 4 hours Maximum run-time: ~ 6 hours...
- Page 10 Follow the steps below to link with the third-party racing aircraft. 1. Power on the DJI OcuSync Air Unit, press the link button on the air unit with an appropriate tool when the linking status indicator is solid green, the indicator will turn solid red when the air unit is waiting for linking.
- Page 11 3. Make sure the distance between DJI Goggles and the Air Unit is within 2m, both the two linking status indicators will turn solid green when successfully linked, and the video will be normally displayed. Controls Single Finger Touch /...
- Page 12 Operating Temperature Range 32° to 104° F (0° to 40° C) Charger Input: 100-240 VAC, 50 / 60 Hz, 0.5 A Output: DJI OcuSync Air Unit CE freuency band 2.4G Operating Frequency Band (RF) : 10M: 2405.5-2477.5MHz(TX/RX) 20M: 2410.5-2472.5MHz(TX/RX) 5.8G 10M: 5730.5-5844.5MHz(TX/RX)
-
Page 13: Compliance Information
Compliance Information SAR tests are conducted using standard operating positions accepted by the FCC/ISEDC with the goggles transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the goggles while operating can be well below the maximum value. - Page 14 Diretiva. Existe www.dji.com/euro-compliance Dichiarazione di conformità UE: SZ DJI TECHNOLOGY CO., L TD. d ichiara c he il presentedispositivo è conforme ai requisiti e ssenziali e alle altre disposizioni rilevanti delladirettiva.
- Page 15 Déclaration de conformité UE: Par la p résente, SZ DJ I TECHNOLOGY CO., L TD declare que cet apparei l est confor me aux pr incipales exigences et au tres clause s pertinentesde la directive européenne. www.dji.com/euro-compliance EU-Compliance: Hiermit erklärt SZ DJI TECHNOLOGY CO., LTD., dass dieses Gerätden wesentlichen EURichtlinie entspricht. Eine aufwww.dji.com/euro-compliance.
- Page 16 “La operación de este equipo está sujeta a la s siguientes dos condiciones: (1) es posible que este eq uipo o dispositivo no cause interfer encia per judicial y (2) este equipo dispositivo debe aceptar cualquier i nterferencia, incl uyendo la que pu eda causar su operación no deseada.”...
