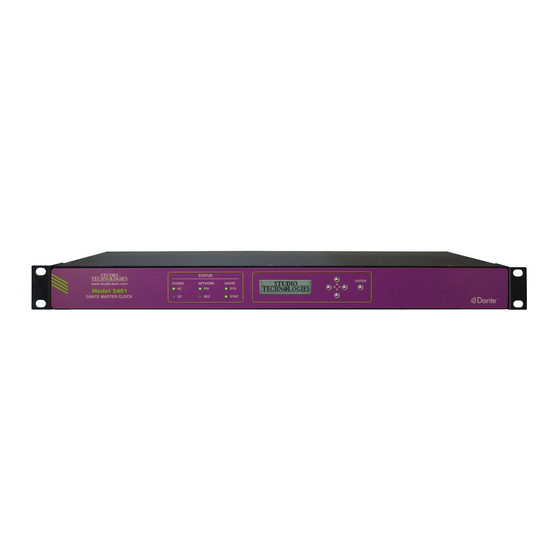

Model 5401
Dante™ Master Clock
User Guide
Issue Preliminary 4, May 2018
This User Guide is applicable for serial numbers
M5401-00151 and later with application firmware 1.02 and later
and Dante firmware 1.1.0 (Brooklyn II 3.10.2.2) and later
Copyright © 2018 by Studio Technologies, Inc., all rights reserved
www.studio-tech.com
50609-0518, Issue Preliminary 4
