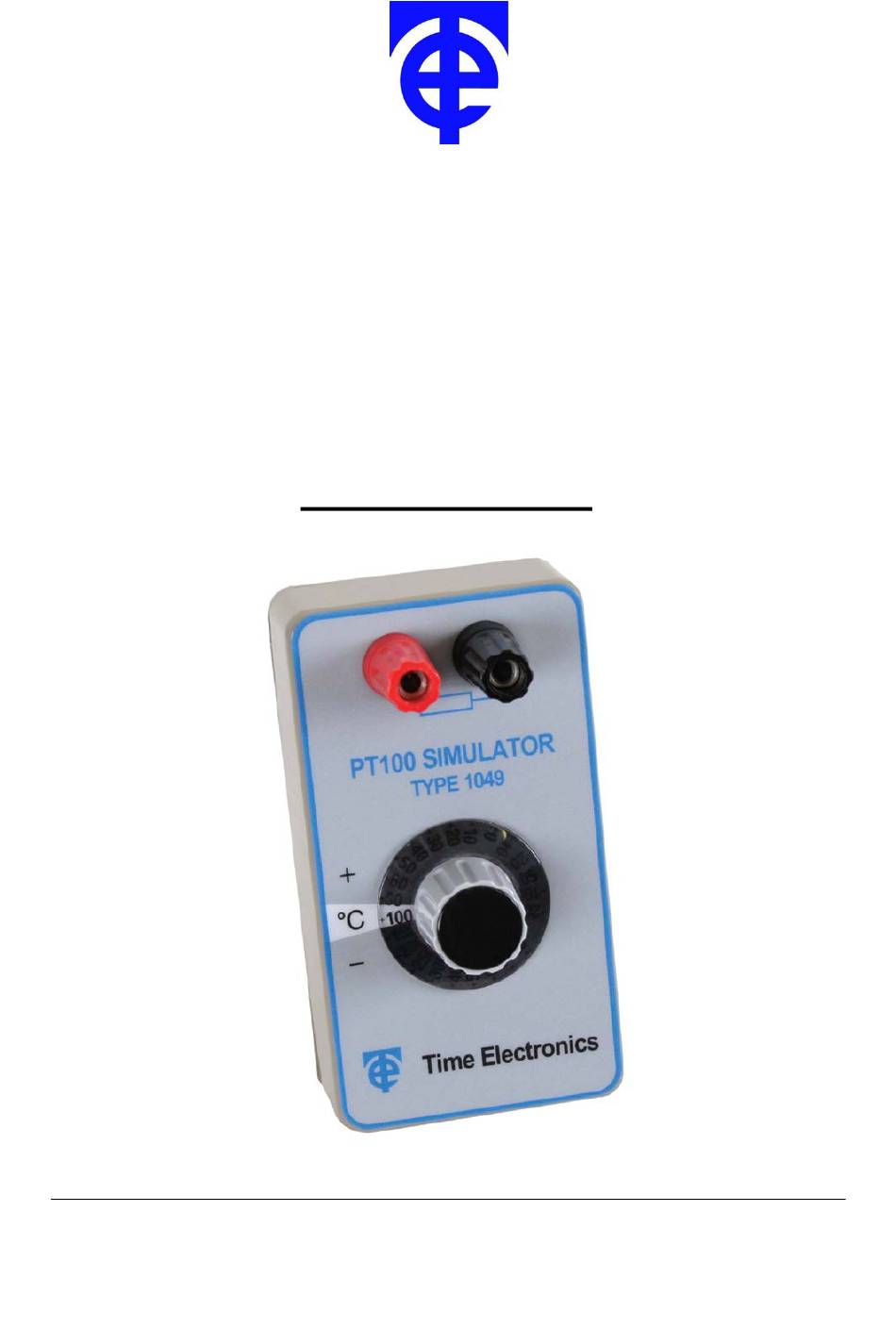

- Page 1 Time Electronics 1049 PT100 Element Simulator Technical Manual V1.1 04/09/11 Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 Email: mail@TimeElectronics.co.uk Web Site: www.TimeElectronics.com...
-
Page 2: Table Of Contents
Manuel Technique (Francais) ..................6 Technisches Handbuch (Deutsch)................10 Manual Técnico (Italiano) ................... 14 All Time Electronics' instruments are subject to continuous development and improvement and in consequence may incorporate minor detail changes from the information contained herein. 1049 Technical Manual... -
Page 3: Introduction
Offering high accuracy across the full operating range of PT100 devices it exceeds the performance of Class A & B. The 1049 will be of particular interest to those operating in the –60 to +60 °C range where a performance exceeding Class A (e.g. better than +/- 0.15°C at 0 °C), is required. -
Page 4: Specifications
Calibration Certificates – traceable to NPL and UKAS Order codes and Optional Extras Code Description 1049 Handheld PT100 °C Simulator (supplied with leatherette carry case) 9161 Factory (NPL Traceable) Calibration Certificate 9114 UKAS Calibration Certificate (ISO 17025) 1049 Technical Manual... -
Page 5: Operation And Controls
3. Operation and Controls Connection to the 1049 is via 4mm banana plugs. Two connections red and black connect to the simulated element. To select the temperature, rotate the dial until the temperature is displayed in the window. 23 set points selector switch Selects Output value of resistance. -
Page 6: Guarantee & Servicing
We maintain comprehensive after sales facilities and the unit can, if necessary be returned to us for servicing. During this period, Time Electronics Ltd will, at its discretion, repair or replace the defective items. For servicing under guarantee, the instrument type and serial number must always be quoted, together with details of any fault and the service required. -
Page 7: Manuel Technique (Francais)
Time Electronics SIMULATEUR D’ÉLÉMENTS 1049 PT100 Manuel Technique (Francais) Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 E-Mail: mail@TimeElectronics.co.uk Web Site: www.timeelectronics.com 1049 Technical Manual... - Page 8 +80 to +200°C ± 0.3°C +250 to +500°C +/- 0.5°C +600 to +800°C +/- 0.65°C Coefficient de précision : inférieur à 30 ppm par Courant maximum : 50 mA Dimensions : 61 x 112 x 55 mm Poids : 170 g 1049 Technical Manual...
- Page 9 FONCTIONNEMENT Le 1049 est un simulateur de précision des éléments des résistances en platine utilisés pour la mesure précise de la température. Il suit l’échelle PT100 de – 200 C à + 800 C avec 23 points de consigne. Des résistances de film métalliques de hautes performances sont utilisées dans l’ensemble de l’instrument.
- Page 10 ENTRETIEN APRÈS LA PÉRIODE DE GARANTIE Time Electronics Ltd peut réviser votre instrument même après que la période de garantie a expiré. À titre de fabriquant, nous avons les connaissances spécialisées nécessaires pour garder votre instrument en excellente condition et nous offrons également un service de...
-
Page 11: Technisches Handbuch (Deutsch)
Time Electronics 1049 TRAGBARER PT 100 SIMULATOR Technisches Handbuch (Deutsch) Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 E-Mail: mail@TimeElectronics.co.uk Web Site: www.timeelectronics.com 1049 Technical Manual... - Page 12 -50 to +60°C ± 0.15°C Genauigkeit: +80 to +200°C ± 0.3°C +250 to +500°C +/- 0.5°C +600 to +800°C +/- 0.65°C Temperaturkoeffizient: Weniger als 30 ppm pro°C. Maximaler Strom: 50 mA Dimensionen: 61 x 112 x 55 mm Gewicht: 170 g 1049 Technical Manual...
- Page 13 EINFUHRUNG Der 1049 ist ein Präzissionssimulator für PT100 Platinwiderstandselemente und wird für genaue Temperaturmessungen eingestetzt. Der Simulator folgt der PT100 Skala von -200°C bis + 800°C mit 23 Einstellungen. Es werden ausschließlick Metallfilmwiderstände benutzt, sodaß ein guter Temperaturkoeffzient und Langzeitstabilität gewährleistet sind.
- Page 14 Servicedetails und Unterlagen der Sendung beigefügt sind. Senden Sie das Gerät, Transportkosten bezahlt, an : Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 E-Mail: mail@TimeElectronics.co.uk Web Site: www.timeelectronics.com 1049 Technical Manual...
-
Page 15: Manual Técnico (Italiano)
Time Electronics SIMULATORE PER ELEMENTI PT100 1049 Manual Técnico (Italiano) Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 E-Mail: mail@TimeElectronics.co.uk Web Site: www.timeelectronics.com 1049 Technical Manual... - Page 16 +80 to +200°C ± 0.3°C +250 to +500°C +/- 0.5°C +600 to +800°C +/- 0.65°C Coefficiente di temperatura: inferiore a 30 ppm per °C. Corrente massima: 50 mA Dimensioni: 61 x 112 x 55 mm Peso: 170 g 1049 Technical Manual...
- Page 17 FUNZIONAMENTO Il simulatore di precisione 1049 per elementi resistenti al platino PT100 viene utilizzato per ottenere misurazioni accurate di temperatura. Il simulatore segue la scala PT100 che va da -200°C a +800°C con 23 valori impostati. Le resistenze a pellicola metallica ad elevato rendimento vengono utilizzate per ottenere un buon coefficiente di temperatura ed un’elevata stabilità...
- Page 18 ASSISTENZA TECNICA POST-GARANZIA Al termine del periodo di validità della garanzia, Time Electronics Ltd. Sarà pur sempre in grado di offrire un eccellente servizio di assistenza tecnica. Come casa produttrice, disponiamo della conoscenza specialistica necessaria a mantenere il vostro strumento in condizioni di funzionamento perfette.
