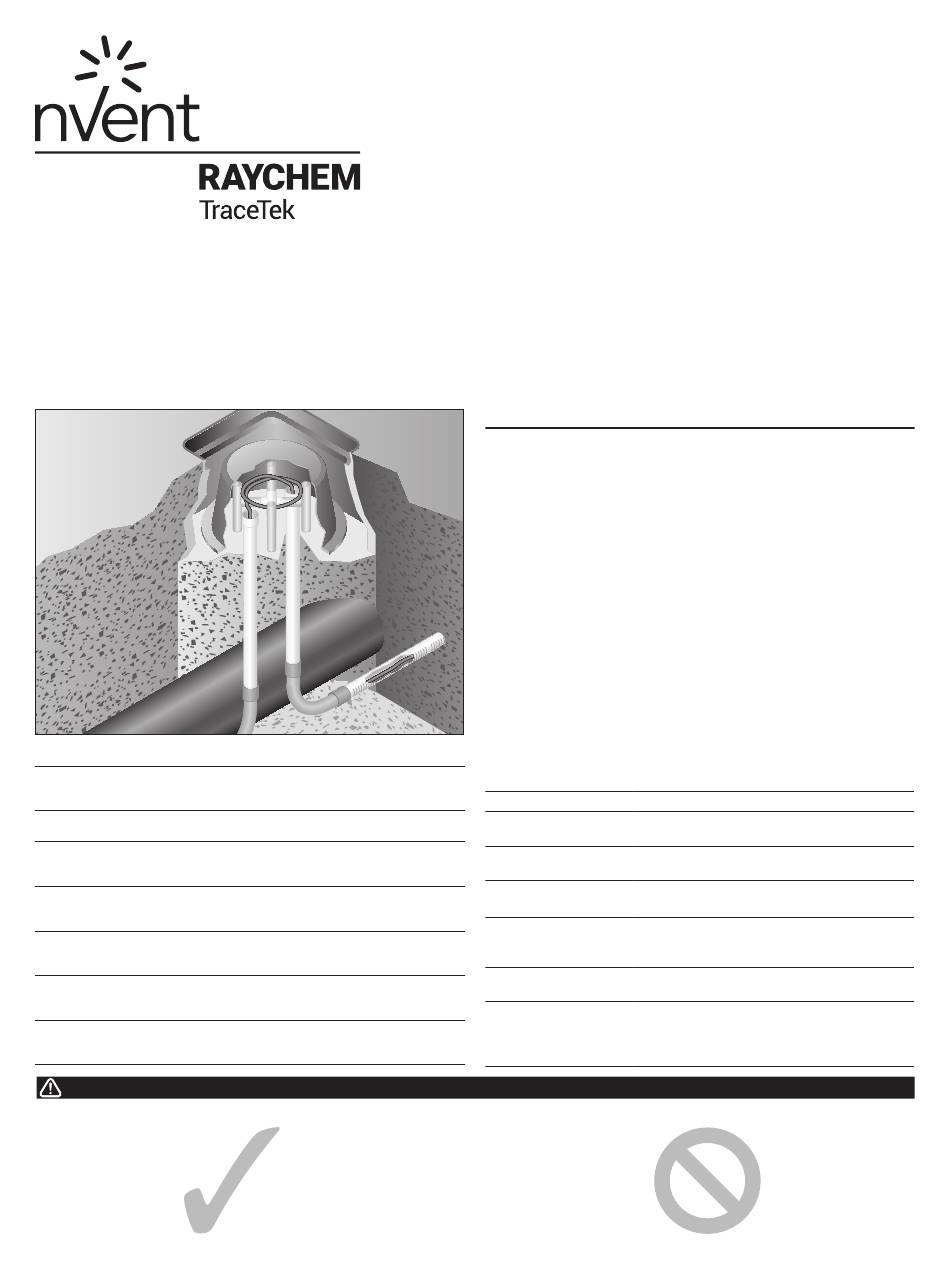

TT5000-HS
TraceTek Sensing Cable for Underground Leak Detection
Installation Instructions
TOOLS REQUIRED
nVent RAYCHEM TraceTek
Portable Test Box, battery powered instrument
TT-PTB-1000
specifically designed for testing and trouble
(part # 486437-000)
shooting TraceTek systems
Ohmmeter
Can be used as an alternative and supplement to
(>20 M ohm)
the PTB 1000
nVent RAYCHEM TraceTek
Used to simulate leaks at connector points during
TT-MAPPING CAP-MC
commissioning and mapping process
(part # P000000871)
Extran Vent RAYCHEM
Leader cable. Used with the ohmmeter to make
TraceTek TT-MLC-MC-BLK
connections to the sensor cable for resistance
(part # 133332-000)
measurements
Extra TT-MET-MC
End termination. Used during installation or trouble
(part # 571293-000)
shooting to temporarily isolate a sub-section of
sensor cable for resistance measurements.
Large Kellems Grip used in cable pulling when rope
nVent RAYCHEM TraceTek
TT-Kellems-Grip-Large
overbraid loop not available.
(part # P000001291)
nVent RAYCHEM TraceTek
Flameless heating tool (Ultratorch 200) or suitable
TT-ULTRA-TORCH
heat gun with concentrator tip
(part # 390067-000)
GENERAL NOTES: DO'S AND DON'TS:
DO:
• Store the cable in its original container in a clean, dry area until ready to install.
• Schedule the sensor cable installation as late as possible in the construction
schedule to avoid risk of damage or contamination by other contractors or
construction tasks.
• Remove cable from the pipe if any thread cutting, welding, soldering or similar pipe
fitting work will be performed.
TT5001-HS
(for fuel leaks)
DESCRIPTION
These instructions explain the proper procedures for installing and testing
nVent RAYCHEM TraceTek TT500X-HS sensing cables. (TT500X-HS refers
to either TT5000-HS or TT5001-HS). TT500X-HS sensing cables are primarily
intended for use in underground (fuel or solvent) pipeline applications. TT500X-
HS sensing cables ignore water but will detect and locate (fuel or solvent) spills
and leaks. (See the data sheet for specific performance characteristics.)
Important Notes
When used to monitor underground fuel pipelines, TT500X-HS sensing cables
are typically installed within slotted conduit that is routed alongside the main
pipeline. TT500X-HS sensing cable is designed for use within slotted PVC
conduit and is constructed with an outer layer of polyethylene fibers to provide
extra pulling strength and low friction during the installation process. The
sensor cable core is standard TT5000 (for fuel) or TT5001 (for solvent) with
well documented response times, numerous third party qualifications and years
of successful applications.
• TT5000-HS sensing cable is identified by the all white color of the outer jacket.
• TT5001-HS sensing cable is identified by a purple TRACER in the white
outer jacket.
REQUIRED MATERIALS
Conduit cleaning tool
Conduit end caps
Heat shrink tubing
segments
OPTIONAL MATERIALS
nVent RAYCHEM TraceTek
TT-MBC-MC-TW
(part # P000001206)
nVent RAYCHEM TraceTek
TT-MJC-XX-MC-BLK
nVent RAYCHEM TraceTek
TT5000–HUV–CK–
MC–M/F
(part # P000001207)
DON'T:
• Drag the cable through water, paint, solvents, oil or other contaminants.
• Install damaged or contaminated sensing cable.
• Exceed the maximum pulling force of 100 kg (220 lb).
• Use the cable as a rope for lifting or securing any object.
• Allow tools or heavy objects to fall on cable.
• Exceed 3300 ft (1000 m) of individual sensor cable circuit length when using a SIM
alarm module.
• Test the cable with fuel. • Use tie wrap or wire to secure the cable.
(for solvent leaks)
Used in proofing installed sections of conduit.
Used to cover exposed conduit end to maintain
conduit cleanliness.
Used as environmental seal over all mated male/
female (pin/socket) connections
Branch connector designed for rugged outdoor
applications used to connect and branch "T" lines
Jumper cable is available in various pre-cut and
terminated lengths
Connector kit used during field connection of
TT500X-HS bulk cable

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRACETEK TT5000-HS and is the answer not in the manual?

Questions and answers

Summary of Contents for Raychem TRACETEK TT5000-HS

  • Page 1 DESCRIPTION These instructions explain the proper procedures for installing and testing nVent RAYCHEM TraceTek TT500X-HS sensing cables. (TT500X-HS refers to either TT5000-HS or TT5001-HS). TT500X-HS sensing cables are primarily intended for use in underground (fuel or solvent) pipeline applications. TT500X- HS sensing cables ignore water but will detect and locate (fuel or solvent) spills and leaks.
  • Page 2: Installation

    Installation Prepare the conduit and pull rope. Conduit Cleaning: • Verify that major construction is complete. • Even if the conduit was proofed with a conduit cleaning tool during the conduit installation process, it is • Verify conduit and pull rope has been installed recommended to clean and check clearance of the properly.
  • Page 3 Install sensing cable in accordance with the leak detection Attach the Kellems grip (if necessary): layout plan. • For TT500X-HS bulk cable, you may need to use a Kellems grip to perform the cable pull when the rope Planning the cable pull: overbraid loop is not available.
  • Page 4 Pulling the cable: person feeding the cable into the conduit needs to provide continual slack to reduce stress on the cable. The person • TT500X-HS sensing cable is sensitive to pressure from feeding the cable must be able to communicate problems such things as pinches or tight corners.
  • Page 5 • Grasp the sealed end and pull about 12 inches (30 cm) of Prior to installing a new length of sensor cable, slide the sensor cable out while holding the rope braid in place. unlabeled shrink tube (from connector kit) onto the cable. Connect the sensing cable to the cable circuit (lengths of •...
  • Page 6 Take precautions if installation is incomplete at end of work day. At the end of the work day: Modular leader cable • Ensure that there are no exposed connectors. Each sensing cable should be connected to a Modular Modular end Leader Cable (TT-MLC-MC), Modular End Termination termination (TT-MET-MC), and/or other sensing cables;...
  • Page 7 Sensing Cable Test Procedure Method with nVent RAYCHEM TraceTek Portable Test Box End termination (TT-PTB-1000) 1. Ensure the end termination is connected to the sensing cable. If checking several lengths of sensing cable in series (a cable string), ensure they are all connected.
  • Page 8 Complete System Connections and Layout A. TT500X-HS is available in bulkform, cut to length in the field E. (Optional) Install jumper cables (TT-MJC-xx-MC-BLK) as and joined using connector kits–or it can be obtained in needed if they are to connect sensing cable sections in standard or custom cut lengths with connectors attached in separate areas.
  • Page 9: System Normal

    – On TTSIM-1, Normal Condition is indicated by a green LED and a momentary flash of the RED LED every 5 seconds. – On nVent RAYCHEM TraceTek TTDM-128 the alpha-numeric display will indicate a channel number and display the words SYSTEM NORMAL.
  • Page 10 Troubleshooting Symptom Possible Cause and Correction Green LED not visible on System is not powered. Check power wiring. Check circuit breakers that may have been tripped. TraceTek instrument On TTDM-128 check fuse and replace if necessary. Leak alarm This is an indication of a LEAK event. (TTDM-128 message and red LED) For leak locating modules (TTDM-128): Using leak distance indication and System Map as a guide, (TTSIM-1 Red LED ON)
