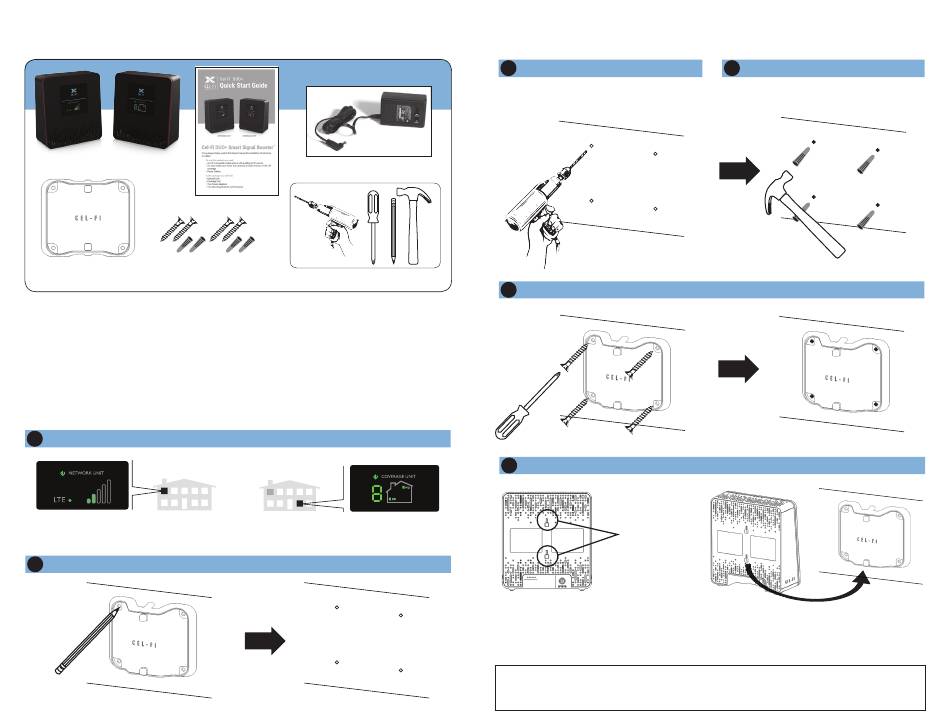

Mounting Instructions

Network Unit Coverage Unit
Quick Start Guide
Mounting Screws (4)
Drywall Anchors (4)
Brackets (2)
Each Cel-Fi device may be supplied with mounting brackets and hardware to
mount both (or either) the Coverage Unit and the Network Unit.
NOTE: The brackets come equipped with screws and inserts for mounting in
standard drywall. Before you install the mounts, make sure there are no wires
or other objects, or metal plates, behind the drywall layer that will interfere with
the inserts, screws, mount, or mounted units.
1
Determine Cel-Fi Device Location (refer to other side)
NETWORK UNIT
USER INTERFACE
2
Determine Mounting Hole Locations
CONTENTS IN THE BOX
Power Adapters (2)
REQUIRED HARDWARE
COVERAGE UNIT
USER INTERFACE
3
Drill Anchor Holes (Drywall)
In each marked spot, use a 3/16" drill bit to drill guide holes for the anchors.
5
Install Mounting Bracket
6
Attach the Cel-Fi Unit to the wall mounted bracket
MOUNTING
HOLES
Figure 1
Back view with mounting holes.
IMPORTANT: Your Cel-Fi DUO+ Smart Signal Booster is electronic equipment.
Both units must be kept indoors and in a dry, cool, well ventilated area.
4
Install Anchors (Drywall)
Figure 2
Backside of unit fits onto bracket hooks.
