- Page 1 SM-5016 Operation manual UHF Belt-pack Transmitter CHIAYO ELECTRONICS CO.,LTD.

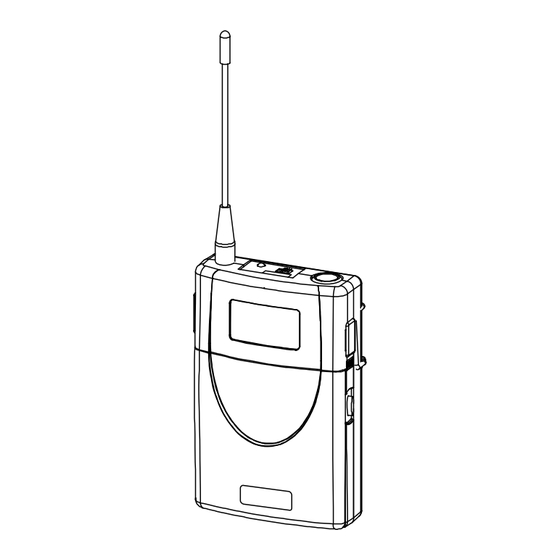

- Page 2 SM-5016 UHF Belt-pack Transmitter Parts and functions 1. Antenna 2. Battery weak/audio mute indicator 3. Audio mute switch 4. Audio input connector (mini XLR) 5. LCD 6. Charging port 7. Cover release button 8. Power button 9. High-impedance gain control (GT) 10.
- Page 3 Instructions Channel setting Use UP▲ / DOWN▼ button to go to the Press and hold the SET button for 2 seconds, then the upper-right channel CHANNEL｜FREQUENCY page. number will flash to allow changes to be made. Press UP▲ / DOWN▼ buttons to change After selecting a channel, press and hold the SET button for 2 seconds or wait 9 the channel number.
- Page 4 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan...
