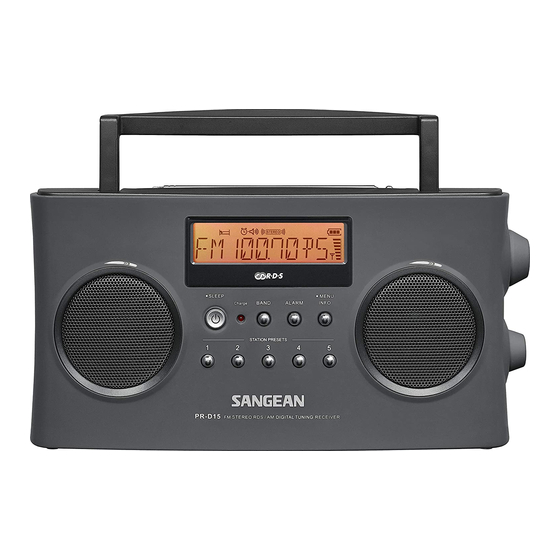

Sangean PR-D15 Manual
  1. Manuals
  2. Brands
  3. Sangean Manuals
  4. Portable Radio
  5. PR-D15
  6. Manual

Sangean PR-D15 Manual

Hide thumbs Also See for PR-D15:
Table of Contents

Advertisement

Quick Links

PR-D15
GB
Revision 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-D15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sangean PR-D15

Summary of Contents for Sangean PR-D15

  • Page 1 PR-D15 Revision 1...

  • Page 2: Important Safety Instructions

    Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.
  • Page 4 Excessive sound pressure on ear- and headphones could impair the hearing ability. Higher setting that idle on the equalizer leads to higher signal voltages on the output for ear and headphones. The power plug should be close to the radio, and easy to be approached that during the emergency, to disconnect the power from the radio, just unplug the power plug from the AC power slot.

  • Page 6: Lcd Display

    Controls Speaker LCD display Power / Sleep button Charging LED indicator Band button Alarm button Menu / Info button Tuning / Auto seek / Select / Fine tune knob Volume / tone control Preset buttons Antenna Battery compartment FM stereo / mono switch AUX in socket Earphone socket DC input socket...

  • Page 7: Battery Operation Using Alkaline Batteries

    Battery operation using alkaline batteries . Remove the battery cover on the back of the unit . 2. Slide the switch inside the battery compartment to the Alkaline position. 3. Insert 6 LR14 (C size) alkaline batteries into the spaces in the compartment.
  • Page 8 ● If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. ● We would recommend for economy that the unit is used via the AC adaptor whenever possible with battery operation for occasional or stand-by use only.

  • Page 9: Battery Operation Using Rechargeable Batteries

    Battery operation using rechargeable batteries . Remove the battery cover on the back of the unit . 2. Slide the switch inside the battery compartment to the NiMH position. 3. Insert 6 Rechargeable LR14 (C size) batteries into the spaces in the compartment.
  • Page 10 Important: when using rechargeable batteries the battery switch must be placed in the NiMH position. Batteries will only be charged when the radio is switched off and connected to the AC adaptor. ● When the batteries are exhausted, you can tell from the battery life indicator on the top right corner of the display.

  • Page 11: Manual Clock Setting

    Manual Clock setting . Clock can be set with the radio power on or off. 2. Press and hold the Menu/ Info button for more than 2 seconds. 3. Rotate the Tuning knob until “CLOCK SET” shown on the display. Press the Tuning knob to enter the setting.

  • Page 12: Auto Clock Setting

    Auto clock setting a. Radio data system (RDS) When you set the clock time using the RDS function, your radio will synchronize its clock time whenever it tunes to a radio station using RDS with CT signals. . When tuning to a station transmitting RDS data, press and hold the Menu button.
  • Page 13 b. Manual (if your don’t want to synchronize clock time with (RDS CT) When choosing manual setting as the clock time setting of your radio, Radio Data System (RDS) function will both be disabled. . Press and hold the Menu button. 2.

  • Page 14: Date Setting

    Date setting . Press and hold the Menu button to enter the setting. 2. Rotate the Tuning control knob until ‘DATE SET’ is highlighted on the display. Press the Tuning control knob to enter the setting. 3. Rotate the Tuning control knob to select the desired year and press the knob to confirm the setting.

  • Page 15: Operating The Radio

    Operating the radio Tuning the radio . Press the Power button to turn on the radio. 2. Select the required waveband by pressing the Band button. There are 3 bands which are FM, AM and AUX-IN. 3. Rotate the Tuning knob to the desired frequency, shown in the display.

  • Page 16: Storing Station Presets

    Storing station presets There are 5 memory presets for each waveband – STATION PRESETS  to 5. . Press the Power button to turn on the radio. 2. Tune to required station using one of the methods previously described. 3. Press and hold the required preset until the radio beeps. The preset number will appear in the display (such as: P2) and the station will be stored under chosen preset button.

  • Page 17: Setting Up The Tuning Step Increment

    Setting up the tuning step increment . Press and hold the Menu button to enter the setting. 2. Rotate the Tuning control knob until FM xxkHz or AM xxkHz appears on the display, and press the knob to enter the step increment setting.

  • Page 18: Display Modes - Fm

    Display modes-FM Your radio has a range of display options for FM radio mode. . Repeatedly press and release the Info button to view the RDS information of the station you are listening to. a. Station name Displays the name of the station being listened to.

  • Page 19: Alarm Setting

    Alarm setting There are two alarms which can each be set to wake you to AM/FM radio or buzzer alarm. The alarms may be set while the unit is in standby mode or while playing. Ensure that the time is set correctly before setting the alarms.
  • Page 20 4. Rotate the Tuning control knob to choose the required alarm type, and then press the Tuning control knob to confirm the setting. The alarm can be set to FM, AM or Buzzer.. When radio type is selected, the radio frequency on the display will begin to flash. Rotate the Tuning control knob to adjust the required radio frequency or press the corresponding preset button as desired for the radio alarm, then press the Tuning control knob to confirm the setting.

  • Page 21: When The Alarm Sounds

    When the alarm sounds When the buzzer alarm activates, the alarm will start softly and gradually increase in level. It will sound for  minute and silence for  minute in repetition for 60 minutes unless cancelled. When the other alarm types are set, the radio will sound non-stop at the selected time for up to 60 minutes.

  • Page 22: Sleep Function

    Sleep function The sleep timer switches off the radio after a preset time has elapsed. . Press and continue to hold down the Power button for more than 2 seconds, followed by beep tone, the display will cycle through the available sleep times in the order 60-45-30-5-20-90-60. Release the Power button when the required sleep time appears on the display.

  • Page 23: Software Version

    Loudness You can get compensation on lower and higher frequency for your radio by adjusting the Loudness function. . Press and hold the Menu button to enter the menu setting. 2. Rotate the Tuning control knob until ‘LOUD ON or OFF’ appears on the display.

  • Page 24: Headphone Socket

    Headphone socket A 3.5mm headphone socket located on the left-hand side of your radio. That is to provide for either headphones or an earpiece. Inserting a plug automatically mutes the internal speaker. Factory reset If your radio fails to operate correctly, or some digits on the display are missing/incomplete or you simply just want to restore to original factory setting, carry out the following procedure.

  • Page 25: Specifications

    Specifications Power Requirements Power adaptor DC 12V 700mA center pin positive (USA) AC 12V 600mA (Europe) Batteries 6 X UM-2 (C size) Battery Life Approx. 70 hours of listening for 4 hours A day at normal volume using alkaline cells Frequency Coverage FM 87.50 –...
  • Page 26 The company reserves the right to amend the specification without notice. If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
