Please read this manual
before using
Thank you for purchasing a MUTOH product.
This manual explains the steps for unpacking,
mounting and basic installation before using the
MUTOH Full-color inkjet printer VJ-1626UH.
This manual is intended for owners, installers, and
users of this product.
Understand the contents and instructions in this
manual before installing this product.

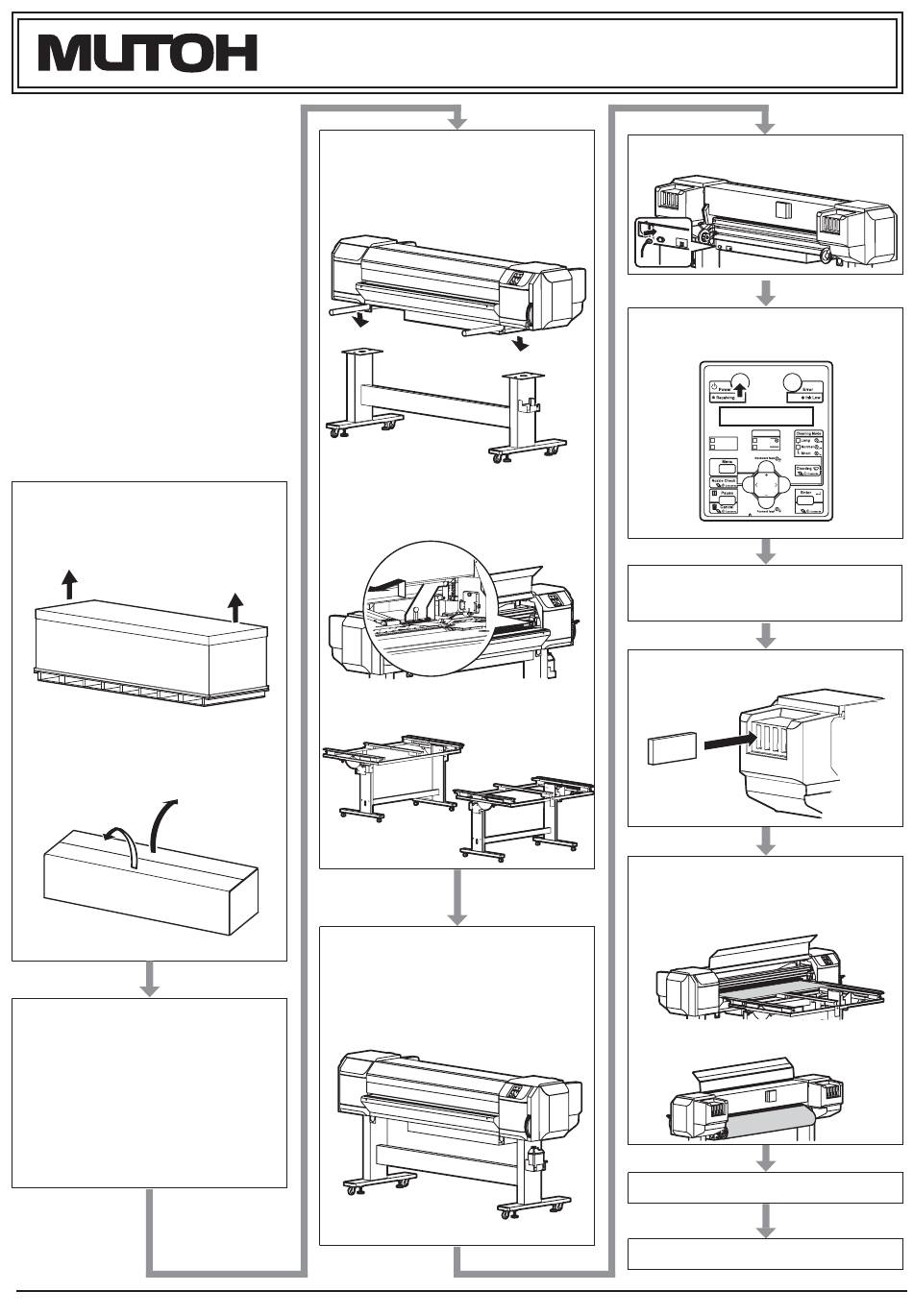

Installation flow chart
The broad steps for installation are shown below.
There are instructions for each section beginning on
the next page.
1 Unpacking boxes
1.1 Unpacking the printer box
1.2 Unpacking the stand box and
the Media-feed table F and R
boxes
2 Confirming bundled items
2.1 Items in the printer box
2.2 Items in the accessory box
2.3 Items in the stand box
2.4 Items in the Media-feed
table (optional) box
VJ-1626UH INSTALLATION MANUAL
3 Assembling
3.1 Assembling the stand
3.2 Attaching the stand
3.3 Detaching fastening materials
3.5 Assembling the Media-feed table
(optional)
4 Installation
4.1 Installation environment
4.2 Installation procedure
1
5 Connecting the power cable
6 Turning the power ON/OFF
Media Type
Roll
Heater Link
Origin
Rigid
Long Feed
7 Product activation
8 Initial ink filling
9 Loading media
9.1 Loading rigid media
9.2 Loading roll media
10 Checking the printing condition
11 Manual composition
VJ1626UHE-I-00
Advertisement
Table of Contents
Related Manuals for Muton VJ-1626UH
Summary of Contents for Muton VJ-1626UH
-
Page 1: Installation Flow Chart
This manual explains the steps for unpacking, 3.2 Attaching the stand mounting and basic installation before using the MUTOH Full-color inkjet printer VJ-1626UH. This manual is intended for owners, installers, and users of this product. Understand the contents and instructions in this manual before installing this product. -
Page 2: Items In The Stand Box
VJ-1626UH INSTALLATION MANUAL 1 Unpacking boxes 2 Confirming bundled items 2.3 Items in the stand box Procedures for unpacking boxes are explained. After unpacking, please confirm that the product has not damaged and no components are missing. This printer package consists of four boxes: Main... -
Page 3: Assembling The Stand
VJ-1626UH INSTALLATION MANUAL 3 Assembling 4. Fasten the connector bar to the left stand in the 3. Remove the two transfer stays and fasten the same way as in Step 3. printer to the stand using eight butterfly screws. This section explains how to assemble the printer. -
Page 4: Installation Environment
VJ-1626UH INSTALLATION MANUAL 3.4 Assembling the Media-feed 5.Use the lug screw to fix Stopper on Frame 4 Installation table (optional) Install Stopper on the side of rail retaining screw. Procedures and environment for installing this product Install Stopper so that the curved part matches are explained. -
Page 5: Installation Procedure
VJ-1626UH INSTALLATION MANUAL 4.2.2 Installing the Media-feed tables 4. Insert the positioning guide of Media-feed table (1) When using the Media-feed table into the square hole of Paper guide R. (optional) If the height of the positioning guide does not... -
Page 6: Power Cable Connection
VJ-1626UH INSTALLATION MANUAL 5 Power cable connection 8. Turn the screw of Media-feed table's caster (the 4. Turn the screws of Media-feed table's caster (2 one further from the printer) with a spanner, and places, closer to the printer) with a spanner so that adjust the slant. -
Page 7: Turning The Power On/Off
VJ-1626UH INSTALLATION MANUAL 6 Turning the power ON/OFF 6.2 Set sleep mode on the printer 3. Insert the power cable plug firmly in the socket. 1. Make sure that the printer's operating condition is WARNING as follows: This section explains how to turn the printer Do not pull out or insert the power plug with •... -
Page 8: Initial Ink Filling
VJ-1626UH INSTALLATION MANUAL 10.Use the [+] or [-] key on Operation panel to select 5. Use the [+] or [-] key on Operation panel to select the head Initial ink filling "Sleep Mode3: Start". cleaning interval. Follow the procedure below to perform initial ink filling. - Page 9 VJ-1626UH INSTALLATION MANUAL 10. Prepare ink cartridges. You can check the ink color labels for ink colors 5. Press the [Enter] key on Operation panel. and its cartridge slots. The number of ink cartridges or Cleaning cartridges to be used differs depending on the number of Keep the arrow of ink cartridge facing up and colors selected in step 3.
-
Page 10: Setting Media
VJ-1626UH INSTALLATION MANUAL If the right edge of the roll media goes further Loosen the rail retaining screw on Media-feed 9 Setting media table (rear side), and widen the rails to the sides so right from the loading mark when seen from the that you can place the rigid media. -
Page 11: Loading Roll Media
VJ-1626UH INSTALLATION MANUAL 13. Press down the [-] key on Operation panel for a 9.2 Loading roll media 5. Loosen the fixing levers of the right and left roll while, and check that the rigid media can be fed media holders, move the roll media to the center no problem. - Page 12 VJ-1626UH INSTALLATION MANUAL Close the front cover. 3. Raise Front media loading lever (lower Rear media NOTE loading lever). When setting the roll media, set both sides of the media at least 5 mm away from the edge of the pressurizing roller.
-
Page 13: Manual Composition
VJ-1626UH INSTALLATION MANUAL 5. Check the sample print for blurred or missing parts in the check pattern. Press and hold the [Cleaning] key on the operation panel for two seconds or more. Media Type Heater Link Roll Origin Rigid Long Feed "Cleaning **%"... - Page 14 VJ-1626UH INSTALLATION MANUAL MEMO VJ1626UHE-I-00...
- Page 15 VJ-1626UH INSTALLATION MANUAL MEMO VJ1626UHE-I-00...
