INSTALLATION

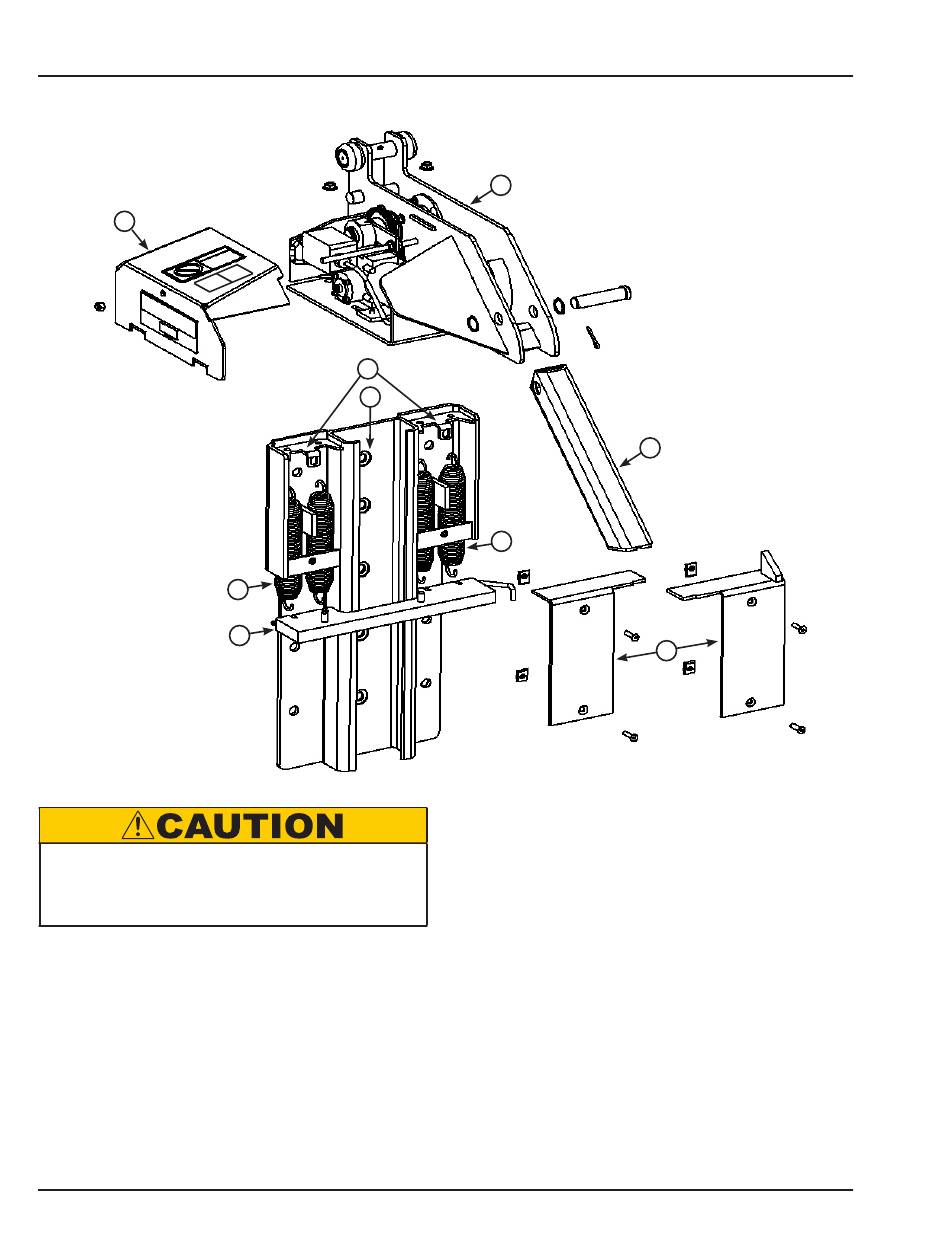

Carriage Installation
D
Do not attempt to lift the carriage assembly by
hand! Use a lifting device (e.g. crane, jack) when
lifting the carriage (approx. 110 lbs.).
1. Attach the four (4) springs (A) to the lower spring
bar (B).
2. Pull springs (A) upward and slide over top spring
mounts (C) on the track roller plate.
3. Remove motor cover (D).
4. Slide the carriage assembly (E) into the roller track
(F), position and bolt the lower spring bar (B) to the
bottom of the UniLock carriage.
16
C
F
A
B
Figure 10
E
A
5. Install right and left spring covers (G) with clip nuts
and flat head screws provided.
6. Install the motor cover (D).
7. Install slope extension (H).
H
E
4111-0072 — Dec. 2018
© 2018 Systems, LLC
