Installation Overview

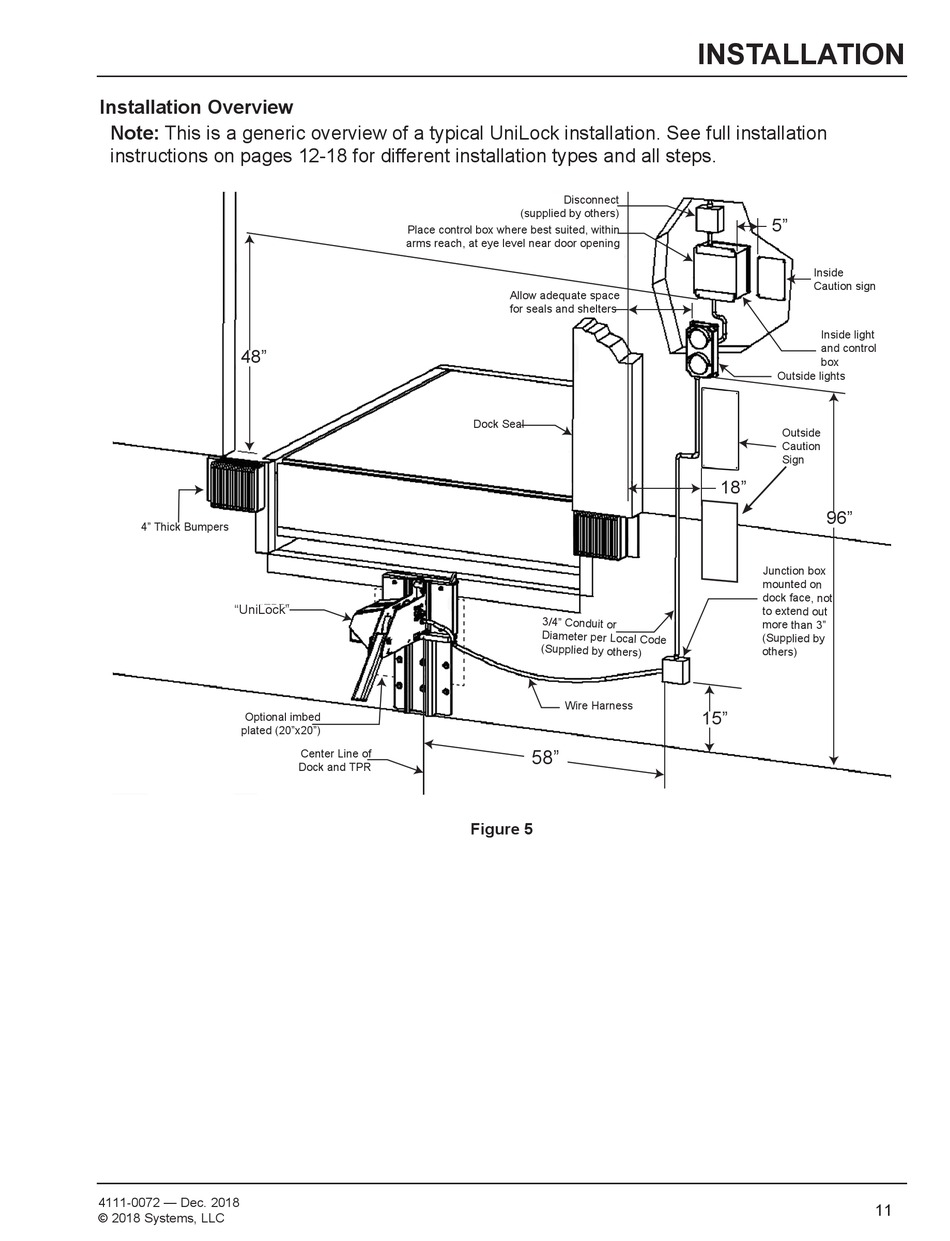

Note: This is a generic overview of a typical UniLock installation. See full installation
instructions on pages 12-18 for different installation types and all steps.
48"
4" Thick Bumpers
"UniLock"
"TPR"
Optional imbed
plated (20"x20")
4111-0072 — Dec. 2018
© 2018 Systems, LLC
Place control box where best suited, within
arms reach, at eye level near door opening
Dock Seal
Center Line of
Dock and TPR
Figure 5
Disconnect
(supplied by others)
Allow adequate space
for seals and shelters
Wire Harness
58" 55"
INSTALLATION
5"
Inside
Caution sign
Inside light
and control
box
Outside lights
Outside
Caution
Sign
18"
96"
15"
11
