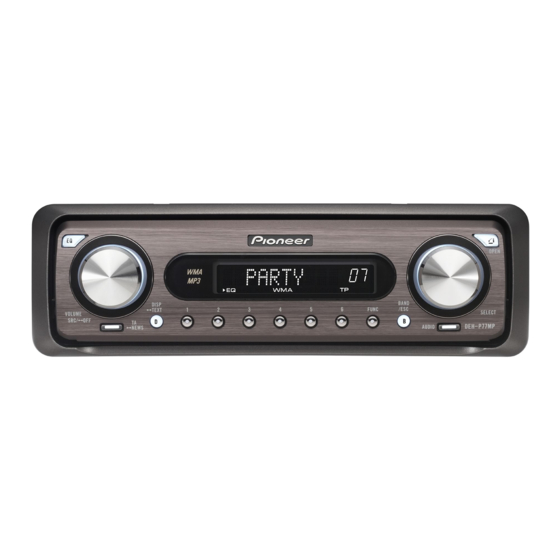

Pioneer DEH-P77MP Operation Manual

40mhz to 3.8ghz rf power detector with 75db dynamic range
Hide thumbs Also See for DEH-P77MP:
Table of Contents

Advertisement

Available languages

Available languages

Operation Manual
Manual de instrucciones
Multi-CD/DAB control High power CD/MP3/WMA
player with RDS tuner
Reproductor de CD/MP3/WMA de alta potencia con
sintonizador RDS y control de CD múltiple/DAB
DEH-P77MP
All manuals and user guides at all-guides.com
