Denon DRA-F107 Service Manual

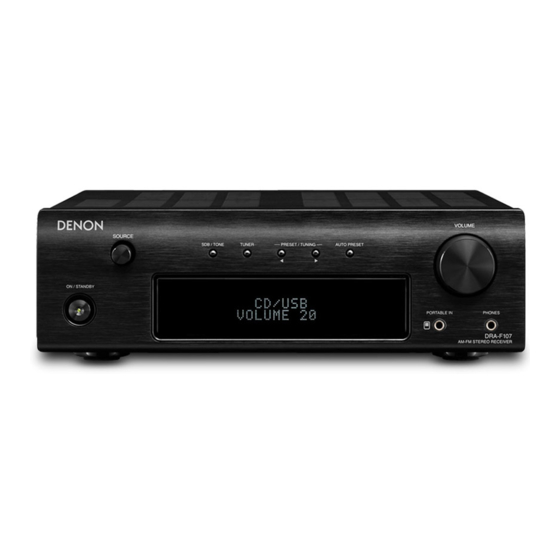

Am-fm stereo receiver
Hide thumbs Also See for DRA-F107:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Ver. 5
Please refer to the
MODIFICATION NOTICE.

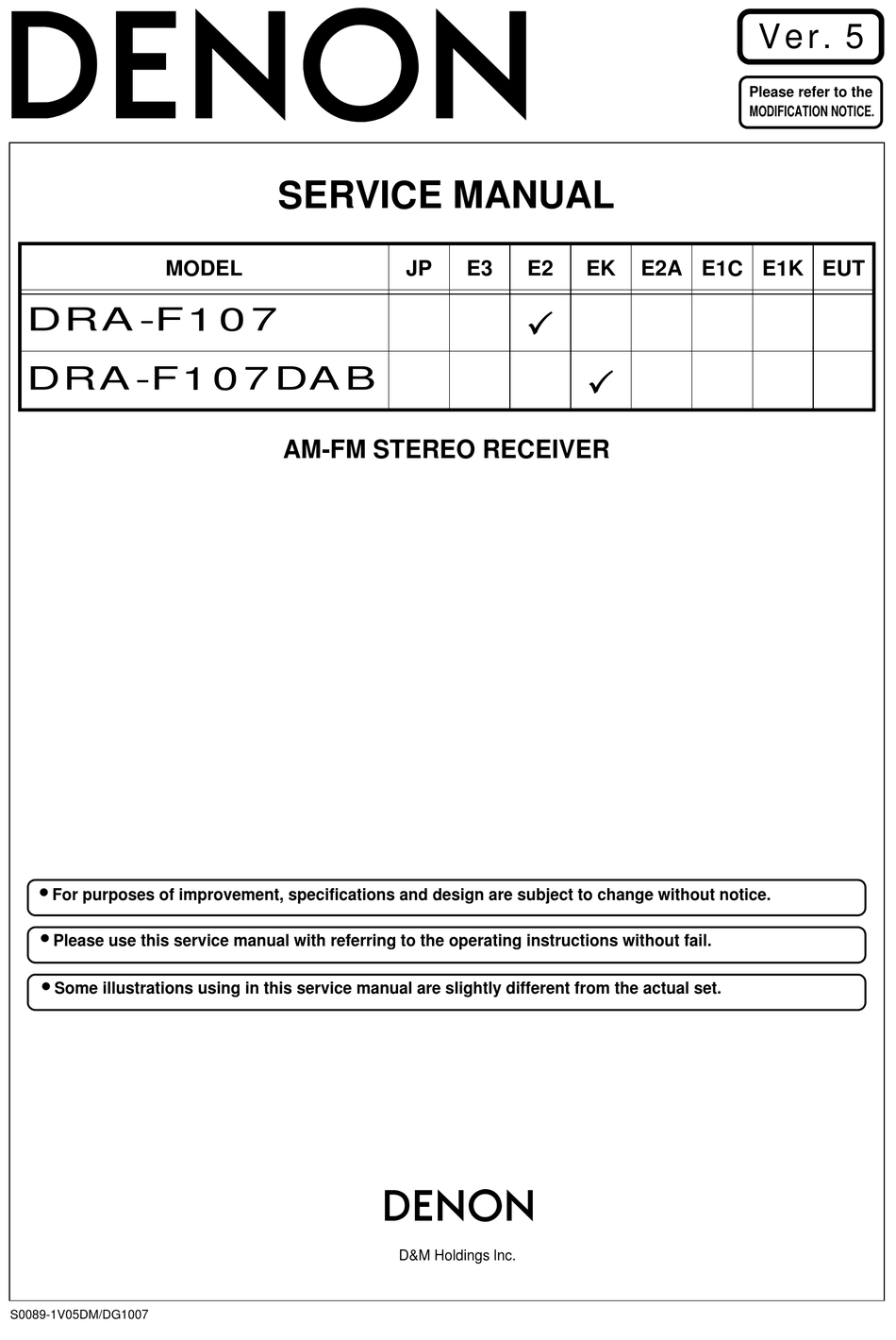

SERVICE MANUAL

MODEL
JP
E3
E2
EK
E2A E1C E1K EUT
DRA-F107
DRA-F107DAB
AM-FM STEREO RECEIVER
●
For purposes of improvement, specifications and design are subject to change without notice.
●
Please use this service manual with referring to the operating instructions without fail.
●
Some illustrations using in this service manual are slightly different from the actual set.
e
D&M Holdings lnc.
S0089-1V05DM/DG1007
