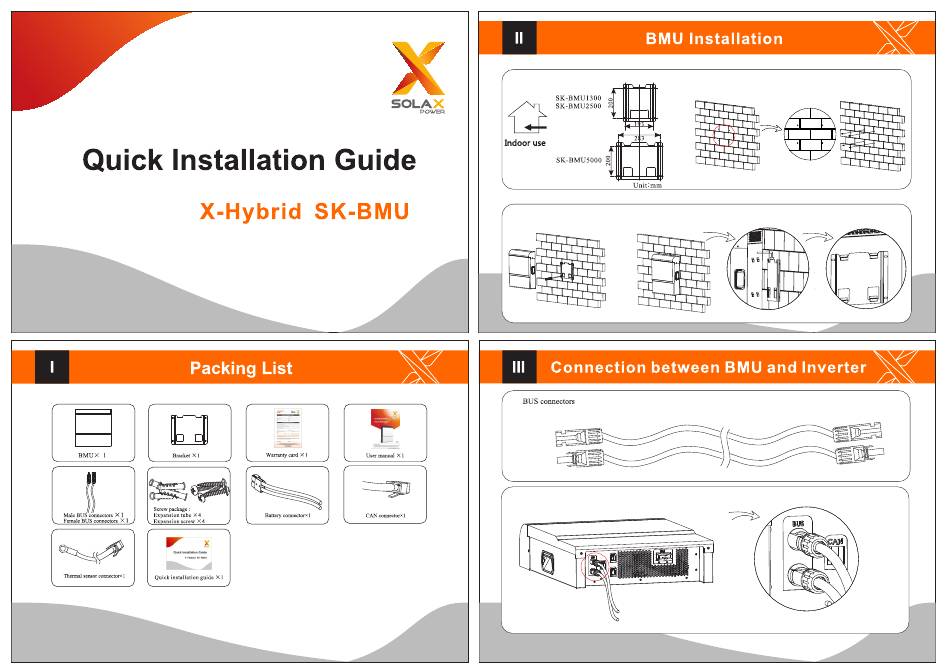

-Mark the position of the 4 holes
-Drill holes with φ6 drill
-Depth：at least 50mm.
-Screw the expansion screws.
-Match the BMU with the bracket.
-Connect BUS connector to BUS port on the BMU.
-Connect the other side to BUS port on the inverter.
-Tighten the expansion tubes.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SolaX Power X-Hybrid SK-BMU
Summary of Contents for SolaX Power X-Hybrid SK-BMU
- Page 1 -Mark the position of the 4 holes -Drill holes with φ6 drill -Tighten the expansion tubes. -Depth：at least 50mm. -Screw the expansion screws. -Match the BMU with the bracket. -Connect BUS connector to BUS port on the BMU. -Connect the other side to BUS port on the inverter.
- Page 2 -Insert RJ45 side of CAN connector into CAN port -Insert the other side into CAN port on the BMU. - Insert RJ45 side of thermal sensor connection cable into on the inverter. the TEMP port on the inverter . - Connect the other side of thermal sensor with the negative power pole on the battery.
