Fluke 709 Quick Reference Manual

Quick Reference Guide
Guía de referencia rápida
Guia de referência rápida

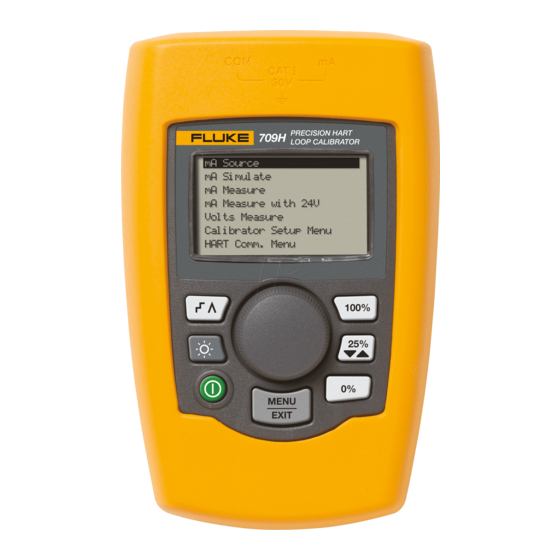

709/709H/710
Precision Loop Calibrator
W
Go to www.fluke.com to register your Product, read the
Users Manual and find more information.
Vaya a www.fluke.com para registrar el producto,
descargar manuales y obtener más información.
Acesse www.fluke.com.br para registrar seu Produto,
ler o Manual do Usuário e obter mais informações.
XW Warning
To prevent possible electrical shock, fire, or personal
injury, read the 709/709H Safety Information before
you use this Product.
MENU
PN 4255201 January 2013 Rev. 1, 10/18
©2013-2018 Fluke Corporation. All rights reserved.
mA Source
4 mA to 20 mA
Input Device,
4 mA to 20 mA
Recorder/Indicator, etc.
mA Simulate
Power Supply
30 V dc Max
4 mA to 20 mA
4 mA to 20 mA
Input Device
mA Measure
4 mA to 20 mA
4 mA to 20 mA
Output Device
mA Measure with 709H Loop Power
Volt Measure
Voltage
Output Device
