Manual Tele-Frame System (MTF) Underside-Mount Application

1) Mark the hole locations for he mounting clamps (Figs 1 – 3)

4) Secure the mid crossbar in place (Fig 4)

5) Secure the roller assembly in place (Fig 5-10)

6) Secure the outer crossbar in place (Fig 11-13)

Mark the hole locations for the mounting clamps, position and secure mounting clamps and

actuators into place

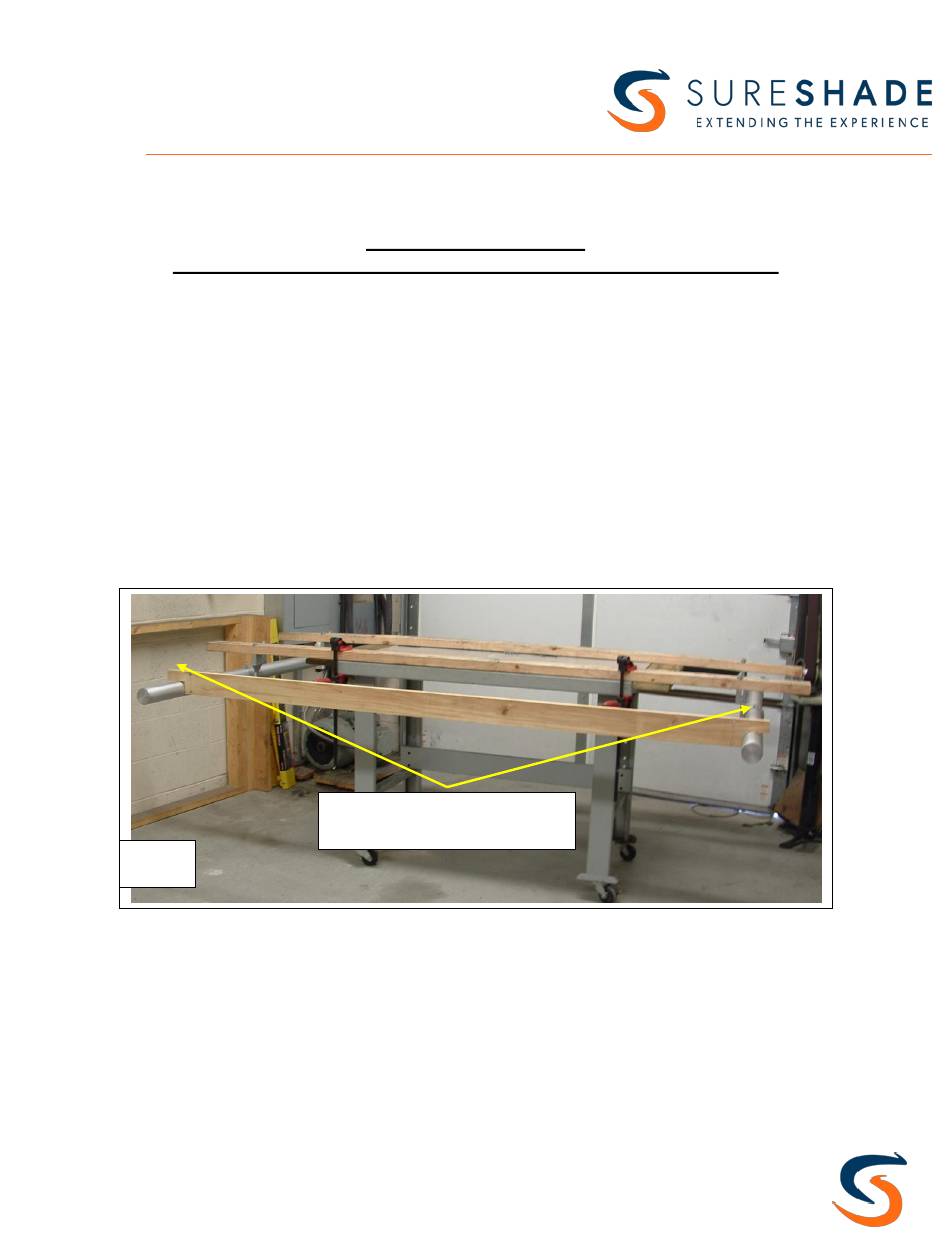

NOTE – the actuators must be aligned (parallel) to ensure proper functioning of the shade system.

Fig 1

Page 1 of 5

PO Box 51294 Philadelphia, PA 19115 • Phone: 877.333.8323 • www.sureshade.com

SureShade Installation

Be sure that the actuators are

parallel.

Table of Contents

Need help?

Do you have a question about the MTF and is the answer not in the manual?

Page 1 PO Box 51294 Philadelphia, PA 19115 • Phone: 877.333.8323 • www.sureshade.com SureShade Installation Manual Tele-Frame System (MTF) Underside-Mount Application 1) Mark the hole locations for he mounting clamps (Figs 1 – 3) 2) Secure the mounting clamps in place 3) Secure the actuators in place...
Page 2 For each location, mark the bolt hole locations. Drill through the top structure with a 3/8 drill bit and thru bolt the actuator in place using the 5/16 screws provided along with the backing plates. Use loctite with the thru bolts. Secure the actuators to the mounting clamps.
Page 3 Secure the roller assembly in place Hold the roller in position so you can slide the roller shafts (port and starboard) into the roller (Fig 4 & 4A). Note: Position the roller so that the canvas unrolls from the top of the roller (Fig 5). Do not secure roller to the shafts just yet. Fig 4 Fig 4A Unroll the canvas from the roller (Fig 5) and let the canvas hang over the mid crossbar (Fig 6)
Page 4 Line up the screw holes and secure the roller to the roller shafts on both port and starboard sides of the roller (Fig 7, 8 & Line up screws Secure roller to roller in roller with the shaft with both holes in the screws 180 degrees Fig 8...
Page 5 When removing canvas from the framework, the framework must be in the extended position. If there are any questions, please call us at +1-877-333-8323 or +1-267-968-7533. © 2018 Rodan Enterprises LLC t/a SureShade Page 5 of 5...
