S U R E S H A D E T E C H N I C A L D O C U M E N T A T I O N

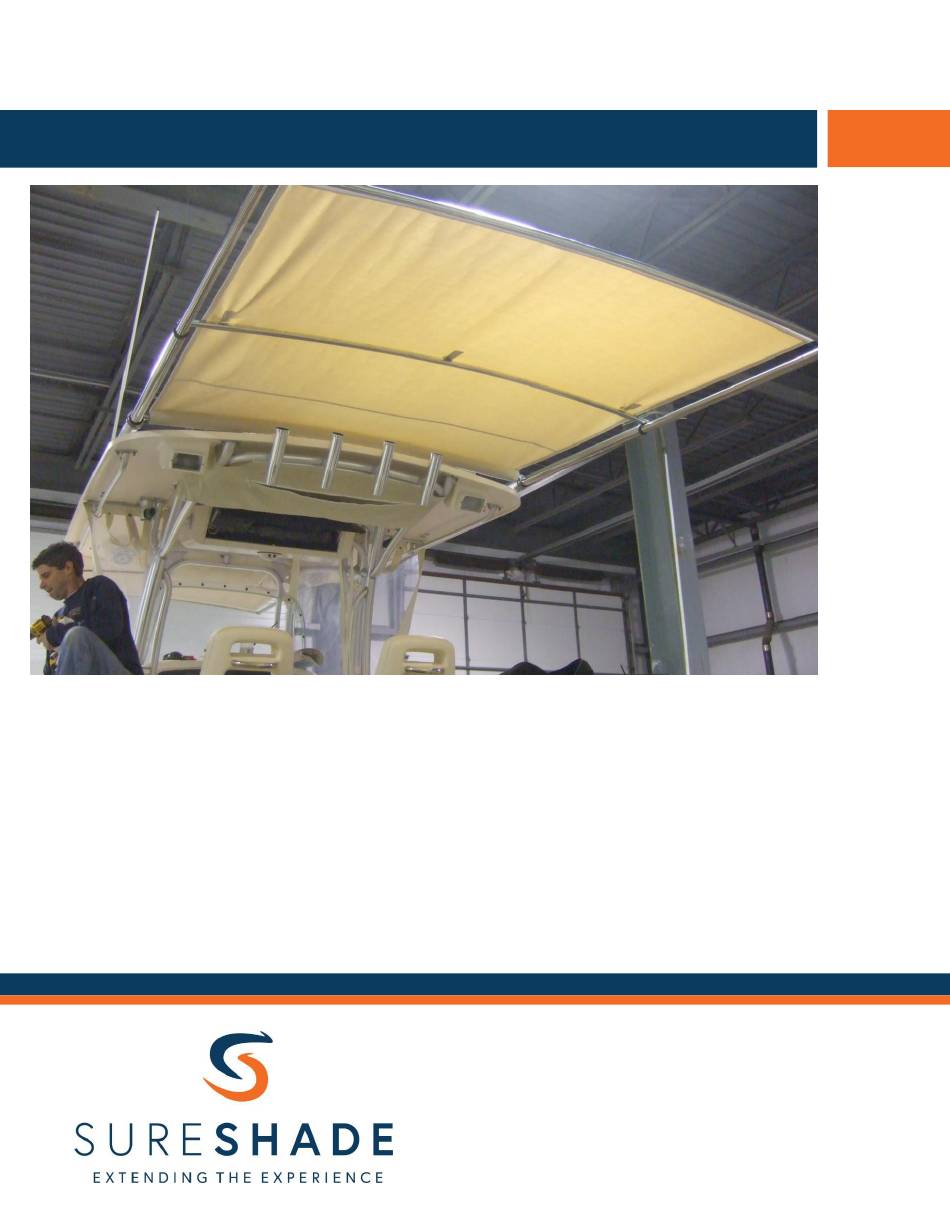

Automated Shade Installation

The SureShade® ATF automated shade system is an electric

power-driven retractable shade featuring a self-supported

stainless steel framework.

This installation guide includes instructions for properly installing

the framework and electrical components for our automated

shade systems.

Page 1 of 5

SURESHADE

PO Box 51294

Philadelphia, PA 19115

Tel: 1-877-333-8323

International: 215-673-2307

www.sureshade.com

Table of Contents

Do you have a question about the ATF and is the answer not in the manual?

Page 1 S U R E S H A D E T E C H N I C A L D O C U M E N T A T I O N Automated Shade Installation The SureShade® ATF automated shade system is an electric power-driven retractable shade featuring a self-supported stainless steel framework.
Page 2 1) Mark the position of the mounting clamps (Figs 1 – 4) 2) Secure the mounting clamps in place 3) Secure the actuators in place 4) Secure the roller assembly in place 5) Secure the crossbars in place (Fig 5 – 6) 6) Set up the electrical system (Fig 7) 7) Preload the canvas (Fig 8) Position both actuators on top of the hardtop resting on the bottom...
Page 3 Mark the position of the mounting plates on the hardtop (Fig 3 & 3A). Remove the crossbar, spacer and actuators from the mounting plate so you can drill and secure the mounting clamp to the hardtop in the marked locations. Secure actuators to the mounting clamps and slide the roller assembly...
Page 4 The electrical housing is pre-wired and tested before shipping. The wires that provide power to the controller contain a 5 amp fuse that protects the circuit board and a 15 amp fuse that protects the motors from overload. The electrical housing controls the retracted and extended positions as well as the synchronization of the actuators’...
