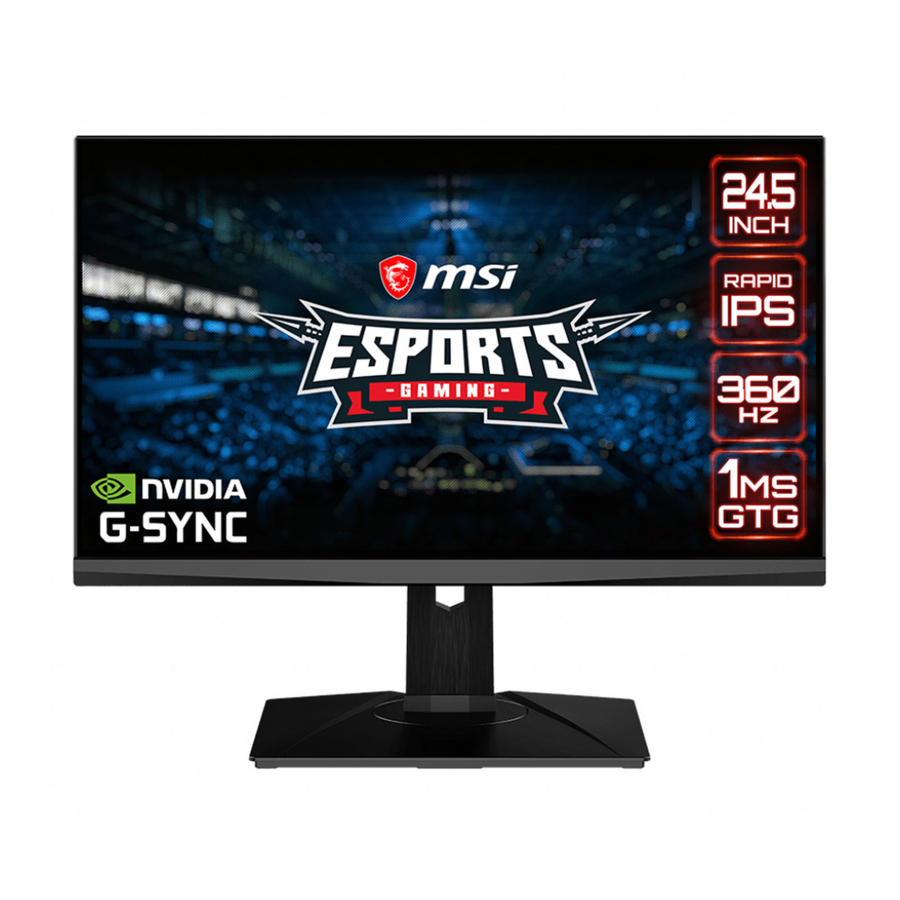

Oculux Series
LCD Monitor
Oculux NXG251R (3EA35 / 3EA37)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oculux Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MSI Oculux Series

  • Page 1 Oculux Series LCD Monitor Oculux NXG251R (3EA35 / 3EA37)
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii Getting Started ������������������������������������������������������� 1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...
  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...
  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...
  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Screw Rubber Cover x 2 5� Wall Mount Screws x 4 6� VESA Cover Screws x 2 7� Power Adatper & Power Cord 8� HDMI Cable 9� DisplayPort Cable 10�...
  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand 1� Fit the stand to the monitor� 2� Tighten the stand with the screws� Place the screw rubber covers on the screws� 3� Connect the base to the stand and tighten the base screw to secure the base� IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel�...
  • Page 12 IMPORTANT The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit�...
  • Page 13: Adjusting The Monitor

    Getting Started Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT Avoid touching the display panel when adjusting the monitor� 130mm...
  • Page 14: Monitor Overview

    Monitor Overview...
  • Page 15 Getting Started DisplayPort HDMI Port Headphone Jack Power Jack USB Type B Upstream Port For USB Upstream Cable� IMPORTANT Check the package for USB Upstream Cable and connect To Monitor it to the PC and monitor� Once this cable is connected, the To PC USB Type A Downstream Ports on the monitor will be...
  • Page 16: Connecting The Monitor To Pc

    Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/DisplayPort cable from the monitor to your computer� 3� Connect the power adapter to the monitor power jack� (Figure A) 4� Plug the power cord into the electrical outlet� (Figure B) 5�...
  • Page 17: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...
  • Page 18: Navi Key

    Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu� Navi Key...
  • Page 19 OSD Setup The Navi Key default settings are as follows� Users may enter the OSD Menu to customize their own Navi Key Hot Keys. Navi Key Hot Key Basic Operations (When OSD menu is OFF) (When OSD menu is ON) Middle Button OSD Main Menu ■...
  • Page 20: Osd Setup Via Navi Key

    OSD Setup via Navi Key Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main menu� Use the Up, Down, Left, Right buttons to tune the desired function menus to suit your personal preferences� h GAMING 1st Level Menu 2nd/3rd Level Menu Description...
  • Page 21 OSD Setup 1st Level Menu 2nd/3rd Level Menu Description ULMB Pulse 10-100 ■ This function is available if ULMB is Width enabled� Refresh Rate ■ This function is available only if your graphics card support G-Sync� Left Top ■ This function is unavailable if the input Right Top source is HDMI�...
  • Page 22 h Input Source 1st Level Menu Description This function sets the input source� HDMI h Navi Key 1st Level Menu 2nd Level Menu Description ■ This function allows users to set the default of each Navi Key� Brightness Gaming Mode Screen Assistance Alarm Clock Input Source...
  • Page 23 OSD Setup h Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ■ When users set Reset to Yes, Language will not be changed� English Français Deutsch Italiano Español 한국어 日本語 Русский Português 简体中文 ไทย Bahasa Indonesia हिन्दी Türkçe (More languages coming soon) DP Deep Sleep...
  • Page 25: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...
  • Page 26: Specifications

    Specifications Model NXG251R NXG251R 3EA35 3EA37 Size 24�5 inch Curvature Panel Type Resolution 1920 x 1080 (FHD) Aspect Ratio 16:9 Brightness (nits) Contrast Ratio 1000:1 Refresh Rate 240Hz Response Time 1ms (OD) Input Interface HDMI x1, DP x1 USB 3�1 Gen 1 Type A x3 USB 3�1 Gen 1 Type B x1 (for PC to Monitor) Earphone x1 View Angles...
  • Page 27: Preset Display Modes

    Appendix Preset Display Modes Oculux NXG251R Resolution HDMI 640x480 @60Hz 720x480 @60Hz 720x576 @50Hz 800x600 @60Hz 1024x768 @60Hz 1280x720 @50Hz 1280x720 @60Hz 1920x1080 @50Hz 1920x1080 @60Hz 1920x1080 @100Hz 1920x1080 @120Hz 1920x1080 @144Hz 1920x1080 @200Hz 1920x1080 @240Hz...
  • Page 28: Troubleshooting

    Troubleshooting The power LED is off. ■ Press the monitor power button again� ■ Check if the monitor power cable is properly connected� No image. ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
