OPERATING INSTRUCTIONS

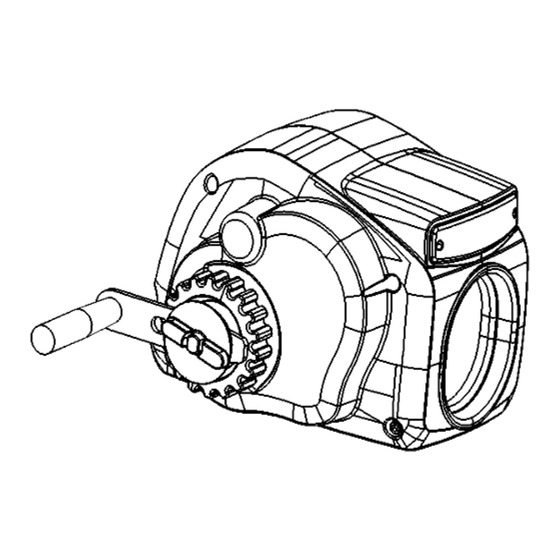

TRAILER WINCHES
For ELECTRIC TRAILER WINCH Models:
T10124-C
Day Runner™ (cable)
T10125-Csw Salt Water Series Day Runner™ (cable)
Every installation can be different. If you have
any questions or difficulty installing this
product, TRAC is here to help!
First READ THIS MANUAL.
If you still need help, call us from 9 am to 4 pm
(central time) Monday – Friday.
(615) 462-6224
Note: At this time, we provide Phone Support in English only.
Advertisement
Table of Contents
Related Manuals for TRAC Salt Water Series
Summary of Contents for TRAC Salt Water Series
- Page 1 TRAILER WINCHES For ELECTRIC TRAILER WINCH Models: T10124-C Day Runner™ (cable) T10125-Csw Salt Water Series Day Runner™ (cable) Every installation can be different. If you have any questions or difficulty installing this product, TRAC is here to help! First READ THIS MANUAL.
-
Page 2: Specifications
OPERATING INSTRUCTIONS TRAILER WINCHES Trailer winches are used for launching and loading boats on trailers. Please read and save these instructions. Read carefully before attempting to install, operate or maintain the winch. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! UNPACKING When unpacking, inspect for any damage that may have occurred during transit. - Page 3 NOTE: Note means any additional information pertaining 8. Inspect the cable for weak or worn condition, or to the product or its proper usage. kinking (short tight twist or curl) before each use. 9. When replacing the cable, always use a Trailer winch The following safety precautions must be followed at all times: cable with the rating and cable strength.
- Page 4 In most cases, the trailer manufacturer will can be installed on the trailer, or secured in the bed of a have an adapter or optional winch stands. TRAC does truck. not offer winch stands due the great variety of trailers.
-
Page 5: Wired Remote
1. Attach the battery power cord to the battery but do not remote is lost or broken another one can be obtained plug power cord into winch. from TRAC for a nominal fee . The transmitter (remote) 2. Plug the wired controller into the winch. -
Page 6: Winch Operation
4. Press and hold the retrieve button to begin retrieving Winch Operation the boat. UNLOADING 5. Power in the cable IN until the boat touches the bow To unload the boat, follow these procedures. stop. Secure boat to trailer with tie-downs once the boat is fully loaded. -
Page 7: Maintenance
To replace the cable, follow the outlined To prevent damage to light, do not operate light for longer procedures. Use an exact replacement TRAC cable. The than 20 minutes. winch rating and cable strength are carefully matched. -
Page 8: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Causes Corrective Action Winch does not operate. 1. Disconnected power wire. 1. Start by checking the wiring at the battery. Bypass 2. Disconnected control wire. the circuit breaker and test the winch. If the winch 3. Damaged Circuit Breaker. operates, replace the circuit breaker. -
Page 9: Frequently Asked Questions
Q: Why don’t you include the vehicle wiring? A: We are trying to keep winch costs low and not everyone requires the vehicle wiring. A kit is available from TRAC (Item T10135), visit our website, TRAC-Outdoor.com, for details. ... -
Page 10: Limited Warranty
TRAC Trailer Winch. This limited warranty is not transferable to any other party. TRAC will at it option repair or replace any part of the TRAC Trailer Winch which may be found by TRAC to be defective within two (2) years of original purchase. TRAC does not pay for the shipping cost from original purchaser to TRAC. - Page 11 TRAC Outdoor Products Company 251A Mayfield Drive Smyrna, TN 37167 www.trac-outdoor.com info@trac-outdoor.com 615/462-6224...
