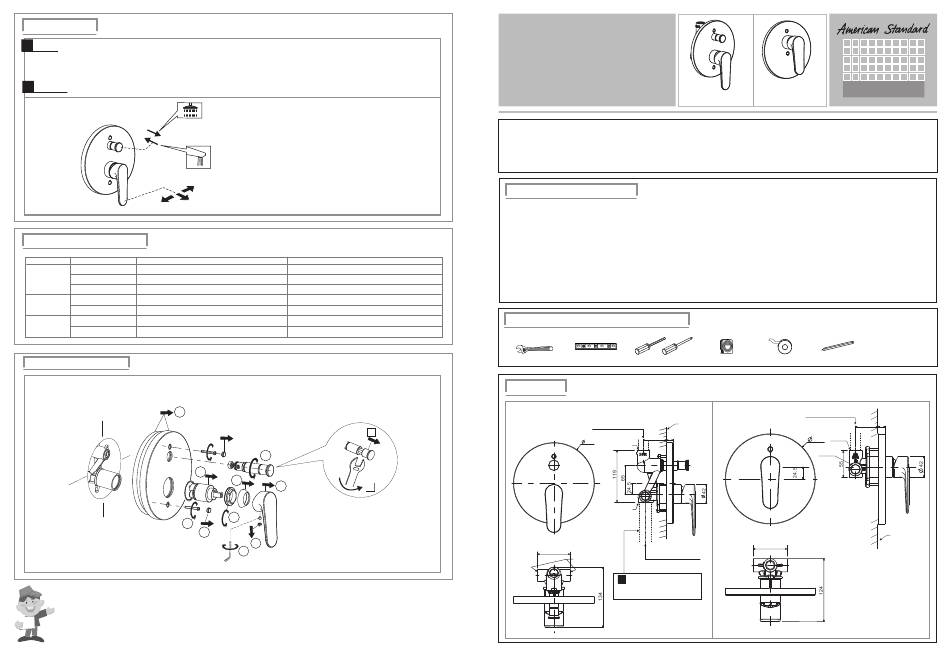

American Standard Codie Installation & Operation Instructions

Test / Usage
Test
1
* Move handle down into "OFF"position. Turn on supply angle valve to check allconnections for leak.
* Operate handle up and down, left and right to flush water lines thoroughly.
Usage
2
(Cold)
ON
(Hot)
Trouble Shooting Guide
Trouble Checkpoint Contents
Regulator
Check any impurities.
Poor flow rate Angle valve Check valve position.
Check if hose is twisted.
Flexible hose
Cartridge packing Check cartridge install.
Leakage
Hose junction Check the connection.
Supply Valve
Check if the water from Supply valve is enough or not
Deviant
Supply system
Temperature Check if the supply pipe connected correct or not
Care & Maintenance
* If you want to do the maintenance
for the faucet, please follow the
below process.
9
6
8
7
Attention:
Please Leave the manual with the customer
after installation is finished.
Action
Remove all impurities.
Open it to full valve
Untwist the hose.
When packing is damaged, replace the cartridge.
Check the existence of packing and wind it up sufficiently
Increase water supply
Connect the hot and cold water pipe correctly
A
7
4
3
B
5
1
2
- 4 -
Codie Codie
FFASB221-609500BF0
In-Wall Bath & Shower Mixing Valve
FFASB222-709500BF0
In-Wall Shower Only Mixing Valve
Thank you for selecting American-Standard - the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin.
* American Standard always keep raising and improving the product design and performance, and reserve the right to modify
the dimension and spefication. At this case, we will not inform you separately.
* This installation instruction sheet is for your reference only, the dimension and specification is subject to the actual products.
All instruction procedures must comply in strict accordance with applicable local plumbing and building codes
Pre-Installation Checks
*Remove all impurity in pipes before beginning to avoid clogging. Connect faucet pipes correctly.
Make sure the cold water hose is connected to the right side and the hot water hose to the left.
* Check installation distances in the Dimension diagram to ensure correct installation.
Conditions for use
* Recommended water pressure condition: 0.1~0.5Mpa.
* Environment Temperature:1~55℃
* Steam is not allowed to use.
* The cold and hot water pipes must not be reserved.
When in the process of installation, grab the whole body. Do not grab handle only.
Recommended Tools and Materials
Level Screwdriver
Adjustable Wrench
Dimension
FFASB221-609500BF0
Connect to Shower
11
46~56
184
G 1/2"
G 3/4"
75
Connect to Spout
G 1/2"
!
The inner diameter of pipe from
body to spout (including connector)
need to be more than 13mm
Rev. A0
Operation Instructions
FFASB221-609500BF0 FFASB222-709500BF0
Tape Measure Windtight Swathe Pencil
FFASB222-709500BF0
Connect to Shower
Wall
30~38 11
G 1/2"
184
G 1/2"
70
- 1 -
Installation &
Unit：mm
Wall
