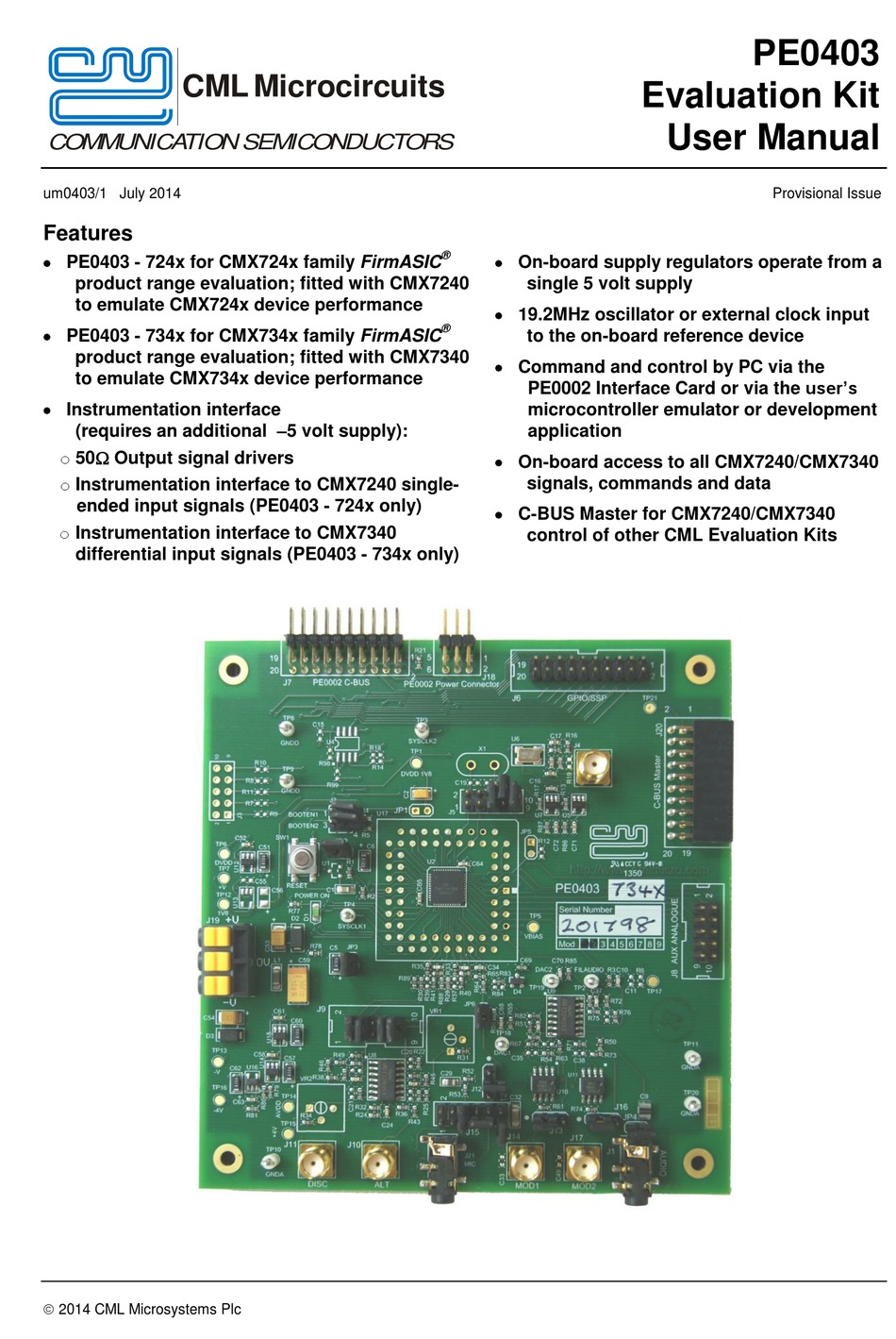

CML Microcircuits
COMMUNICA TION SEMICONDUCTORS
um0403/1 July 2014
Features
PE0403 - 724x for CMX724x family FirmASIC
product range evaluation; fitted with CMX7240
to emulate CMX724x device performance
PE0403 - 734x for CMX734x family FirmASIC
product range evaluation; fitted with CMX7340
to emulate CMX734x device performance
Instrumentation interface
(requires an additional –5 volt supply):
o 50 Output signal drivers
o Instrumentation interface to CMX7240 single-
ended input signals (PE0403 - 724x only)
o Instrumentation interface to CMX7340
differential input signals (PE0403 - 734x only)
2014 CML Microsystems Plc
On-board supply regulators operate from a
®
single 5 volt supply
19.2MHz oscillator or external clock input
®
to the on-board reference device
Command and control by PC via the
PE0002 Interface Card or via the user's
microcontroller emulator or development
application
On-board access to all CMX7240/CMX7340
signals, commands and data
C-BUS Master for CMX7240/CMX7340
control of other CML Evaluation Kits
PE0403
Evaluation Kit
User Manual
Provisional Issue
Advertisement
Table of Contents
Related Manuals for CML Microcircuits PE0403
Summary of Contents for CML Microcircuits PE0403
- Page 1 User Manual COMMUNICA TION SEMICONDUCTORS um0403/1 July 2014 Provisional Issue Features PE0403 - 724x for CMX724x family FirmASIC On-board supply regulators operate from a ® product range evaluation; fitted with CMX7240 single 5 volt supply to emulate CMX724x device performance ...
-
Page 2: Brief Description
CMX7240 or CMX7340 IC and the appropriate supporting components and circuitry. The PE0403 - 724x is fitted with a CMX7240 and the PE0403 - 734x is fitted with a CMX7340. The board also incorporates all of the necessary power-supply regulation facilities for operation from a single 5 volt supply, or a dual +/-5 volt supply if the instrumentation interface is required. -
Page 3: Table Of Contents
Evaluation Kit for CMX724x/CMX734x PE0403 CONTENTS Section Page Brief Description ....................2 Preliminary Information ..................6 2.1. Laboratory Equipment ..................6 2.2. Handling Precautions ..................6 2.2.1. Static Protection ..................6 2.2.2. Contents - Unpacking ................6 2.3. Approvals ......................6 Quick Start ...................... - Page 4 Table 8 CMX7240/CMX7340 Register Settings – External Digital Clocks ....... 24 Figure Page Figure 1 Block Diagram ...................... 5 Figure 2 PE0403 used with PE0002 .................. 7 Figure 3 PCB Layout: Top ....................15 Figure 4 PCB Layout: Bottom ................... 16 Figure 5 Audio Input Jumper Settings ................19 Figure 6 Function Image™...
- Page 5 Evaluation Kit for CMX724x/CMX734x PE0403 SSP/GPIO, J6 C-BUS Clocks Master, (19.2MHz default) +V, J18 CMX7240/ +3V3D CMX7340 Auxiliary ADC & DAC, +3V3A +4V0 -4V0 Instrumentation Interface Audio Output, Input, DISC/ALT_IN MOD1/2_OUT Figure 1 Block Diagram 2014 CML Microsystems Plc...
-
Page 6: Preliminary Information
A 5 volt dc regulated power supply (or +/- 5 volt supply when using the instrumentation interface). If the PE0403 is being used with the PE0002 Interface Card, the following items will also be required: An IBM compatible PC with the following requirements: ... -
Page 7: Quick Start
Quick Start This section is divided into two sub-sections. The first is for those users who are using the PE0403 with a PE0002 controller card and its Windows PC GUI software. The second is for users who are using the PE0403 by itself, without a PE0002. -
Page 8: Without Pe0002
J2, corresponds to a ‘0’ state on the boot pins. Alternatively the state of these pins may be set via the connector, J7, pins 13 and 14. By default, 47kΩ pullup resistors on the PE0403 board provide a ‘1’... -
Page 9: Signal Lists
Evaluation Kit for CMX724x/CMX734x PE0403 Signal Lists Table 1 Signal List CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type SPKR AUDIO (O/P) (dependent on the setting of JP4, see 6.1.6) RING GNDA Analogue ground. SLEEVE CLK EXT External input option for CMX7240/CMX7340 clock. - Page 10 Evaluation Kit for CMX724x/CMX734x PE0403 CONNECTOR PINOUT Connector Connector Signal Signal Description Ref. Pin No. Name Type Interrupt request. Connects to host C. IRQN 11, 12 GNDD Digital supply ground. BOOTEN1 CMX7240/CMX7340 Hardware Boot Control. BOOTEN2 CMX7240/CMX7340 Hardware Boot Control.
- Page 11 Analogue ground.(if J15 pin 9-7 shorted) SLEEVE Notes: Bidirectional High impedance Input Not connected Output Power supply connection For PE0403 - 724x boards, connector J9: pins 1, 2, 9 and 10 are N/C. Do not connect to these pins. 2014 CML Microsystems Plc um0403/1...
- Page 12 Evaluation Kit for CMX724x/CMX734x PE0403 Table 2 Test Points TEST POINTS Test Point Default Description Ref. Measurement Loop – Non-buffered Audio output Loop – CMX7240/CMX7340 system clock 2 output. Loop – CMX7240/CMX7340 system clock 1 output. 19.2MHz Pad – CMX7240/CMX7340 VBIAS.
- Page 13 Evaluation Kit for CMX724x/CMX734x PE0403 Table 3 Jumpers JUMPERS Link Default Positions Description Ref. Position Short Isolates digital supply rail from CMX7240/CMX7340. Short Isolates analogue supply rail from CMX7240/CMX7340. Open Connects Audio(J1) connector Ring to Tip. Short Select Mic or Line level for Mic input (Short for Mic level) Open Manual BootEn1 control (short = LO).
- Page 14 Evaluation Kit for CMX724x/CMX734x PE0403 Table 4 LEDs LEDs LED Ref. Description Indicates that the digital supply voltage is present. 2014 CML Microsystems Plc um0403/1...
-
Page 15: Circuit Schematics And Board Layouts
Evaluation Kit for CMX724x/CMX734x PE0403 Circuit Schematics and Board Layouts For clarity, circuit schematics are available as separate high-resolution files. These can be obtained via the CML website. Figure 3 PCB Layout: Top 2014 CML Microsystems Plc um0403/1... - Page 16 Evaluation Kit for CMX724x/CMX734x PE0403 Figure 4 PCB Layout: Bottom 2014 CML Microsystems Plc um0403/1...
-
Page 17: Detailed Description
PE0403 Detailed Description 6.1. Hardware Description The PE0403 as shipped may not have the optimum configuration or component values for all function images. Check the PE0403 schematic against recommendations in the specific CMX734x datasheet. 6.1.1. Power Supplies The board is fitted with four voltage regulators and has a footprint for a fifth regulator. -
Page 18: Control Interface
To configure the outputs, short pin 2 and pin 1 to use the 50 Ohm driver, or short pin 2 and pin 3 to bypass the driver. Use of this section of the PE0403 requires an additional negative supply rail, nominally –5 volts. -
Page 19: Audio Interfaces
Evaluation Kit for CMX724x/CMX734x PE0403 R34 and R31 then replacing them with 50k Ohm potentiometers in positions VR2 and VR1 for the DISC and ALT input paths respectively. Bourns type 3386P or similar will fit the footprints provided. 6.1.6. Audio Interfaces... -
Page 20: Function Image
Whenever power is removed from the PE0403 the FI data will be erased from the CMX7240/CMX7340 device. Therefore, whenever power is applied a FI must be loaded via the C-BUS interface. If the PE0403 is used with the PE0002 PC interface, Function Images can be loaded as described in sections 6.3.1, 6.3.2 and 6.3.3. -
Page 21: From Serial Memory Device
Evaluation Kit for CMX724x/CMX734x PE0403 6.3.2. Load Function Image from Serial Memory Device Note: This option is not supported on PE0403. Figure 7 Function Image™ Load Tab – from Serial Memory (not supported) 2014 CML Microsystems Plc um0403/1... -
Page 22: Program Serial Memory
Evaluation Kit for CMX724x/CMX734x PE0403 6.3.3. Program Serial Memory Note: This option is not supported on PE0403. Figure 8 Program Serial Memory Tab (not supported) 6.4. Evaluation Tests Before a Function Image™ is loaded into the CMX7240/CMX7340 reference device; there is a limited functionality that can be demonstrated directly by programming the C-BUS registers. -
Page 23: Check Analogue Path And Set Input Gain
Evaluation Kit for CMX724x/CMX734x PE0403 6.4.2. Check Analogue Path and Set Input Gain Configure the CMX7240/CMX7340 with the C-BUS register data given in Table 6. Table 6 CMX7240/CMX7340 Register Settings – Analogue Path and Input Gain C-BUS Register Write Data... -
Page 24: Generate Two External Digital Clocks
ES0002xx application. It is recoverable only by closing the ES0002xx application, power cycling the PE0403 and PE0002 cards, and then restarting the application. Keep the power off for at least 10 seconds during this process. -
Page 25: Performance Specification
Evaluation Kit for CMX724x/CMX734x PE0403 Performance Specification 7.1. Electrical Performance 7.1.1. Absolute Maximum Ratings Exceeding these maximum ratings can result in damage to the evaluation kit. Min. Max. Units Supply (+V – 0V) -0.3 Supply (-V – 0V) -9.0 Voltage on any connector pin to V -0.3... -
Page 26: Operating Characteristics
Evaluation Device Clock Frequency = 19.2MHz, +V = 5.0V, -V = -5V, Tamb = +25°C. Notes Min. Typ. Max. Units DC Parameters – – (PE0403 - 724x) 1, 2 – – (PE0403 - 724x) 1, 2 – – (PE0403 - 734x) 1, 2 –... - Page 27 Evaluation Kit for CMX724x/CMX734x PE0403 About FirmASIC® CML’s proprietary FirmASIC® component technology reduces cost, time to market and development risk, with increased flexibility for the designer and end application. FirmASIC® combines Analogue, Digital, Firmware and Memory technologies in a single silicon platform that can be focused to deliver the right feature mix, performance and price for a target application family.
