CML Microcircuits
COMMUNICA TION SEMICONDUCTORS
Publication: QS/EV9730/1

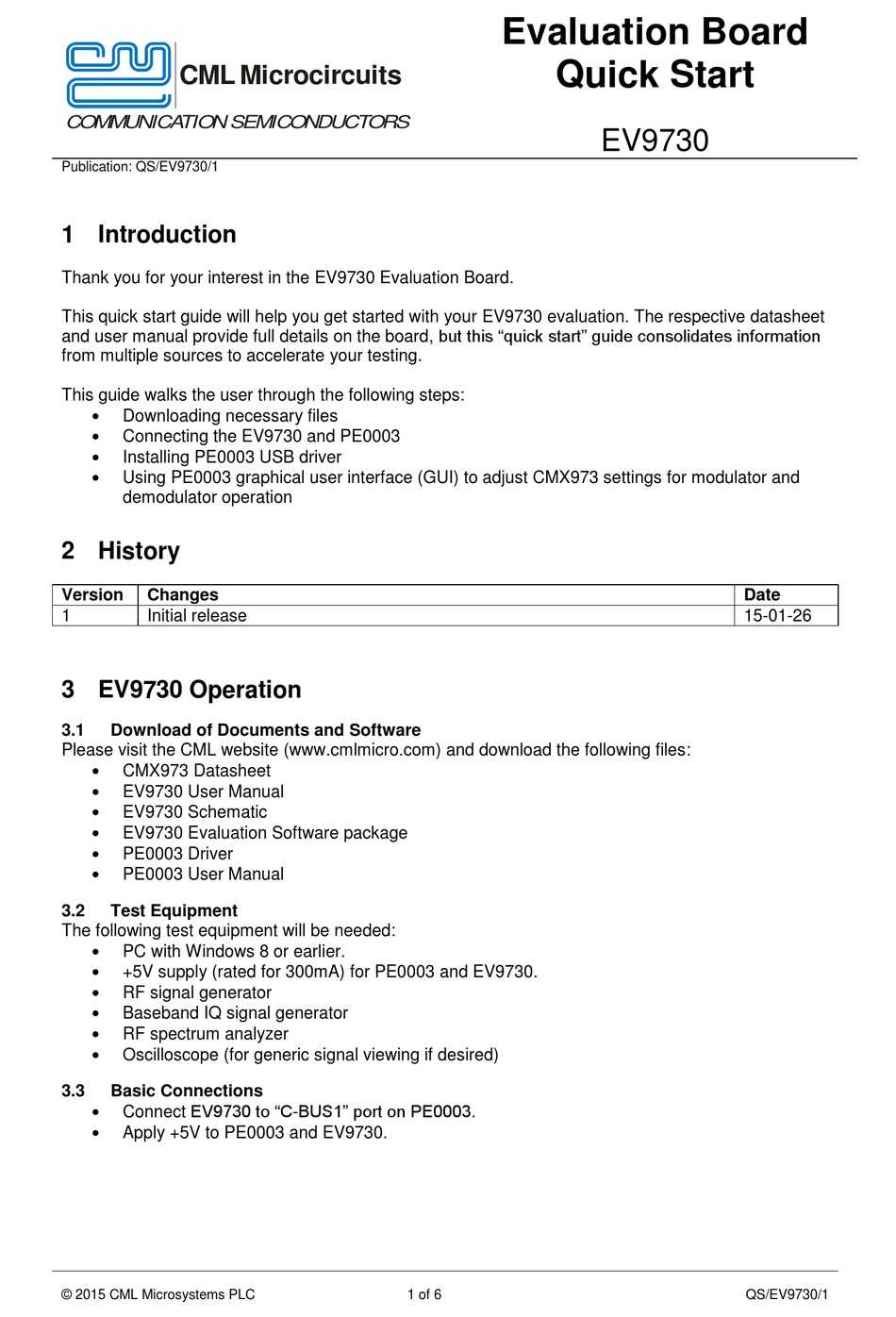

1 Introduction

Thank you for your interest in the EV9730 Evaluation Board.
This quick start guide will help you get started with your EV9730 evaluation. The respective datasheet
and user manual provide full details on the board, but this "quick start" guide consolidates information
from multiple sources to accelerate your testing.
This guide walks the user through the following steps:
Downloading necessary files
Connecting the EV9730 and PE0003
Installing PE0003 USB driver
Using PE0003 graphical user interface (GUI) to adjust CMX973 settings for modulator and
demodulator operation

2 History

Version
Changes
1
Initial release

3 EV9730 Operation

3.1
Download of Documents and Software
Please visit the CML website (www.cmlmicro.com) and download the following files:
CMX973 Datasheet
EV9730 User Manual
EV9730 Schematic
EV9730 Evaluation Software package
PE0003 Driver
PE0003 User Manual
3.2
Test Equipment
The following test equipment will be needed:
PC with Windows 8 or earlier.
+5V supply (rated for 300mA) for PE0003 and EV9730.
RF signal generator
Baseband IQ signal generator
RF spectrum analyzer
Oscilloscope (for generic signal viewing if desired)
3.3
Basic Connections
Connect EV9730 to "C-BUS1" port on PE0003.
Apply +5V to PE0003 and EV9730.
© 2015 CML Microsystems PLC

Evaluation Board

Quick Start
1 of 6
EV9730
Date
15-01-26
QS/EV9730/1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV9730 and is the answer not in the manual?

Questions and answers

Summary of Contents for CML Microcircuits EV9730

  • Page 1: Evaluation Board

    Thank you for your interest in the EV9730 Evaluation Board. This quick start guide will help you get started with your EV9730 evaluation. The respective datasheet and user manual provide full details on the board, but this “quick start” guide consolidates information from multiple sources to accelerate your testing.
  • Page 2 Figure 1: EV9730 and PE0003 PE0003 Installation The EV9730 can be controlled with either the PE0003 PC Interface Card or its predecessor, the PE0002. The unzipped EV9730 Evaluation Software package includes software to allow the use of either PC interface card. A “Readme.txt” file indicates which file to use with which PC interface card.
  • Page 3 Evaluation Board Quick Start – EV9730 Select EV9730 and click “Gen Reset” button in bottom right corner of GUI. Modulator Operation  Apply 892MHz @ -10dBm to EV9730 LO_IN connector J3.  Apply baseband IQ inputs, biased at 1.6V, to EV9730 TXI/TXQ header J9.
  • Page 4 Demodulator Operation  Apply 180MHz @ -10dBm to EV9730 LO_IN connector J3.  Apply IF signal = 45.002MHz @ -60dBm to EV9730 IF_IN connector J5. Figure 5:EV9730 Demodulator Connections  Click “Gen Reset” in “C-BUS Control” tab of GUI. ...
  • Page 5 ($1F)” area of “Registers 2” tab in GUI. Figure 7: Rx IQ DC Offset Adjustment Area  EV9730 should now be operating as a receiver with IF=45MHz. Helpful Hints Detailed PE0003 driver installation information can be found in the PE0003 User Manual. For Win7 and Win8 driver signing issues see the FAQ tab on the CML website’s PE0003 Product page.
  • Page 6 Evaluation Board Quick Start –EV9730 CML does not assume any responsibility for the use of any algorithms, methods or circuitry described. No IPR or circuit patent licenses are implied. CML reserves the right at any time without notice to change the said algorithms, methods and circuitry and this product specification.
