COMMERCIAL SHOWER
SYSTEM KITS: 1.5 gpm & 2.5 gpm
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Installation must conform to all local building codes.
Recommended Tools & Materials
Phillips Screwdriver
Pipe Wrench

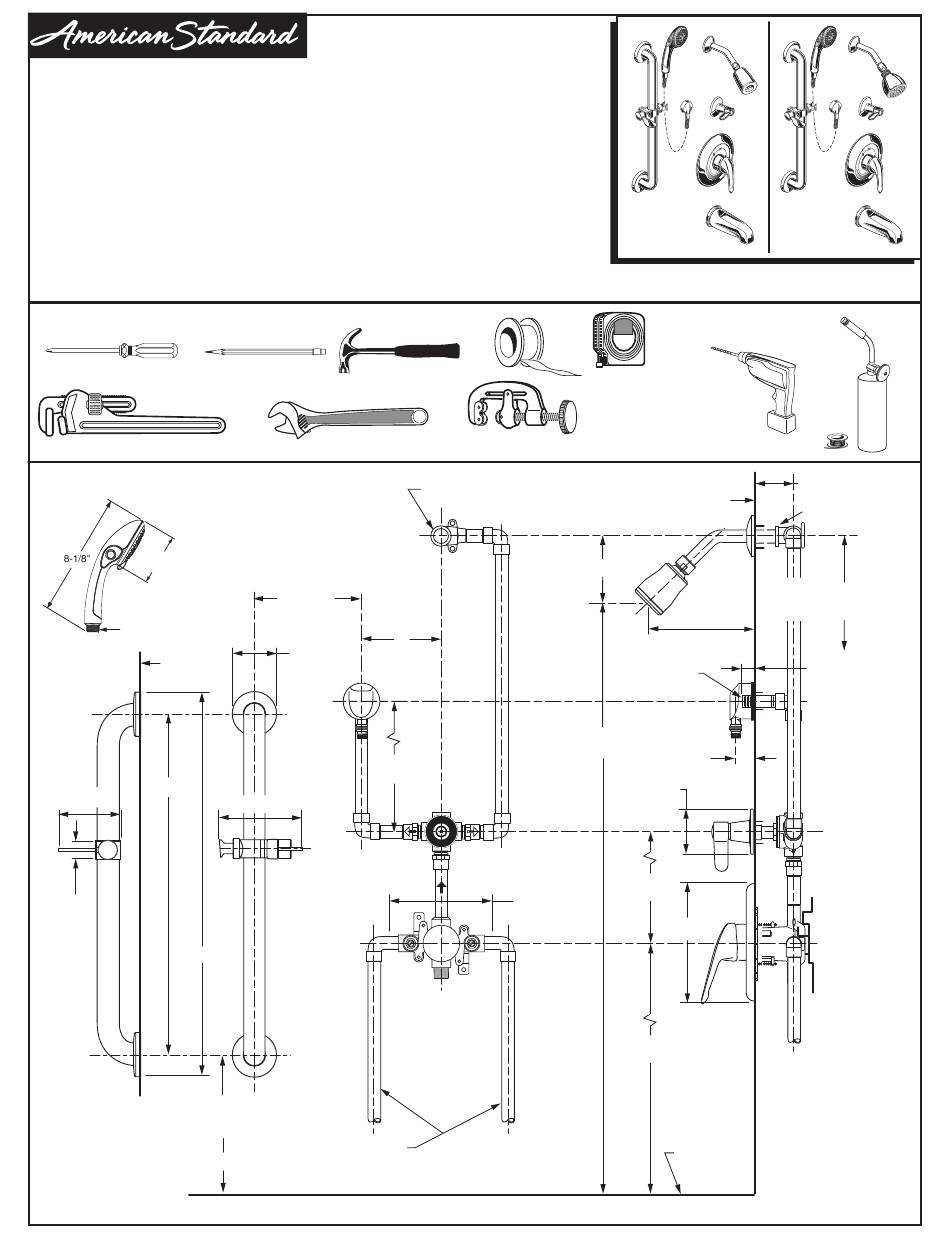

ROUGHING-IN DIMENSIONS
1660766.002
(1.5 gpm)
1660767.002
3-5/16"
(2.5 gpm)
1/2" NPSM
FINISHED
WALL
36"
3-1/8" DIA.
1-5/8"
37-1/2"
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN
36"
TO
48"
Instructions
Pencil
Hammer
Adjustable Wrench
OPTIONAL
8"
3-1/8" DIA.
12"
OPTIONAL
3-1/8" DIA.
60"
1/2" SUPPLIES
Universal Inlets / Outlets:
1/2" NOM Copper Sweat or 1/2" NPT
Installation
1662SG.213
1662SG.223
Sealing Tape
Tubing Cutter
1/2" NPT
4" REF.
74" FOR HEAD
CLEARANCE
5-7/8"
PLUG TUB
OUTLET
1662SG.213
1662SG.223
(1.5 gpm)
(2.5 gpm)
Certified to comply with ANSI A112.18.1
M965668 Rev. 1.3 (1/17)
10'
Tape
6mm (15/64")
Measure
Drill Bit
Electric Drill
FINISHED WALL
OPTIONAL TO FINISHED
7" REF.
1/2" NPT
1-1/4"
2-3/4" DIA.
12"
OPTIONAL
6" DIA.
48" TO 54"
OPTIONAL
BOTTOM
OF SHOWER
Torch
1-5/8" TO 3-1/4"
1/2" NPT
FLOOR USUALLY
BETWEEN 65" TO 78"
1/2"
Advertisement
Related Manuals for American Standard 1662SG.223
Summary of Contents for American Standard 1662SG.223
- Page 1 Installation Instructions COMMERCIAL SHOWER 1662SG.213 SYSTEM KITS: 1.5 gpm & 2.5 gpm 1662SG.223 Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please 1662SG.213 1662SG.223 read these instructions carefully before you begin.
- Page 2 INSTALL THE R121SS VALVE BODY R121SS NOTE REFER TO INSTALLATION INSTRUCTIONS (M965661) SUPPLIED WITH VALVE BODY FOR COMPLETE INSTALLATION AND REPAIR PART INFORMATION. IMPORTANT When soldering, remove PLASTER GUARD, CARTRIDGES and CHECK STOPS (IF PRESENT). When finished soldering, flush valve body, replace cartridges, check stops (if present) and plaster guard to continue installation.
- Page 3 INSTALL DIVERTER TRIM AND HANDLE When finished tiling the wall, remove PLASTER GUARD. Place ESCUTCHEON (1) onto ESCUTCHEON HOLDER (2). Thread ESCUTCHEON HOLDER (2) onto DIVERTER VALVE (3). Tighten until ESCUTCHEON (1) is snug against finished wall. Install HANDLE SKIRT (4) onto VALVE STEM (5). Push DECORATIVE RING (6) onto LEVER HANDLE (7).
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS The SLIDE BAR (1) works best when secured to the wall studs or cross brace using WOOD SCREWS. If mounting into the studs is not possible, use appropriate wall fasteners provided to secure the installation. Mark a vertical center line in the location you wish to install the SLIDE BAR (1). NOTE: The height from the finished floor is optional. - Page 5 COLONY SOFT SHOWER TRIM MODEL NUMBER PRESSURE BALANCE TEMPERATURE/VOLUME 023560-0020A T675.501 SHOWER ARM CONTROL VALVE AND FLANGE MODEL NUMBER R121SS M953530-0020A 1660710.002 SHOWER HEAD FloWise™ (2.5 gpm) SHOWER HEAD (1.5 gpm) 051122-0070A SCREWDRIVER STOPS 013205-0070A M961856-0020A STOP VALVE O-RING ESCUTCHEON AND SCREWS M952100-0070A PRESSURE BALANCING UNI 078016-0020A...
