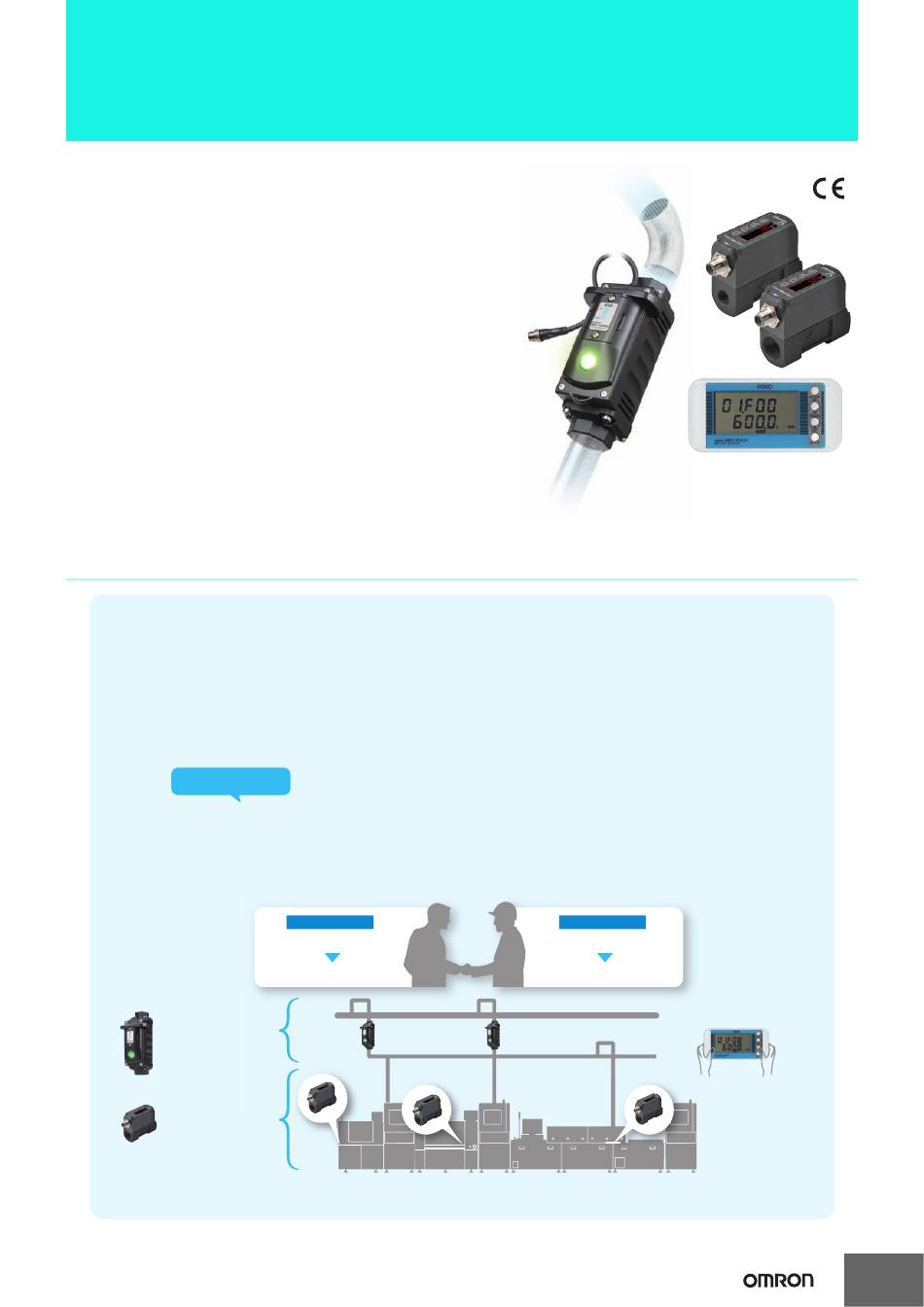

Air Flow Sensor
D6FZ
Visualization of Compressed Air Flow
Rates, Pressures, and Leakage Rates on
Production Lines and Equipment
• Ideal for measuring compressed air in manufacturing lines and
equipment.
• Can be mounted behind curved pipes.
• The D6FZ-FGS1000 simultaneously measures the flow rate,
leakage rate, and pressure.
• The D6FZ-FGT200/500 provides easy-to-read 11-segment 8-
digit displays.
• Data can be easily logged at an air flow station.
• Many types of outputs (RS-485, analog, and pulse) to quickly
enable visualization on existing systems.
Features
Visualize Air Flows, Pressures,
and Leakage to Save Energy
on Production Sites.
Consequently
Visualization is required on both the supply
side and consumption side.
power consumption while maintaining
Compressed air on production line
D6FZ-FGS1000
(1000L type)
Compressed air at machines
D6FZ-FGT200/500
(200L/500L type)
Identify the waste that had previously been invisible to reduce the energy consumed for compressed air.
Power supply side
Monitor and control supply quantities
Optimize supply quantities
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
This leads to lower
quality.
Consumption side
Maintain production quality
Optimize usage quantities
D6FZ-FGX21
CSM_D6FZ_DS_E_3_1
Data logging
1
Advertisement
Table of Contents
Related Manuals for Omron D6FZ Series
Summary of Contents for Omron D6FZ Series
- Page 1 • Many types of outputs (RS-485, analog, and pulse) to quickly enable visualization on existing systems. For the most recent information on models that have been certified for safety standards, refer to your OMRON website. Features Visualize Air Flows, Pressures, and Leakage to Save Energy on Production Sites.
- Page 2 (at 50 L/min or less) Simple Setup 1000 Flow rate [L/min] Mountable to Silencer * Data is based on comparison for OMRON conditions (November 2012). Curved Pipes or Couplers Check the actual application environment before using a Sensor. The built-in silencer eliminates ultrasonic noise...
- Page 3 Highly Accurate Flow Measurements 11-segment 8-digit First in the industry! An OMRON MEMS chip is used to achieve the highest accuracy in the industry* of ±2% F.S. (at 50 L/min or less). The characters are easy to read, and the total flow rate can be checked in a glance.
- Page 4 Check boxes allow you to display only the required data. an SD memory card. Start data logging with a single Download the PC Software Station Utility from the following OMRON website (http://www.fa.omron.co.jp/station-u-e). press of a button. You can save energy in a variety of applications.
-
Page 5: Options (Sold Separately)
D6FZ Specifications Units Appearance Product name Model 200L-type Air Flow Sensor D6FZ-FGT200 500L-type Air Flow Sensor D6FZ-FGT500 1000L-type Air Flow Sensor D6FZ-FGS1000 (cable length: 0.2 m) Air Flow Station (cable length: 1.5 m, including T-branch D6FZ-FGX21 Connector cable) 1000L-type Air Flow Sensor Set •... - Page 6 D6FZ Ratings Air Flow Sensor Item Model D6FZ-FGT200 D6FZ-FGT500 Applicable fluid Air or nitrogen (N Maximum working pressure 0.75 MPa (withstand pressure: 1.5 MPa) Measurement range 0 to 200 L/min 0 to 500 L/min Measurement range for specified accuracy 2 to 200 L/min 5 to 500 L/min Display resolution 1 L/min...
- Page 7 D6FZ Item Model D6FZ-FGS1000 Applicable fluid Air or nitrogen (N Working pressure 0.99MPa max. Detection 1 to 1,000 L/min (std) range 0.1 L/min Resolution Flow ±2.0% of reading at 50 L/min (std) or higher Accuracy ±0.1% F.S. at less than 50 L/min Measure- Detection ments...
- Page 8 8 Sensors are connected. SD card (to save measured values and to save/read set values), Recommended SD card: HMC- External storage device SD291 (manufactured by OMRON) Power supply voltage DC input: 24 VDC ±10%, ripple (p-p): 10% max. Current consumption 80 mA max.
- Page 9 For detailed specifications, consult your OMRON sales representative. Refer to the user’s manuals for the Wireless Unit and Air Flow Sensors for detailed information on connections.
-
Page 10: Engineering Data
D6FZ Engineering Data Pressure Loss (Typical) Minimum and Maximum Flow Rate Conversion Table D6FZ-FGS1000 (Typical) D6FZ-FGS1000 Minimum flow Maximum flow Temperature Pressure Atmospheric pressure rate rate [°C] [MPa] 0.3 MPa [L/min (std)] [L/min (std)] 0.5 MPa 3.96 667.37 1.0 MPa 5.93 999.94 7.91... -
Page 11: Safety Precautions
D6FZ Safety Precautions Read the warranty and limitations of liability information. Air Flow Sensors Precaution for mounting Mounting position Warning • Be sure to mount the body horizontally, otherwise the This product cannot be used to detect people either detection accuracy might be worse. directly or indirectly for the purpose of ensuring •... - Page 12 D6FZ (Unit: mm) Dimensions Unspecified dimensional tolerances: Tolerance class IT16 Air Flow Sensor D6FZ-FGT200 Four, 3.2 dia. ±0.1 holes 49.5 ±0.1 Mounting Hole Dimensions 89.65 12.65 Rc1/4, Effective (60) depth: 10 mm Rc1/4, Effective 49.5 depth: 10 mm ±0.1 Four, M3; Effective depth: 5 mm D6FZ-FGT500...
-
Page 13: Mounting Bracket
D6FZ Air Flow Station D6FZ-FGX21 Screw catch-hole dimensions Screw catch-holes Mounting screw holes, Two M3 holes; Hole depth: 4 Mounting screw hole 117.2 dimensions Mode Key Up Selection Key Down Selection Key SET/REC/STOP Key T-branch Display connector plug Reset switch T-branch Connection Cables SD memory Alarm output terminal... - Page 14 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
