Summary of Contents for Leviton N1000-006

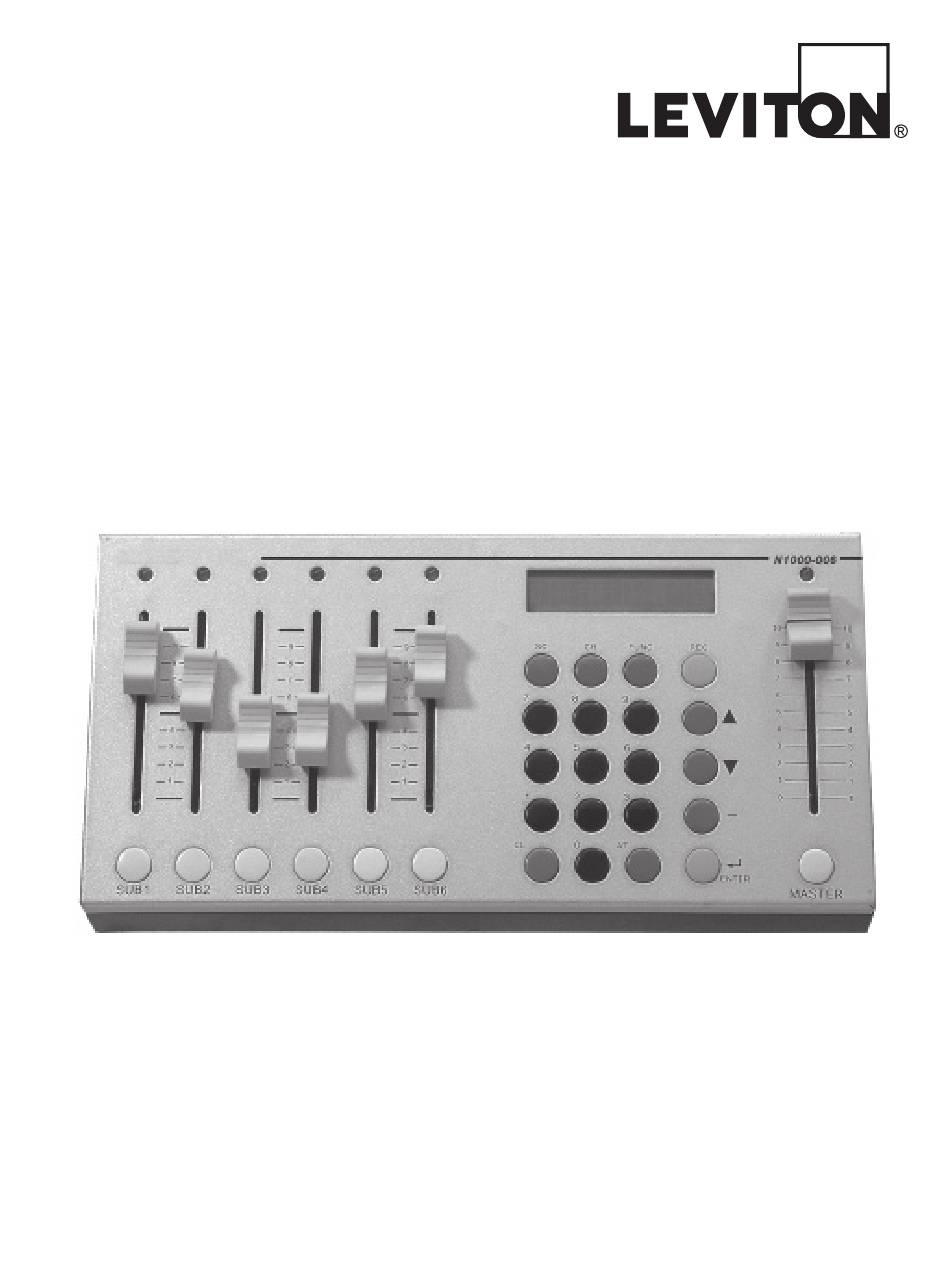

  • Page 1 User Guide N1000-006...
  • Page 2 Future software releases may change the features or operation of this product. For current information contact: Leviton Energy Management, Controls and Automation 20497 SW Teton, Tualatin, OR 97062 Mailing Address:...
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction....................1 About the Console..................2 Features....................2 Specifications..................2 Warnings! .................... 2 Console Controls................. 3 Rear Panel................... 4 Using this Guide................... 4 Text Conventions................. 4 Terminology Definitions............... 4 Contacting Technical Support............... 5 Chapter 2 Operation..................... 6 Console Setup....................
  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction This chapter is intended to orient you to the console and user guide. The following sections are covered: • About the Console • Features • Specifications • Warnings • Console Controls • Rear Panel • Using this Guide •...
  • Page 5: About The Console

    About the Console Thank You for purchasing the Leviton N1000-006 lighting control console! The N1000-006 is a compact yet powerful console, perfectly designed for small size applications. To optimize the performance of this product, please read this user guide carefully to familiarize yourself with the basic operations of the unit.
  • Page 6: Console Controls

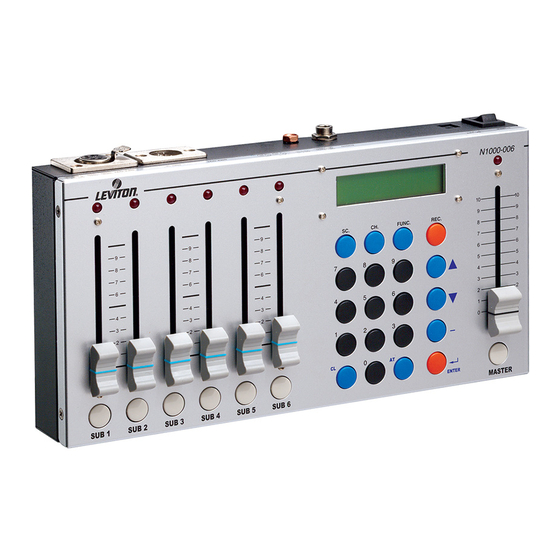

    Console Controls LEVITON N1000-006 FUNC. REC. ENTER SUB1 SUB2 SUB3 SUB4 SUB5 SUB6 MASTER Channel / Sub Level LED Channel / Sub Fader Channel / Sub Bump Button Clear Key Alpha-Numeric Keypad At Key Thru Key Enter Key Down Select Key...
  • Page 7: Rear Panel

    Rear Panel Power Switch Power Supply: DC 12V / 1A DMX IN Connector: 5 Pin XLR DMX OUT Connector: 5 Pin XLR Using this Guide Text Conventions Fader and Key control names are shown in Bolded Letters and appear inside brackets [ ].
  • Page 8: Contacting Technical Support

    If you cannot find answers in the user guide, please contact Technical Support at www.leviton.com/les and we will be glad to answer your questions. You may also call us during regular business hours at 1-800-959-6004. Please have the console model number and serial number available when you call.
  • Page 9: Chapter 2 Operation

    Chapter 2 Operation The following sections are covered in this chapter: • Console Setup • Power On • Internal Battery Operation • Auto Memory • Console Reset • Master Fader and Bump Button • Setting Channel Levels • Setting Channel Levels using Faders •...
  • Page 10: Console Setup

    Console Setup Power On 1. Plug the 12V DC adapter into a 110V AC mains outlet. 2. Plug the DC power connector into the DC power jack located on the rear of the console. 3. Plug the DMX signal cable attached to you dimmers into the DMX OUT connector on the rear of the console.
  • Page 11: Setting Channel Levels

    Setting Channel Levels Individual channel levels can be adjusted directly with the six channel faders. To give the user channel intensity feedback, channel intensity LED’s are provided above the faders. NOTE: The six faders correspond sequentially to whatever range of channels that are selected and shown in the LCD.
  • Page 12: Setting Channel Levels Using The Keypad

    Setting Channel Levels using the Keypad Individual channel levels can be also be set using the keypad. See the example below to set channel 7 to 80%: Procedure: Notes: Make sure the console is turned On. 1. Raise the Master Fader to 100% (full) 2.
  • Page 13: Channel Bump Buttons

    Channel Bump Buttons Pressing the bump buttons located below each fader allows individual channels to change quickly to full intensity (100%) while in CH. SET mode. Clearing Channel Levels There are two ways to clear the levels of all channels while in CH. SET mode: Procedure: Notes: 1.
  • Page 14: Scenes

    Scenes As mentioned earlier, a scene is a recorded lighting look that is comprised of individual channel levels. With this console, up to 46 scenes may be recorded for future playback. There are two methods of recording and recalling scenes. The first way is by recording a scene to one of the six submasters.
  • Page 15: Recording Scenes To Scene Memory

    Recording Scenes to Scene Memory In this example, we will set levels on channels one through six and record them into scene one. Procedure: Notes: 1. Raise the Master Fader to 100% (full). 2. Press the [FUNC] key. The LCD displays: >CH SETTING SUB MASTER 3.
  • Page 16: Recalling Submaster Scenes

    ] key to select the sub function: CH SETTING >SUB MASTER 3. Press [ENTER] to select sub: SUB MASTER 1--6 LEVITON CORP. 4. Press and hold [SUB1]: Sub level is output at 100%. LOAD SUBSCENE 1 – OR – 5. Raise fader [1]:...
  • Page 17: Modifying Submaster Memory

    Recalling Memory Scenes (continued) 3. Press [ENTER] to select scene: SUB MASTER 1--6 LEVITON CORP. 4. Press the [SC] key: LOAD SCENE _ KEYIN SC 1...40 5. Press [1]: LOAD SCENE 1 6. Press [ENTER] Scene is output at recorded levels.
  • Page 18: Modifying Scene Memory

    Modifying Submaster Memory (continued) 6. Press [ENTER] to c0mplete the operation: SUB MASTER 1--6 LEVITON CORP. Modifying Scene Memory After you have recorded channel levels into a scene, you can modify the channel levels. See the following example. Procedure: Notes: 1.
  • Page 19: Clearing Scene Levels

    Clearing Scene Levels There are two ways to clear the levels of a scene while in SUB MASTER mode: Procedure: Notes: 1. Press the [CL] and [SC] keys at the same time – OR – 1. Lower the Master Fader to 0%, then Press the [MASTER] key. Note: After clearing the levels, you must re-record the scene in order for the new levels to be saved.
  • Page 20: Chases

    Chases As mentioned earlier in this guide, a chase is a series (sequence of steps) of individual channel levels or pre-recorded scenes that can be played back in a continuous loop. With this console, you can run two different types of chases; a channel chase or a submaster chase.
  • Page 21: Channel Chase + Scene

    Channel Chase + Scene A channel chase can be executed while a scene is active in the background. Please follow below. 1. Press the [SC] key while the chase is running: LOAD SCENE _ KEYIN SC 1...40 2. Enter [1] or whatever scene # desired: LOAD SCENE 1 3.
  • Page 22: Chase Fade

    Chase Fade A channel or sub chase sequence can either instantaneously bump (Fade Off) or gently fade (Fade On) between steps. Follow the channel chase example below to change the fade type. The same method applies for a sub chase. Procedure: Notes: 1.
  • Page 23: Auto Fade

    Auto Fade The auto fade function allows a single channel or range of channels to automatically fade from 0 to 100% and back in a continuous fashion. 21 speeds are available, ranging from 0.1 seconds to 1 minute. Auto Fade a Single Channel Procedure: Notes: 1.
  • Page 24: Dmx In

    Auto Fade a Range of Channels (continued) Procedure: Notes: 4. Press [CH] [1] [-] [6]: AUTO FADE 3sec CH 1 -- 6 -> 40% 5. Press [ENTER] to select the speed: To change speed, use the ] keys. AUTO FADE 20sec CH 1 -- 6->...
  • Page 25: Recording An Emergency Backup Scene

    Recording a Emergency Backup Scene (continued) 2. Press the [ENTER] key: CH.SET 1--- 6 CH 1 -----= 0% 3. Press [HC] [1][6] [AT] [100] [ENTER]: Or use the keypad to set levels. CH.SET 1--- 6 CH 1 - 6-= 100% 4.
  • Page 26: Recording A Snapshot Scene

    Recording a Snapshot Scene (continued) 4. Enter a name using the keypad: Keypad numbers 0 - 9 represent the alphabet. See Alpha-Numeric chart Name: ABC below. KEYIN ENGLISH 5. Press [ENTER]: Scene is recorded. Alpha-Numeric Chart...
  • Page 27: Warranty

    Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option.
  • Page 28 © 2016 Leviton Mfg. Co., Inc. DI-000-N1000-05C...
