Multibrackets M Motorized Turn Mount Manual

10

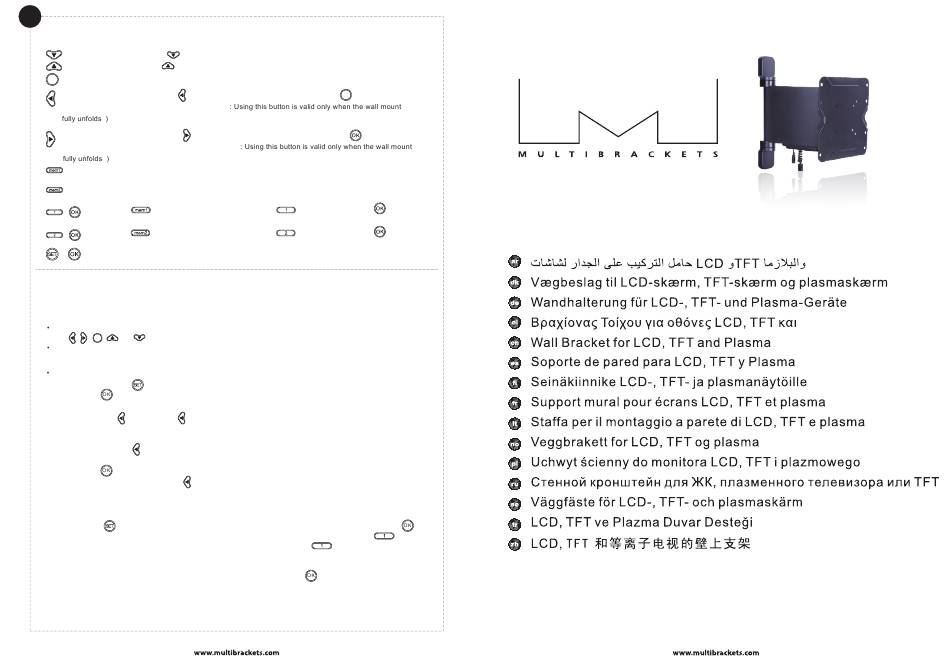

Buttons function instructions

Out button. Press and release . The TV wall mount will fully unfold.
In button. Press and release . The TV wall mount will automatically return to rest against the wall.
Stop button
OK
The left button. Press and release , the TV wall mount will swivel to the left until
TV wall mount swing to -30 degrees to stop.(Note
.
The right button. Press and release , the TV wall mount will swivel to the right until
the TV wall mount swing to 30 degrees to stop.(Note
.
Memory button1.Press and hold for 5 seconds, the buzzer will sound twice beep beep, LED light will turn
on for 1second, The memory is saved as location 1.
Memory button2.Press and hold for 5 seconds, the buzzer will sound twice beep beep, LED light turn on
for 1second, The memory is saved as location 2.
To recall the button(location 1). Press and release
+
The TV wall mount will automatically swivel to the location1 after the buzzer sounds once.
To recall the button(location 2). Press and release
+
The TV wall mount will automatically swivel to the location2 after the buzzer sounds once.
+
Learning button, Please read the instructions below for more info.

Learn mode operation instructions

The loss of matched remote control would result in TV wall mount being unusable. The LEARN MODE is used
to learn how to use TV remote (ONLY suitable for the TV remote of popular brands.) to control TV wall mount.
Note:
TV remote can't replace the all functions of matched remote control. Only LEARNING the five buttons functions.
With , , , and respectively.
OK
The user must follow the rules below when using the TV remote to control TV wall mount.
Select the alternate buttons from the TV remote, and the button that can't direct control the TV .
LEARN MODE instructions as shown below:
STEP1: Press and hold for 5 seconds until LED light on the matched remote control stays on, and then
press . The buzzer will sound once, the red LED light on the IR receiver will stay on, then the
LEARN MODE will be entered.
STEP2: If LEARN , please press on the matched remote control until the buzzer sounds twice,
the red LED light on the IR receiver will change from being steady to a slow flash.
STEP3: Aim the TV remote at the IR receiver, and press the button on the TV remote that you need to set as
the function of button until the buzzer sounds three times. the red LED light on the IR receiver will
change from slow flash to a fast flash.
STEP4: Press button on the matched remote control until the buzzer sounds four times. The red LED light
on the IR receiver will turn off. Button will be LEARNED successfully. If the buzzer only
sounds once, then a LEARN failure.(The TV remote won't support the LEARNING function).
(Please follow step1 through step4 in turn if the user need to LEARN more buttons)
Learn "Power" button on the TV remote:
Press and hold for 5 seconds until LED light on the matched remote control stays on , and then press
The buzzer will sound once, the red LED light on the IR receiver will stay on, then press and hold
on the matched remote control until the buzzer sounds twice, then release the
light on the IR receiver will change from being steady to a slow flash.
Aim the TV remote at the IR receiver, and press "Power" button. The buzzer will sound three times. The red
LED light on the IR receiver will change from slow flash to a fast flash. Press
remote control until the buzzer sounds four times. The red LED light on the IR receiver will turn off. "Power"
button will be LEARNED successfully. If press "power" button, the TV wall mount will automatically reset.
Note: When there is no activity for over 20 seconds in any step .TV remote will automatically exit from the
LEARN MODE.
7
OK is pressed or the
is pressed or
button, and then press button,
button, and then press button,
.
button
button. The red LED
button on the matched
M Motorized Turn Mount
