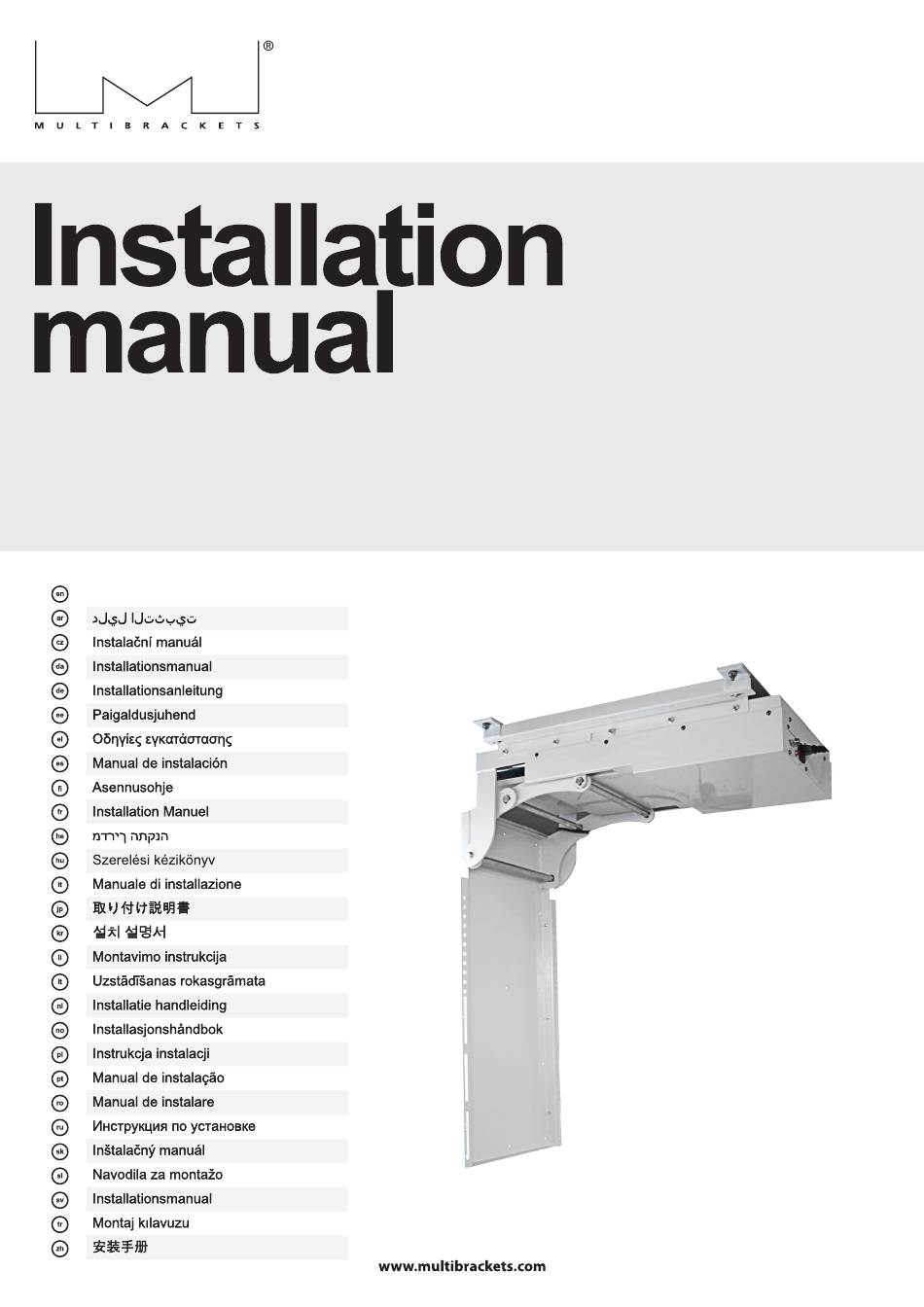

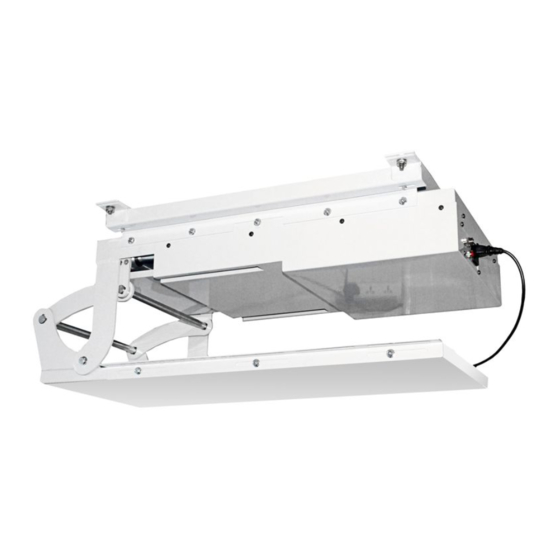

- Page 1 M Motorized Ceilingmount Inverted EAN: 7350073739585 Installation manual Szerelési kézikönyv...
- Page 2 IMPORTANT! UWAGA! VIGTIGT! SVARBU! TÄHTIS! IMPORTANT! ACHTUNG! tavan sau podea. IMPORTANT! FONTOS!
- Page 3 Parts Power cable Remote control Lift extension plate Short VESA extension Long VESA extension (x1) (x1) (x1) strips (x1) strips (x2) Ceiling suspension angle MZ 4.8 short screw Small screw (x4) (x22) (x8)
-
Page 4: Product Dimensions
Product dimensions Connectivity Manual switch Power interface connector Remote control learning key... -
Page 5: Installation Notes
Please pay attention to the screw holes on the back of your screen Suitable VESA: 200x200, 300x200, 300x300, 400x200, 400x400, 600x400, 600x600mm. Installation notes: Always consult a professional installer for mounting this ceiling mount Fix the mounting frame provided with the product in the ceiling through the expansion screws. - Page 6 Punch four (4) blast screw holes on the ceiling and fix them Product Please disassemble two (2) anti-vibration sheets when powering on The TV is flat on the flip frame installation The four (4) screws are fixed to the screen The decoration board and the flip frame are flattened Six (6) screws to fix the decoration board and the flipper...
-
Page 7: Remote Control
Remote control Operating instructions Buttons Front Rear Light indicator SETTINGS button STOP DOWN Battery Code matching mode for ceiling mount & remote control Manual switch Power interface connector First press the memory button on the panel, the indicator light starts to flash. Release the memory button (1), press the settings button (2) on the back of the remote control and hold it down. -
Page 8: Learn Mode
Upper position Learn mode How to set upper and lower ideal position Set the upper position Lower position We recommend to set the upper position first, then the lower position. You can always restart the position setup process by unplugging the power and follow the steps below again. The machine will always beep alarm sound the lower limit has been deleted successfully when... - Page 9 Up line Down line Earth lead Public line POWER INPUT Fire wire Null line Earth lead MANUAL SWITCH Up button Stop button Down button DC12V Public line Please always check online for the latest updated version of this manual www.multibrackets.com...
