Multibrackets 7350022734500 Installation Manual

M motorized swing mount large

Download this manual

Enlarged version

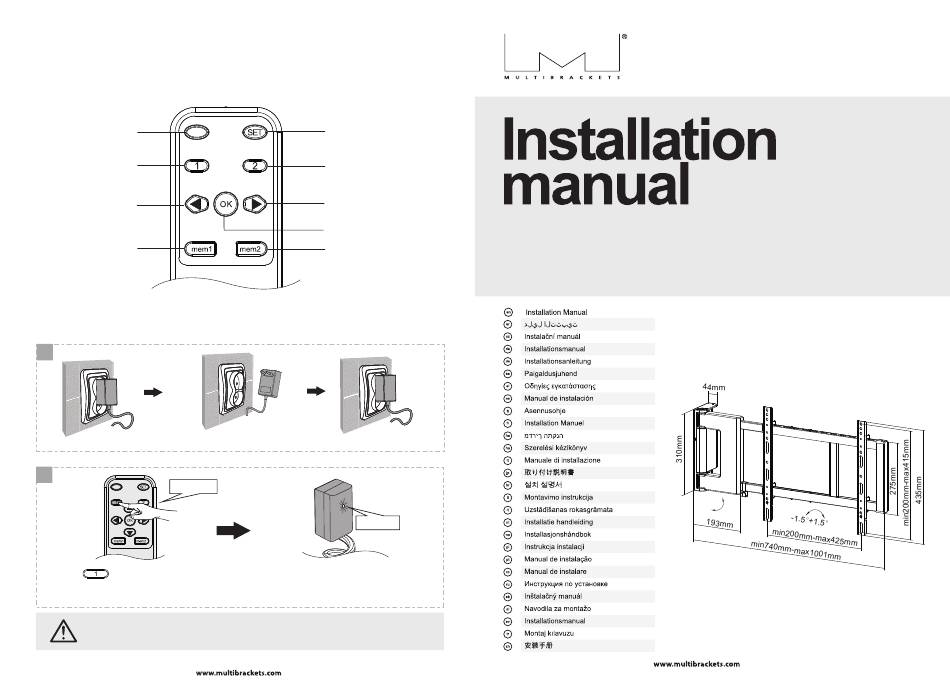

Factory Reset instruction

Light Indicator

Position 1

Open

Memory 1

remote control

Unplug and replug first

4 times

Press the

button on the remote for 3 seconds before releasing it. Please do not press any buttons before

this step or else the mount needs unplugging and replugging. Repeat this step for 4 times and the IR receiver LED

light will blink. The mount will find the minimum and maximum swiveling angle automatically.

Please keep the power on during the resetting.

Set button

Position 2

Stop

M Motorized Swing Mount Large

Memory 2

EAN: 7350022734500

flash

revision 1.0

Need help?

Do you have a question about the 7350022734500 and is the answer not in the manual?

Page 1 Position 2 Close Open Stop M Motorized Swing Mount Large Memory 2 Memory 1 EAN: 7350022734500 remote control Unplug and replug first 4 times ° flash Press the button on the remote for 3 seconds before releasing it. Please do not press any buttons before this step or else the mount needs unplugging and replugging.
Page 2 (x8) ST6.3x55 (x5) concrete anchor (x5) D6 washer (x3) 90° The content of this manual is subject to change without further notice. The latest version of this manual can be found online under the product name on the website:www.multibrackets.com...
Page 3 The swing arm needs to be adjusted according to the size of TV. TV(L)/2 +260mm L:The length of TV 4-2b (740mm < X < 1001mm) √ Wall 4-2a √...
Page 4 90° 90° M-C/M-D/M-E M-D/M-E M-D/M-E 90°...
Page 5 Do not open the cover please. REMOTE CONTROL OPERATION Connect the TV mount to power, then press the " " button. After the TV mount adjusts to the position that aligns with the wall, you can operate the remote control. REMOTE CONTROL BUTTON EXPLANATION STOP BUTTON Stop the movement of the TV mount.
Page 6 LEARN MODE (A): LEARN MODE (B): How to program “Power” button on How to program the buttons of TV remote For this progamming For this progamming sequence the included sequence two remotes the TV remote? with the included remote control? remote is needed! are needed! •...
