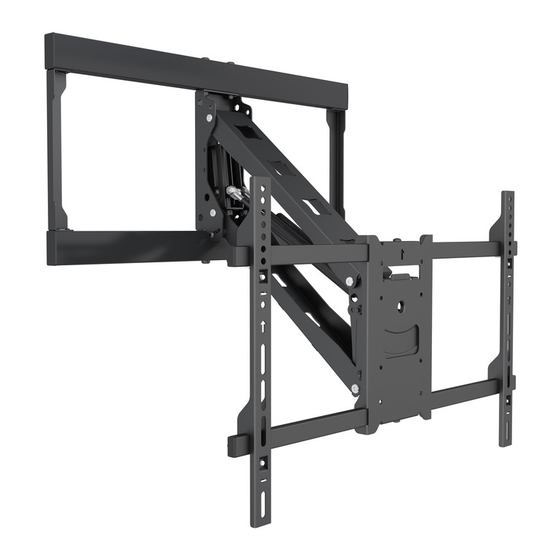

- Page 1 M Pull Down Full Motion Flexarm EAN: 7350073736744...
-
Page 4: Package Contents
INTRODUCTION Mount your television conveniently above your fireplace using this Above Fireplace Mount. It is capable of supporting televisions with VESA patterns from 100x100 and 600x500 and weighing between 11~62 lbs (5~28kg). The mount allows you to keep the TV safely up and out of the way when not in use, then you can pull it down to eye level for comfortable viewing. -
Page 5: Required Tools
A: M5 x 15 mm B: M5 x 30 mm C: M6 x 15 mm D: M6 x30 mm E: M8 x 20 mm F: M8 x 35 mm G: M8 x 50 mm H: M5 / M6 I: 5 mm J: 13 mm K: M8 x 70mm L: M8... -
Page 6: Installation Considerations
INSTALLATION CONSIDERATIONS Warning Ensure that the mounting surface can safely support the combined weight of of the assembled mount and installed. The temperature at the front of the fireplace mantle must never exceed 110°F (43°C). The wall to which this mount will be attached must be a wood stud type, with studs spaced no more than 24"(609mm) apart. -
Page 7: Installation
4. This mount is intended for flat screen televisions (LCD, LED, Plasma) only. The mounted television should be between 42 ~ 65" and weigh between 11~62 lbs. 5. The vertical space above the mantle must be greater than the height of the wallboard .The required vertical space depends on how far the mantle extends out from the wall. - Page 8 WOOD Reference the step 5 at the page 6...
- Page 9 BRICK OR CONCRETE Reference the step 5 at the page 6 10mm...
- Page 11 Socket Wrench 1/2”Socket BRICK CONCRETE WOOD Socket Wrench 1/2”Socket...
- Page 12 Lock the arm A - G I - J...
- Page 13 W/O Sound With Sound...
- Page 14 Please adjust the Handle distance to the height of the sound...
- Page 16 Release 90° Keep the TV’s height in this angle. Adjusting the force value in this state is the easiest. Adjustable the bracket’s constant force “ + ” :Increase the constant force “ - ” :Reduce the constant force Attention: The weight of the TV set in the weighing range A: The TV sets can be hovering at any height, don not need to adjust.
- Page 17 B: The TV sets up Turn to “ ” Adjust until free hovering C: The TV sets down...
- Page 18 Turn to “ ” Adjust until free hovering Height adjustment 230mm Level adjustment ±5°...
- Page 19 Tilt adjustment -5 ~ +10° Swivel ±30°...
- Page 20 wire cable Cable ties Cable ties Pull in the cover plates...
