Multibrackets 7350073738748 Installation Manual

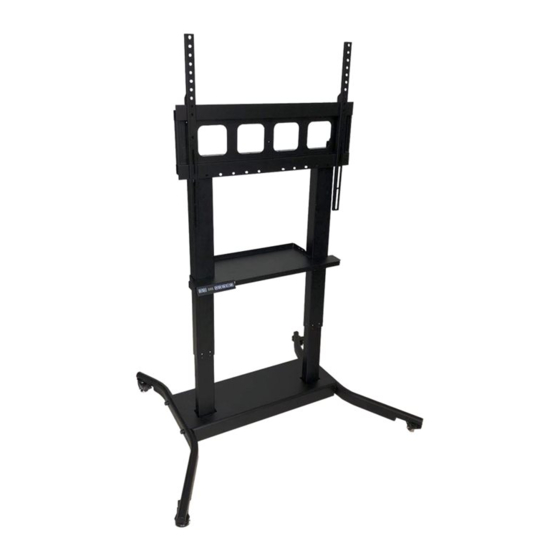

M motorized public floorstand 160kg black sd

Download this manual

EAN: 7350073738748

Need help?

Do you have a question about the 7350073738748 and is the answer not in the manual?

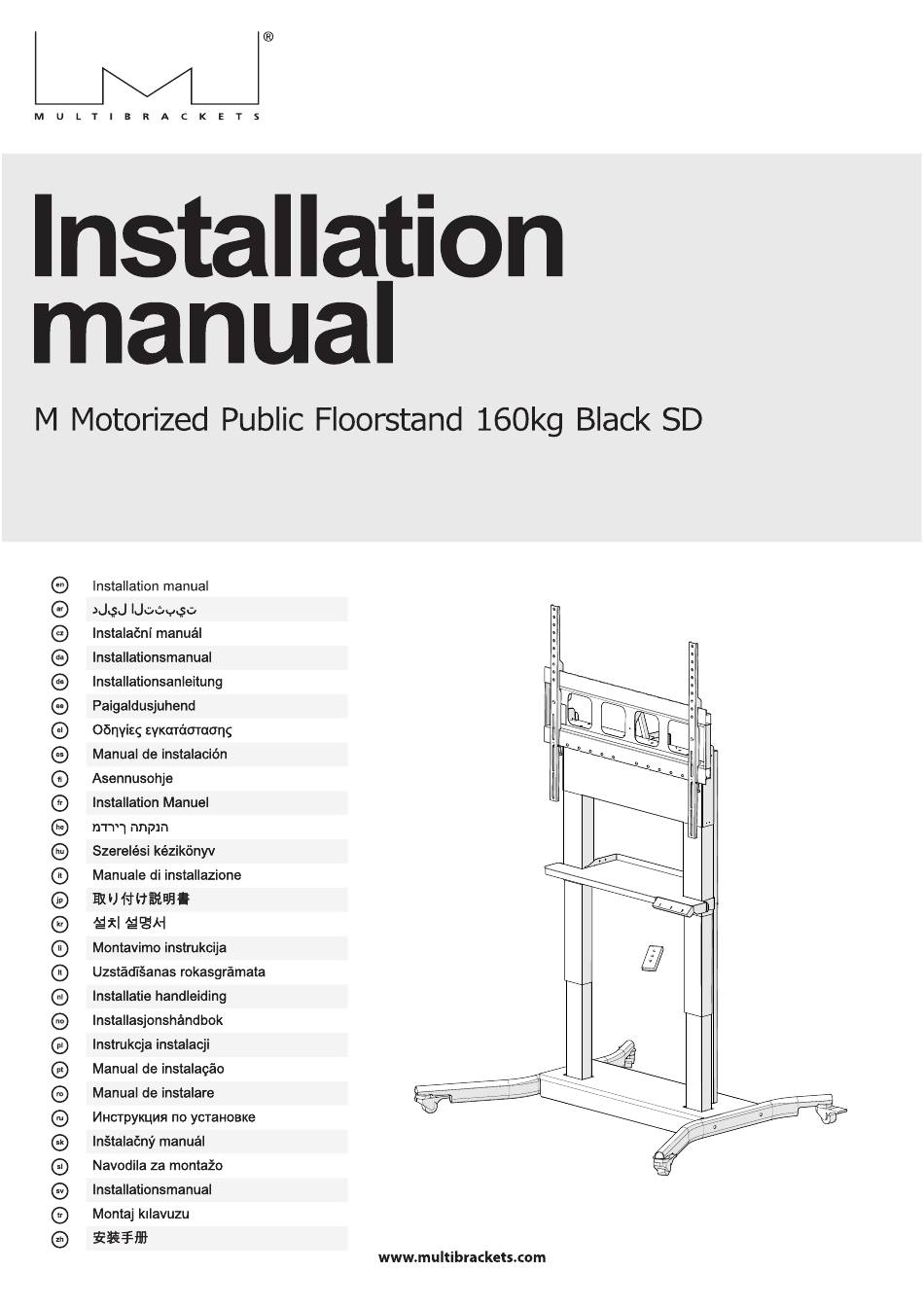

Page 1 EAN: 7350073738748...
Page 2: Safety Instructions
Safety instructions Read and understand all instructions, and operate in strict accordance with the instructions. Please ask the installation personnel to assemble the mobile frame and at least two professionals to install the TV. Note: if the installed TV exceeds the rated load, personal injury may be caused. Do not install the mobile cart near the place with plenty of water or high humidity.
Page 4 Installing the foot Wired remote Front side control Front Back 500mm 340mm First remove the screw C indicated by the arrowAnd washer E，There The direction of the feet can't be wrong are 4 left and right. Install TV TV hole spacing：H:100/200/300/400/500/600mm V:200/400/600mm According to the actual situation of TV screw hole, select the appropriate screw.
Page 5 Don't pull out the plug when the cart is working, Caution or the remote control will show an error message. If the remote control displays an error message “ER1" or “ER2" during the lifting process, Press Wired remote control ) untill“res”shows up. Wired remote control Kee pressing ) and release it after 1or 2 seconds,...
Page 6: Product Information
Flippable Electrical Mobile Cart Product information Model 45k g Net Weight Maximum Load 1 20 kg (Lift up/down) 0°90° Flip Angle 80kg Maximum Load(Flip) 770mm-1420mm Height Adjustment 40"-70"(16:9 wide screen) Applicable TV Size LR23A Battery Type...
