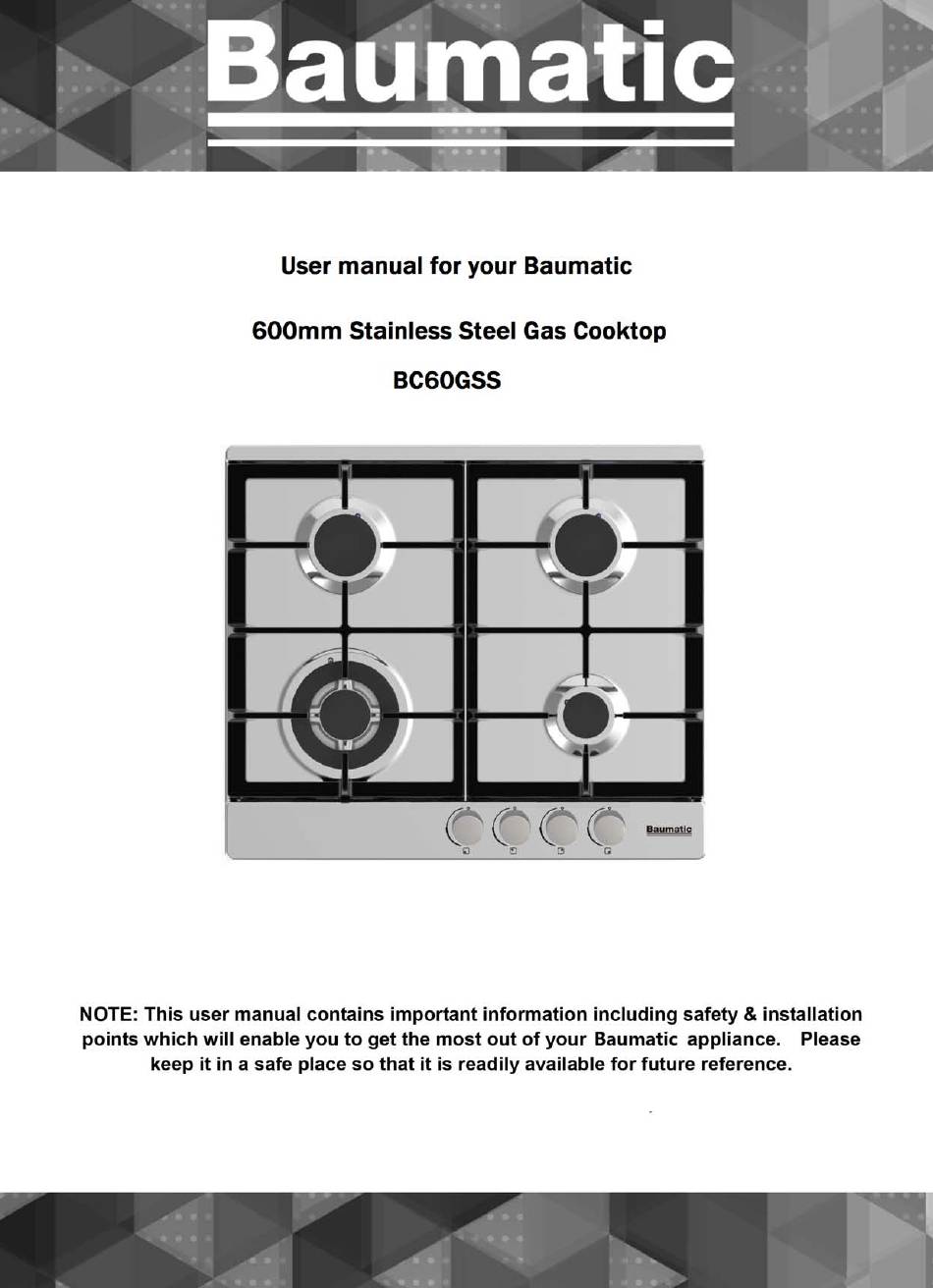

- Page 2 Where to find your model number and serial number Your appliance has a data plate that provides identifying information that is important to know when registering your purchase online and for service. You can find the data plate on the underside of the appliance.
- Page 3 Preface Thank you for choosing our gas cooktop. To use this appliance correctly and prevent any potential risk, read these instructions before using the appliance. If you are unsure of any of the information contained in these instructions, please contact customer care centre The manufacturer shall not be responsible for any damages to persons or property caused by incorrect installation or use of the appliance.
-
Page 4: Table Of Contents
contents Preface Safety Warning Safety Instructions Installation Child and People Safety During Use Cleaning and Service Environmental Information Instructions for use and maintenance Description of the appliance How to Use the appliance Safety and Energy saving advice Cleaning and Maintenance Technical instructions Usage instructions Positioning... -
Page 5: Safety Instructions
safety instructions Please take the time to read this Instruction Manual before installing or using the appliance. If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user. accident caused by misuse in advance, and use the appliance more conveniently. Neglect of this mark may result in severe personal injury or Danger/Warning death. -
Page 6: Installation
installation Warning accordance with regulations in force gas and electrical supply complies and only used in a well ventilated with the type stated on the rating space. plate. marine craft or in caravans, it should not must be installed in such a way that be used as a space heater. -
Page 7: Child And People Safety
child and people safety Warning The appliance gets hot when it is in use. Children should be kept away until it has cooled. Caution from using the appliance safety without supervision or instruction by a responsible person to ensure that they can use the appliance safety. -
Page 8: During Use
during use Warning Burner panel is not designed to operate food. from an external timer or separate remote control system. comes The use of a gas cooking appliance results in the production of heat and moisture in contact with water. Do not operate the room in which it is installed. - Page 9 during use materials in the storage drawer aerosols may be affected by heat and should not stored above or below the near this appliance. appliance. this appliance while it is in operaiton. ‘ ’ position when not in use. Caution industrial purposes.
-
Page 10: Cleaning And Service
cleaning and service Warning cleaning agents. repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used. Caution and cooled. clean the appliance. environmental information with due regard to safety and the environment. unusable, by cutting off the cable. disposed with other household wastes at the end of its working life. -
Page 11: Description Of The Appliance
BC60GSS Model ast Iron Pan Support Cast Iron included W ok pan Support T op Plate(Glass) Stainless Steel *500*90 Di m m ension(W*D*H) I gnition device Push to ignite G as Connection 0-240 V ,50Hz E lectric suppl y... -
Page 12: How To Use The Appliance
description of the appliance Packing List Voltage regulator Screw BT4*14(4) Bracket ( 4 ) Sealing strip ( 4 ) valve(1) I nj ector ( 4 ) Gas cooktop including trivets Pressure joint(1) Wok stand(1) Instruction Manual(1) how to use the appliance Before First Use: You should ignite on burner at a time, for 5 minute at the maximum setting. - Page 13 how to use the appliance To ignite a burner: o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position. o If you keep the control knob depressed, the automatic ignition for the burner will operate.
-
Page 14: Safety And Energy Saving Advice
safety and energy saving advice - The diameter of the bottom of the pan should correspond to that of the burner. BURNERS of the 1 5mm 270mm burner. Rapid 195mm 2 0mm any cookware item Semi-Rapid 140mm that exceeds a weight of 14kg. 80mm 195mm lid half off... -
Page 15: Cleaning And Maintenance
cleaning and maintenance completely Metal Brush Nylon Brush Soft cloth Detergent Neutral Detergent knobs knobs water. For stubbon soiling, soak beforehand. wrung-out the risk of corrosion. normal because of the high temperatures. For persistent marks these parts should be cleaned with a product that is suitable for stainless steel. - Page 16 cleaning and maintenance from the top plate. detergent or washing up liquid cloth and wipe dry with a clean cloth. blocked. Please note that, burner output can only be adjusted by the installer. 1 2 3 into their respective recesses.
-
Page 17: Usage Instructions
usage instructions Warnings Grease cranes produced at the factory to meet the requirement of all life hob. -
Page 18: Positioning
positioning o The edges of the hob must be a minimum of 60mm from the rear wall and any vertical surface to the sides. Additionally, the rear wall must either be non-combustible or clad as per Table C1 (Appendix C) of ASNZS 5601.1 o 700 mm between the highest point of the hob surface (including the burners) and the underside of any horizontal surface directly above it. -
Page 19: Installing The Appliance
installing the appliance appliance upside down and place it on a cushioned mat. supervision devices are not damaged in this operation. 2. Apply the stealing strip provided around the edge of the appliance. 3. D o not leave a gap in the sealing strip or overlap the thickness. -
Page 20: Gas Connection
gas connection Statutory requirements This installation must conform with the following: ■ Manufacturer’s Installation instructions ■ Local Gas Fitting Regulations ■ Municipal Building Codes ■ Refer to AS/NZS 5601.1 for Gas Installations ■ S.A.A. Wiring Code ■ Local Electrical Regulations ■... -
Page 21: Gas Specifition
gas specification ■ Flexible Ho se: If installing with a hose a ssembly, it mu st comply with AS/NZS 1869, 10 m m ID, class B or D, no mo ore than 1 long and ins talled in accordance with AS/NZS 5601.1. -
Page 22: Electrical Connection
electrical connection - Green/yellow = Earth - Blue = Neutral - Brown = Live When the power cord is damaged it must be replaced by the manufacturer to produce, customer service agent or similarly qualified personnel. -
Page 23: Gas Adustment
gas adustment injector in place. Injector Adjustmen n t of minimum le e vel of the flame e Tu u rn the taps down to minimum R R emove the knob from the tap and place a small bladed screwdriver in the centre of the tap shaft. The correct adjustment is obtained when the flame Control handle has a length of about 3 - 4 mm. -
Page 24: Troubleshooting
trouble shooting Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. If your cooktop needs repair, contact our service centre or your dealer. No Spark. Check the electricity supply Not ignited The gas supply is closed. - Page 25 Guarantees Acts 1993. 5. That the product was purchased and installed in For Service please visit baumatic.co.nz/service or contact New Zealand; the dealer/retailer from whom you purchased the product 6. That this warranty does not extend to: from or call the 0800 number listed below.
- Page 26 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.baumatic.co.nz...
