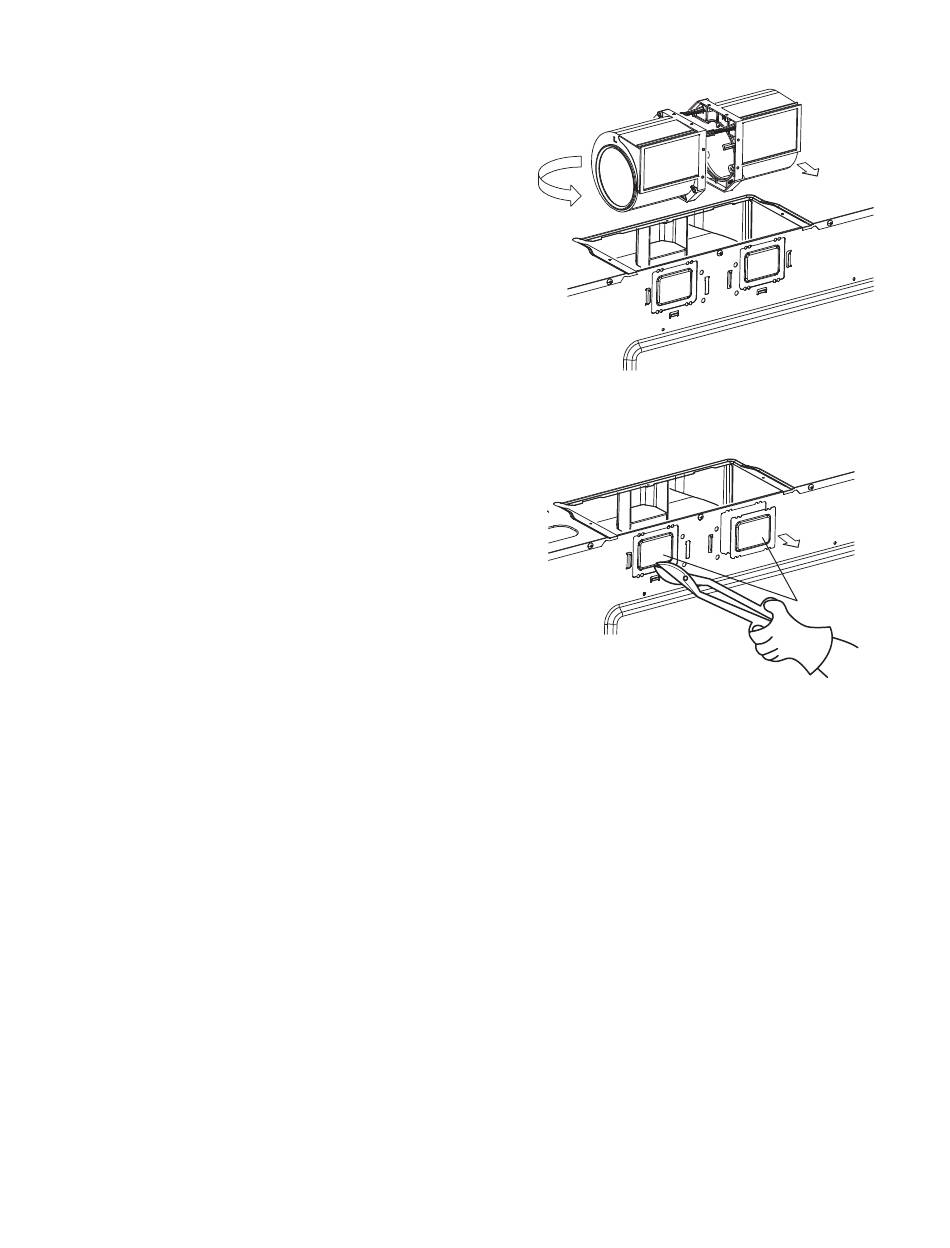

Step 3.
After : Fan blade openings facing Rear
Turn the blower unit so that the fan blade openings
are facing back ( rear of unit ). See Figure 9.
CAUTION: Wires to blower unit must be routed
properly to avoid pinching wires before reinstallation
of cover plate.
Turn the blower motor clockwise 180˚
Figure 9
Use side cutters or tin snips to cut and remove parts B
from back plate. be careful not to distort the plate.
See Figure 10.
Parts B
Figure 10
5
