Step 4.
Then insert a bolt down through each hole in the upper
cabinet bottom.

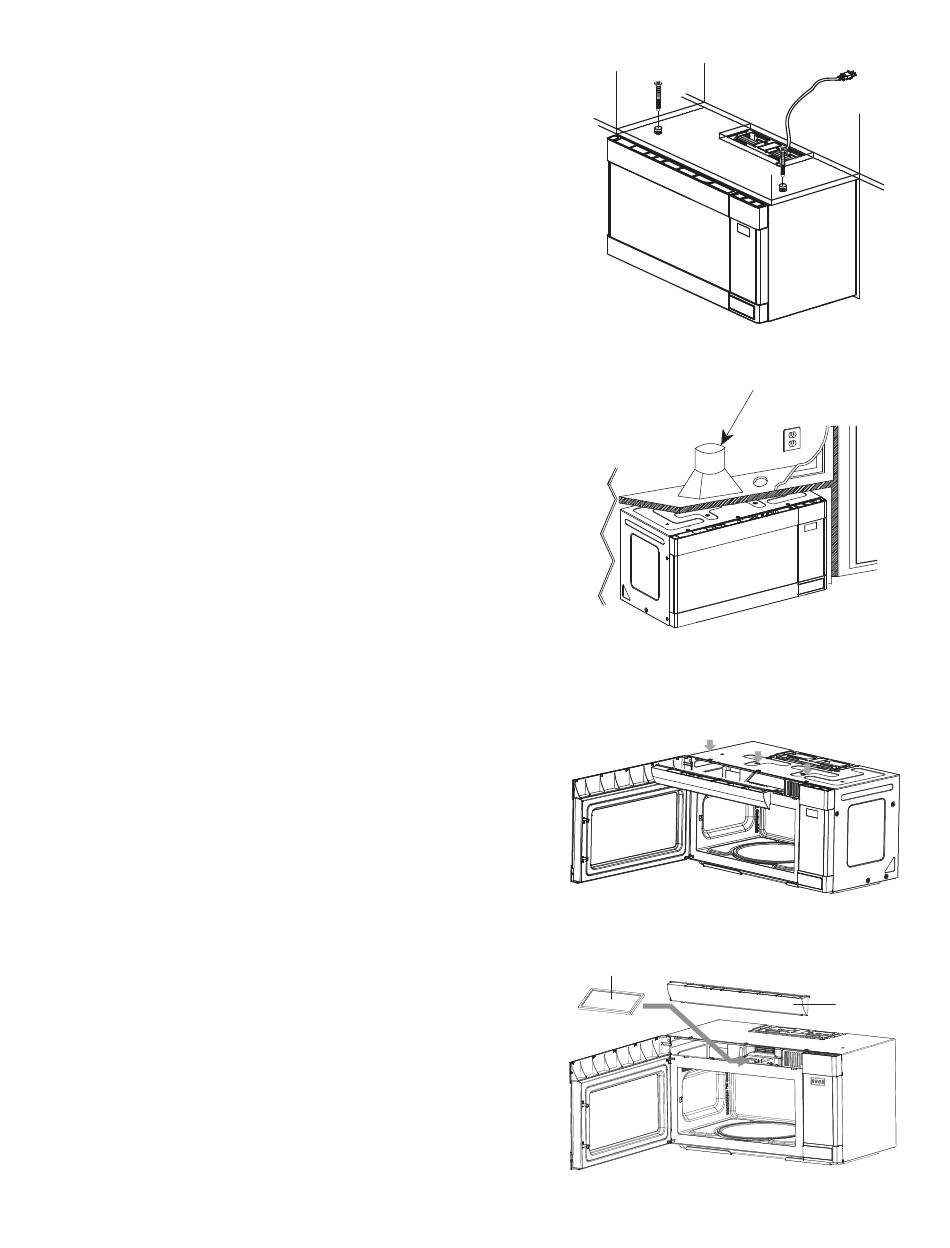

Tighten the bolts until the gap between the upper cabinet
and microwave oven is closed. See Figure 24.

Connecting Ductwork

Extend the house duct down to connect to the exhaust adapter.
Seal exhaust duct joints using duct tape.
How to replace the Charcoal filter
1. Unplug the oven or turn off the power at the main power
supply.
2. Remove the grille air mounting 3 screws and open the
door. See Figure 26.
3. Slide the grille air to the left, then pull it straight out.
4. Push the charcoal filter backwards and remove it.
5. Slide a new charcoal filter into place. The filter should rest
at the angle. See Figure 27.
6. Replace the grille air and 3 screws and close the door.
7. Plug the oven in or turn on the power at the main power
supply.
Install the grease filters
CHARCOAL FILTER
10
Figure 24
House Duct
Figure 25
Figure 26
GRILLE AIR
Figure 27
