Merlin WingMate 3 Installation And Operation Instructions Manual

Articulated swing gate opener
Hide thumbs

Advertisement

Table of Contents

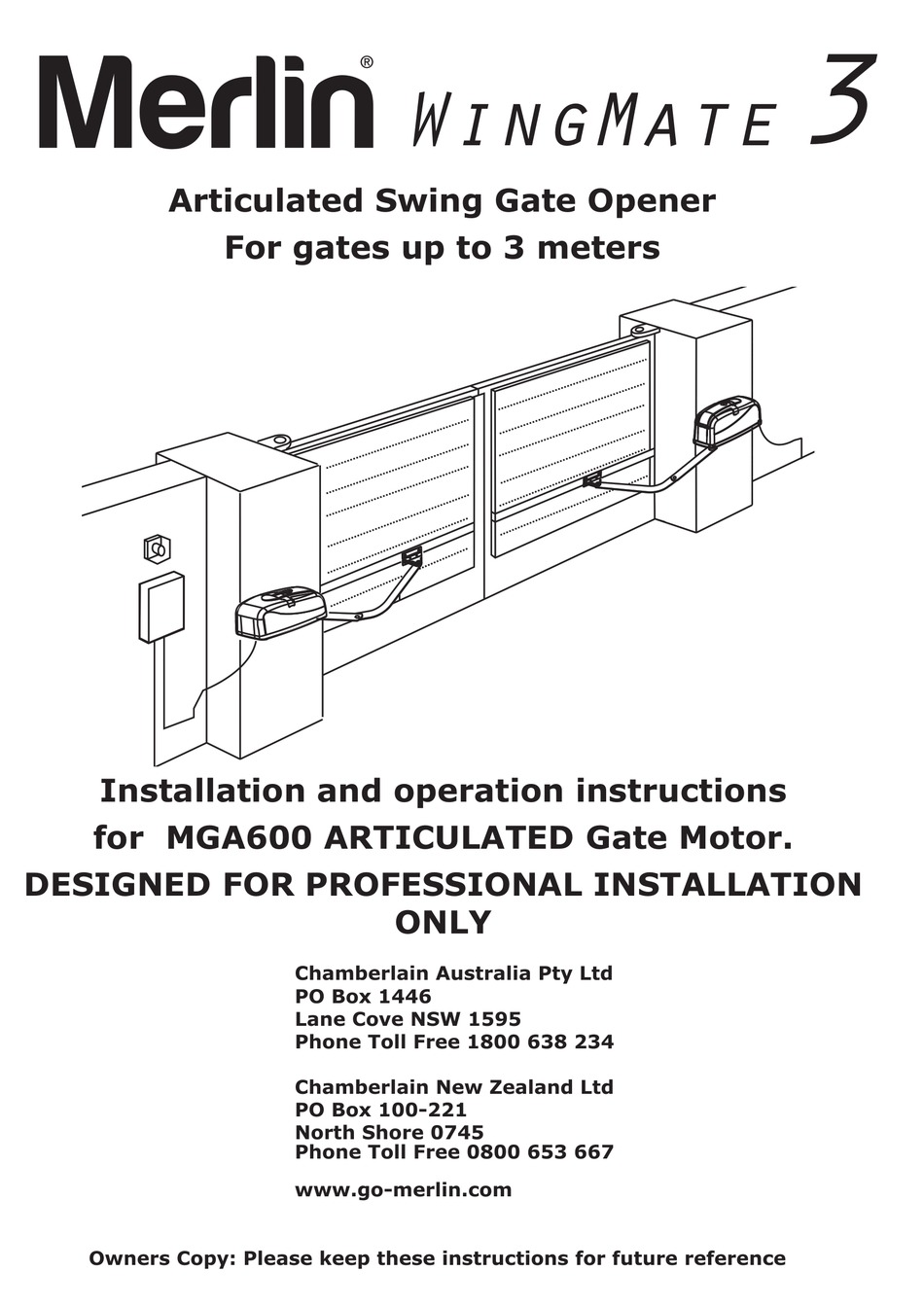

3
WingMate
Articulated Swing Gate Opener
For gates up to 3 meters
Installation and operation instructions
for MGA600 ARTICULATED Gate Motor.
DESIGNED FOR PROFESSIONAL INSTALLATION
ONLY
Chamberlain Australia Pty Ltd
PO Box 1446
Lane Cove NSW 1595
Phone Toll Free 1800 638 234
Chamberlain New Zealand Ltd
PO Box 100-221
North Shore 0745
Phone Toll Free 0800 653 667
www.go-merlin.com
Owners Copy: Please keep these instructions for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WingMate 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Merlin WingMate 3

Summary of Contents for Merlin WingMate 3

  • Page 1 Chamberlain Australia Pty Ltd PO Box 1446 Lane Cove NSW 1595 Phone Toll Free 1800 638 234 Chamberlain New Zealand Ltd PO Box 100-221 North Shore 0745 Phone Toll Free 0800 653 667 www.go-merlin.com Owners Copy: Please keep these instructions for future reference...
  • Page 2 IMPORTANT ADVICE: THESE INSTRUCTIONS ESSENTIALLY DESCRIBE THE INSTALLATION OF THE MGA600 DRIVE WITH THE ACCES- SORY ARM ART-3, FOR INSTALLATION ON A SWING GATE IF THE ART-1 FOLDING GATE ARM OR THE SPACE-SAVING ART-2 GATE ARM ARE INSTALLED IT IS ESSENTIAL TO FOLLOW THE IN- STRUCTIONS INCLUDED WITH THOSE ITEMS.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S WARNINGS BASIC CONTROL BOARD SETUP Warnings and Precautions ......1 BiPart Delay .

  • Page 4: Installation Checklist

    INSTALLATION CHECKLIST - PREPARATIONS Check the carton contents and read the instructions carefully. Make sure your gate equipment operates perfectly. The gate must run evenly and smoothly and must not stick at any point. Remember that the ground level may be several centimeters higher in winter.
  • Page 5 MOUNTING REQUIREMENTS The gate drive mechanism is suitable for use in conjunction B=60-70cm with pillars with a max. thickness of 30cm. The amount of 7-8 cm = 90° max. 10 cm room around the pier affects the opening angle and the po- sition of the arms.

  • Page 6: Manual Release

    Step 3 Mounting the motor to the Wall Bracket. Once the Wall Bracket has been mounted, the drive can be fitted. The drives can be used left or right without conver- sion. Using the hardware provided fit the Base Plate onto the Wall Bracket.
  • Page 7 Step 6 Fit the Gate Arm. Use the Relase Key provided in your hardware bag to Disenage the Motor by turning the Hex head nut located on the top of the motor. Assemble your Gate Arm and fasten in place using the bolt and washer provided.

  • Page 8: Safety Installation Information

    S A F E T Y I N S T A L L A T I O N I N F O R M A T I O N Warning - To reduce the risk of SEVERE INJURY or DEATH from an incorrect installation: 1.
  • Page 9 C A R T O N I N V E N T O R Y S P E C I F I C AT I O N Main Output (Motor) 12vdc Battery run,Operational CB12ANZ CONTROL BOARD KIT between 11vdc and 14vdc. 1x PVC –...

  • Page 10: Mount The Control Box

    Mount the Control Box The control box MUST be mounted within 1.5m of the gate operator. Mount the control box as high as possible for best radio reception 1. Open the Control Box Remove the screws and open the box. 2.
  • Page 11 Square Gate Post Wall Concrete Anchor U-Bolt (Not Provided) Screw 4. MOUNT THE CONTROL BOX Secure the control box to mounting surface (post, wall, column, etc.) using the four fixing screws provided. If fixing to masonary or tube steel you will require additional hardware (not provided). Antenna IMPORTANT NOTE: Waterproof all knockout holes using silicon sealant.
  • Page 12 Please observe the WARNINGS outlined on Pages 1 and 7 of this manual. Watertight Connector Nut (Provided) C au C an e at at an in g ov e ry o a y m M ov In ju te m ga te R! Ga wa rn...
  • Page 13 3. CONNECT OPERATOR TO CONTROL BOARD Extend operator cable and wires to GATE 1 connector and connect as shown. Tighten watertight connector nut. IF INSTALLING ONE OPERATOR, PROCEED TO PAGE 15. If installing two operators, continue to the next page. R223 CLOSE EDGE...
  • Page 14 1. CONNECT SECOND OPERATOR TO CONTROL BOARD MGA600 NOTE: Junction box and extension kit part number JB12M is included in the slave kit (MGA600S) for this function. • Before digging, contact local underground utility locating companies. • Trench across driveway to bury the extension cable. •...
  • Page 15 Transformer...

  • Page 16: Programming

    I I R R S S A A F F E E T T Y Y B B E E A A M M S S 7 7 7 7 2 2 A A N N Z Z IR Safety Beams are recommended to reduce the risk of personal injury and ve- hicle damage.
  • Page 17 CONNECTING OPTIONAL SOLAR PANEL (NOT SUPPLIED) If you are using a SOLAR PANEL, the Transformer MUST be unplugged and removed. Terminate the Solar Panel into the AC PWR/SOLAR Terminals as illustrated below. NOTE: Solar Panel should be 12 Volt, up to 30 Watt with class 2 output. Two batteries are also recommended for solar systems.
  • Page 18 CONNECT BATTERIES The batteries are charged in circuit by using the transformer (provided). Locate the two white battery plugs on the left-hand side of the control box. Connect the plug from the battery to connector on the control board. Either connector can be used for a single battery. NOTES: Batteries will degrade over time depending on temperature and usage.
  • Page 19 S S E E T T T T I I N N G G T T H H E E C C A A M M S S F F O O R R M M G G A A 6 6 0 0 0 0 The CAM switches must be set before proceeding with any programming.
  • Page 21 NOTES: left right...

  • Page 22: Force Setting/Timer To Close/Party Mode

    TIMER TO CLOSE TTC OFF MAXIMUM time 180 seconds...
  • Page 23 C840...

  • Page 24: Operation Of Your Gate Opener

    OPERATION OF YOUR GATE OPENER MANUAL RELEASE The release lock for the casing is located under the rubber weatherproof cover. Use the socket spanner supplied in the hardware bag to lift the cover up. The release key located be- neath the hood should be inserted into the side openings and turned approx.
  • Page 25 CAUTION! Transformer 240 VAC...

  • Page 26: Wiring Diagram

    C C O O N N T T R R O O L L I I N N P P U U T T S S Refer to Wiring Diagram on page 24. CONTROL WIRE STOP BUTTON (OPTIONAL) INPUTS OPEN SINGLE BUT TON A jumper wire is factory installed between the stop and RESET...

  • Page 30: Diagnostics

    SYMPTOM POSSIBLE SOLUTION Gate opens but does not • An open input is continuously activated. Check the open loop or vehicle probe to . s t y f i • Low battery. Measure the voltage across the battery. Voltage should be above 11.5Vdc.
  • Page 31 S S P P A A R R E E S S 041ASLG-0054K 041AART-1003SA 041AART-0010 041AART-0002 041AART-1025SA 041ASWG-0454 041AART-0063SA 041ABSC-0017 041ABSC-0027 041ABSC-1011 041AART-1005 041AART-1022SA 041ABSC-1010 041ABSC-0005 041AART-0003 041AART-0007 ART-6 ART-3AL ART-2 041AART-1002SA 041AART-1004 Antenna 001C3196-3 K001A6426...

  • Page 32: Warranty

    Chamberlain’s warranty the Unit or its supply are excluded to the extent that Chamberlain Chamberlain warrants to the original purchaser of the Merlin® Swing can lawfully exclude them; and Gate Opener (Unit) that all parts of the Unit, other than remote con-...
