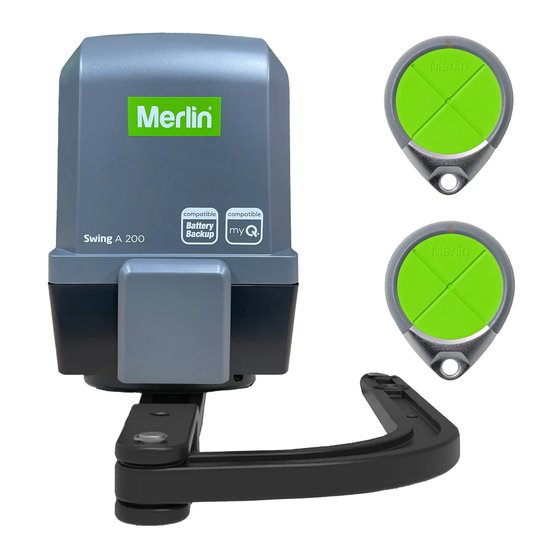

Articulated Arm Swing GateOpener
(MGASK / MGADK / MGASK-LV / MGADK-LV)
Installation and Operating Instructions
Visit the Swing A 200 landing pages for:
•
Product features
•
Purchase compatible accessories
•
Handy tips & how-to videos
•
Digital copy of this manual
•
Register your warranty
Owners Copy: SAVE THESE INSTRUCTIONS for future reference
DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY
MGA
This manual contains IMPORTANT SAFETY information
Advertisement
Table of Contents
Related Manuals for Merlin Swing A200 MGA Series
Summary of Contents for Merlin Swing A200 MGA Series

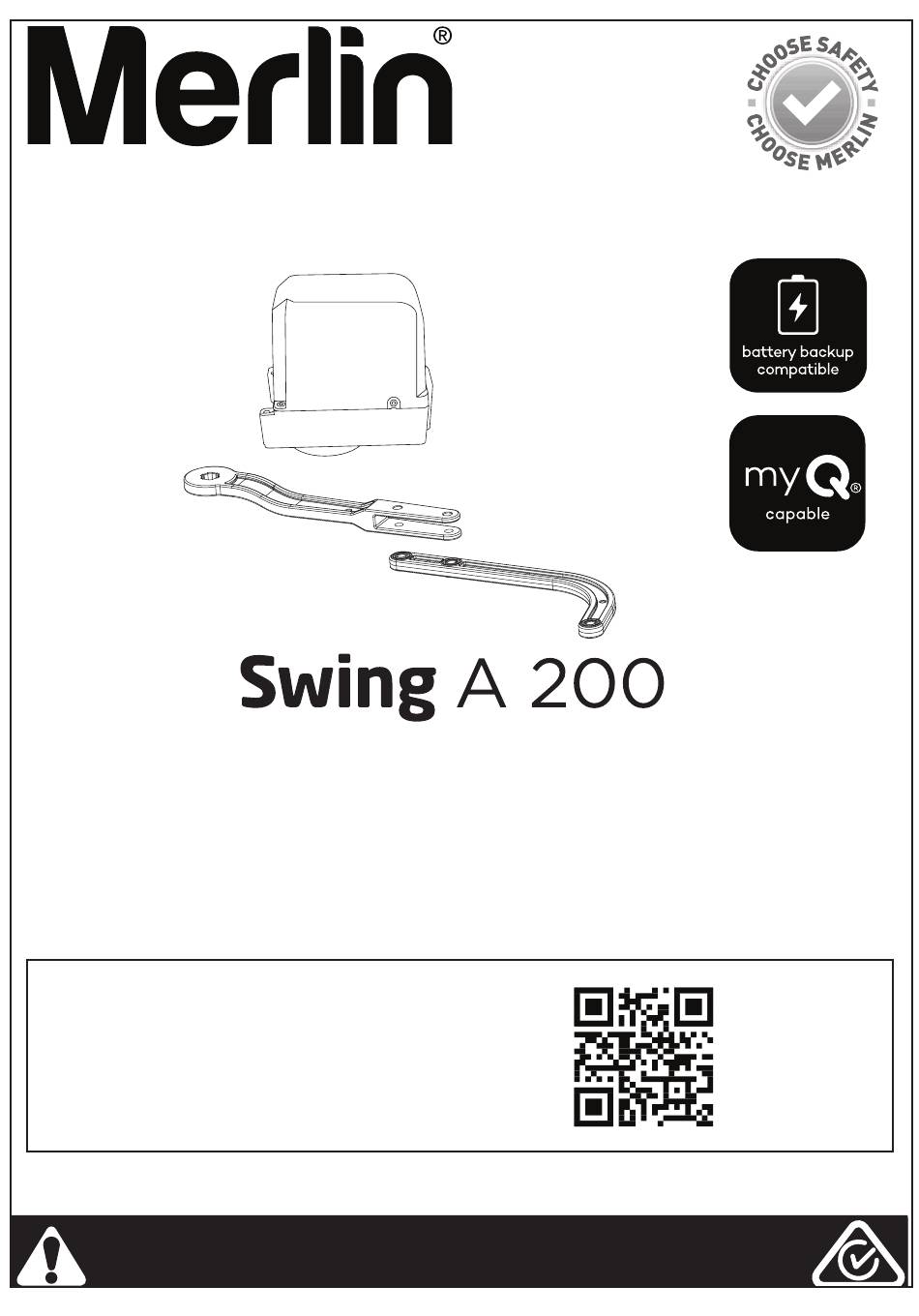

- Page 1 gomerlin.com.au gomerlin.co.nz Articulated Arm Swing GateOpener (MGASK / MGADK / MGASK-LV / MGADK-LV) Installation and Operating Instructions Visit the Swing A 200 landing pages for: • Product features • Purchase compatible accessories • Handy tips & how-to videos • Digital copy of this manual •...
-
Page 2: Safety Instructions
AS/NZS 60335.1 in conjunction with AS/NZS 60335.2.103. Only Merlin genuine and approved accessories may be connected to the gate opener. Incorrect installation and/or failure to comply with the following instructions may result in serious personal injury or damage to property. - Page 3 SAFETY INSTRUCTIONS During operation, the gate should not under any circumstances obstruct public path ways and roads (public area). When using tools and small parts to install or carry out repair work on a gate, exercise caution and do not wear rings, watches or loose clothing.
-
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ............................2-3 INTRODUCTION ...............................5-10 Specifications ......................................5 Sales Kit Inventory .................................... 5-6 Tools Needed ......................................7 Overview of Gate Operator ................................7-8 Planning......................................9-10 INSTALLATION ...............................11-13 Installing the Post Bracket ...................................11 Opener Arm Mounting ..................................11 Disengagement of the Manual Release ..............................12 Attach the Opener and Determine the Position of the Gate Bracket ....................12 Adjust Travel Distance ..................................13 WIRING ..................................14-17... -
Page 5: Introduction
INTRODUCTION SPECIFICATIONS – SWING A 200 – MGASK / MGADK / MGASK-LV / MGADK-LV Main AC Supply:…….…………………...……….…………….220-240 Vac; 50/60 Hz Motor Voltage: …………..…………………..………………….24 Vdc Input Power (single arm): .…………..…………………..……100 W Ambient Temperature Range: …………..…………………...-20 ~ +55˚C Maximum Weight for single Gate..…………..………………200 kg /1.5 m, 150 kg/2 m, 100 kg/2.5 m Maximum Width for single Gate..…………..………………..2.5 m Maximum Pull Force:…………………………….....………….200 Nm Maximum Open Angle: …………..…………………..………..120˚... - Page 6 INTRODUCTION SALES KIT INVENTORY – MGADK MAINS VOLTAGE 240V OR MGADK-LV LOW VOLTAGE 24V SWING GATE ARTICULATED ARM DUAL KIT Your gate opener is packed in separate cartons. The Swing A 200 MGADK or MGADK-LV opener sales kit contains the opener, its hardware, accessories and a transformer MGTR1-96VA (only for the MGADK-LV sales kit).
-
Page 7: Tools Needed
INTRODUCTION TOOLS NEEDED OVERVIEW OF THE GATE OPENER MGASK – MAINS VOLTAGE 240V SWING GATE ARTICULATED ARM OPENER SINGLE KIT OR MGASK-LV – LOW VOLTAGE 24V SWING GATE ARTICULATED ARM OPENER SINGL E KIT Single Swing Gate Transformer Box mounted near 240V Remote power supply Control... - Page 8 INTRODUCTION INSTALLING THE WARNING LABELS WARNING Warning Label is provided with each sales kit (MGASK, MGADK, MGASK-LV & MGADK-LV). The warning label must be placed on the inside of the post. Moving Gate Can Cause Serious Injury Or Death Persons are to keep clear! The gate is able to be moved without prior warning.
-
Page 9: Planning
INTRODUCTION Before installing the gate opener, ensure that the gate is opening smoothly. Determine the dimensions based on the opening angle provided in Table 1 (below) to confirm the position where the post bracket will be mounted. Ensure that all the required cables (power cable, accessory cables etc) are prepared and laid correctly. NOTE: All crushing points must be secured by suitable entrapment protection devices as per the requirements in AS/NZS 60335.2.103. - Page 10 INTRODUCTION PLANNING CONTINUED Dimensions Installation Dimensions (Articulated) Installation Dimensions (Optional Straight Arm) max. 120° min. 420 mm Opener Dimensions Table Opening Angle 90° 150-300 390-540 0-200 120° 300-350 300-350 0-25 Dimensions of Gate Operator 1.5m 200kg 2.0m 150kg 2.5m 100kg 265 mm 175 mm Gate Bracket Dimensions...
-
Page 11: Installation
INSTALLATION INSTALLING THE POST BRACKET Using the post bracket as a reference, mark and drill the holes for the post bracket (figure 1). Attach the post bracket to the post using appropriate fixings. Masonry fixings are supplied, if required. The correct fastening material must be used based on existing installation (building / material substance). -
Page 12: Disengagement Of The Manual Release
INSTALLATION DISENGAGEMENT OF THE MANUAL RELEASE Remove the small front plastic cover from the opener (figure 1). Put the key into the keyhole and turn right (figure 1). Pull the lever up (figure 2). NOTE: To re-engage the opener, follow the procedure in reverse. figure 2 figure 1 ATTACH THE OPENER AND DETERMINE THE POSITION OF THE GATE BRACKET... -
Page 13: Adjust Travel Distance
INSTALLATION ATTACH THE OPENER AND DETERMINE THE POSITION OF THE GATE BRACKET (OPTIONAL STRAIGHT ARM) Bring the gate to the closed position. Align the holes on the opener to the post bracket holes. Attach the opener to the post bracket using the bolts and nuts in figure 1. -
Page 14: Wiring
WIRING ELECTRICAL SAFETY To reduce the risk of SEVERE INJURY or DEATH: • BEFORE installing the power wiring or control stations be sure to follow all specifications and warnings. Failure to do so may result in SEVERE INJURY to persons and/or damage to the opener. •... -
Page 15: Opener 1 And Opener 2 Connection
WIRING OPENER CONNECTION 1 AND 2 NOTE: The opener wired to the MOTOR 1 terminal, will always open first and close last. The Primary opener is already pre-wired to MOTOR 1 terminals. No extra steps required for MOTOR 1 wiring. figure 1 NOTE: The opener wired to MOTOR 2 terminal, will always open last and close first. -
Page 16: Wiring Diagram
WIRING WIRING DIAGRAM Power rating outputs: • 24Vdc, 500mA for external accessory* • 24Vdc, 500mA for flashing lamp • 24Vdc, 500mA output for E-lock • 24Vdc, 500mA for Magnetic Lock • 24Vdc, 500mA for SPEC Contact Output * External accessory power will remain active on both Mains Power and Battery Backup. Connected accessories may affect the Battery Backup duration. -
Page 17: Install Entrapment Protection Devices
INSTALL ENTRAPMENT PROTECTION DEVICES THE PROTECTOR SYSTEM™ (IR BEAMS) (OPTIONAL) NOTE: Merlin strongly recommends that The Protector System™ (IR Beams) and Safety Bump Edge Sensors be installed on all gate openers. Compatible Protector System™ (IR Beams) are 772ANZ and HPS15 Monitored Safety Beams. -
Page 18: Programming
PROGRAMMING LCD SCREEN MENU Programming buttons function (4 buttons): Button Function • Program / delete remote controls • Specific function during Programming • Enter programming Mode, Select function and Save the setting. NOTE: long press of P button will save the setting and exit out to the menu screen. - Page 19 PROGRAMMING OVERVIEW Legend Function Section Application Opener Motor Type Direction Motor 1 Direction Motor 1 Direction Motor 2 Direction Motor 2 Limit & Force Learn Learning Remote Control Behaviour Adjust the behaviour of remote controls IR1-Behaviour Adjust the behaviour of Protector System Safety IR Beams in input IR 1 IR2-Behaviour Adjust the behaviour of Protector System Safety IR Beams in input IR 2 IR3-Behaviour...
-
Page 20: Initial Setup
PROGRAMMING INITIAL SETUP Release the opener manual release with the key, and move the gate(s) to a mid open position. Re-engage the manual release. Energise the opener. CYCLES: 000, 000 MAIN MENU BEGIN SETUP SELECT APPLICATION The LCD screen will display the Cycle count. Press and hold the “P”... -
Page 21: Basic Settings
BASIC SETTINGS LIMIT AND FORCE LEARNING Factory default Soft Stop Distance figure 1 figure 2 Within the Basic Setting, navigate through the menu screen until you find “MAIN MENU LIMIT & FORCE LEARN”. MAIN MENU LIMIT & FORCE LEARN LIMIT & FORCE LEARN INTERRUPTED Press the “P”... -
Page 22: Remote Control Behaviour
BASIC SETTINGS REMOTE CONTROL BEHAVIOUR Within the Basic Setting, navigate through the menu screen until you find “MAIN MENU figure 1 REMOTE CONTROL BEHAVIOUR”. Press the “P” button to enter this setting. MAIN MENU Press the “+” or “-“ buttons to navigate through the options. REMOTE CONTROL You can select the following options: BEHAVIOUR... -
Page 23: Pedestrian Command
BASIC SETTINGS PEDESTRIAN COMMAND figure 1 Within the Basic Setting, navigate through the menu screen until you find “MAIN MENU PEDESTRIAN". MAIN MENU Press the “P” button to enter this setting (figure 1). PEDESTRIAN Press the “+” or “-“ buttons to navigate through the options. You can select the following options: •... -
Page 24: Timer To Close (Ttc)
BASIC SETTINGS TIMER TO CLOSE (TTC) Within the Basic Setting, navigate through the menu screen until you find “MAIN MENU TIMER-TO-CLOSE”. Press the “P” button to enter this setting (figure 1). Press the “+” or “-“ buttons to navigate through the options. figure 1 You can select the following options: •... -
Page 25: Flashing Light - Pre-Flashing
BASIC SETTINGS RAM BLOW MOTOR 1 FOR E-LOCK Within the Basic Setting, navigate through the menu screen until you find “MAIN MENU RAM-BLOW". figure 1 Press the “P” button to enter this setting (figure 1). Press the “+” or “-“ buttons to navigate through the options. MAIN MENU You can select the following options: •... -
Page 26: Special Contact
BASIC SETTINGS SPECIAL CONTACT Within the Basic Setting, navigate through the menu screen until you find “MAIN MENU SPECIAL CONTACT RELAY". Press the “P” button to enter this setting (figure 1). Press the “+” or “-“ buttons to navigate through the options. You can select the following options: figure 1 •... -
Page 27: Advanced Settings
ADVANCED SETTINGS If the Default speed and force values are changed in the Advanced Settings, the force reversal behaviour of the gate opener may be affected. Additional safety devices must be used for installations where the force measured on the leading edge of the gate in both the open and close direction is over 400N. Installers must ensure that the gates are installed in a compliant manner as per AS/NZS 60335.2.103. -
Page 28: Password
ADVANCED SETTINGS PASSWORD ENTER PASSWORD figure 1 figure 2 Navigate the Menu screen till you get to “MAIN MENU PASSWORD” by pressing the SET PASSWORD “+” and or “-” buttons (figure 1). MAIN MENU ENTER PASSWORD Press the “P” button to enter this setting PASSWORD (figure 1). -
Page 29: Speed Motors 1 & 2 In Open And Close Direction (Password Protected)
ADVANCED SETTINGS SPEED MOTORS 1 AND 2 IN OPEN DIRECTION (PASSWORD PROTECTED) NOTE: To access this setting the password must be entered. figure 1 Within the Advance Setting, navigate through the menu screen MAIN MENU until you find “MAIN MENU SPEED-MOTOR 1 & 2 OPEN SPEED-MOTOR 1 &... -
Page 30: Factory Reset
FACTORY RESET FACTORY RESET Within the Advance Setting, navigate through the menu screen until you find “MAIN MENU FACTORY RESET”. Press the “P” button to enter this setting (figure 1). Press the “+” or “-“ buttons to navigate through the options. figure 1 You can select the following options: •... -
Page 31: Wireless Programming
WIRELESS PROGRAMMING REMOTE CONTROL PROGRAMMING Activate the opener only when the gate is in full view, free of obstruction and properly adjusted. Do not allow children to operate push button(s) or transmitter(s). Do not allow children to play near the gate. NOTE: The transmitter(s) supplied with your opener are preprogrammed by the factory. -
Page 32: Myq Set-Up
How To Connect The Merlin Gate Opener: Scenario 1: If the homeowner currently already has a Merlin gate opener or other device that is connected to the myQ App via a myQ® gateway accessory, the homeowner will need to: • Purchase a Merlin gate opener that is myQ compatible (the latest range of Merlin gate openers are all myQ compatible) •... - Page 33 B. Installation Process • Gate Opener: Install the Merlin Gate Opener to a fully functional gate using the installation instructions included in this manual. • Protector System (Safety IR Beams) 772ANZ or HPS15 Reflector Safety IR Beams: Install the Protector System (Safety IR Beams) 772ANZ supplied with the gate myQ Connectivity Kit or as an individual accessory.
- Page 34 WIRELESS PROGRAMMING MYQ SETUP – MYQ GATEWAY INSTALLATION (OPTIONAL) CONTINUED Step 2 – Register The myQ Gateway & Add Devices Once you have successfully created your myQ® account, you must add the myQ® Gateway to the account. It is easy to do from your Internet enabled smartphone.
-
Page 35: Operation And Maintenance
OPERATION AND MAINTENANCE ERROR CODES To reduce the risk of SEVERE INJURY or DEATH: • Disconnect ALL power BEFORE performing ANY maintenance. • ALL maintenance MUST be performed by a professional installer. • ALWAYS wear protective gloves and eye protection when changing the battery. •... -
Page 36: Error Codes
OPERATION AND MAINTENANCE ERROR CODES Error Problem Action Required How to Clear ERR: • PCB has detected a • Power down the gate operator for 20 seconds. • Power down for 20 MOTOR1 motor failure seconds and power on • Once the gate has been powered up again, to reset. -
Page 37: Accessories
OPERATION AND MAINTENANCE ACCESSORIES E148M 4 Channel Wireless wall button 11. 921GA-CP4 Loop Detector (not shown) E980M 4 Channel transmitter 12. ELOCK-H/ELOCK-V E-Lock (not shown) E970M 4 Channel transmitter 13. MG-485AU Maglock (not shown) 14. CP4 Vehicle Sensing Probe (not shown) E960M 4 Channel transmitter E964M... -
Page 38: Programming Flow Chart
PROGRAMMING FLOW CHART BASIC SETTINGS - PART 1 Main Menu 1st - Select 2nd - Direction 3rd - Direction 4th - Limit & Force 5th - Exit ( & Save) Motor/Application Motor 1 Motor 2 Learn Press & Hold '+' Press &... - Page 39 PROGRAMMING FLOW CHART BASIC SETTINGS - PART 2 Main Menu Pedestrian Delay Motor 2 Remote Control IR 1 / 2 / 3 Input 1 / 2 / 3 Opening - Open Behaviour Behaviour Behaviour Open - Close - Open - Close - IR1/2/3 CLOSE No Delay Open...
- Page 40 PROGRAMMING FLOW CHART BASIC SETTINGS - PART 3 Main Menu Selay Motor 1 Reversal TIme Timer -To-Close E - Lock Flashing Light - Close Open/Close 2 Second TTC Disabled No Delay Disabled Continuous Reversal 1 Second Setting TTC E-Lock, Reversal to Disabled 10 Seconds Delay...
- Page 41 PROGRAMMING FLOW CHART BASIC SETTINGS - PART 4 Main Menu Soft Start Duration Pre-Flashing Special Contact Maintenance Setting Light Relay Counter Normal Disabled Disabled Disabled Soft Start Duration 1.0 SEC Long 15 Seconds 1 Second 1000 Cycles Soft Start Duration 2.5 SEC Short 30 Seconds 2 Seconds...
- Page 42 PROGRAMMING FLOW CHART ADVANCED SETTINGS Advance Settings - Fine tuning force, speed and delay settings. Note percent value is relative to learned value e.g. ‘increase 15%’ is a 15% increase over the learned setting. Main Menu Password Protected Factory Default Speed-Motor Speed-Motor Soft Stop...
-
Page 43: Warranty
WARRANTY DON’T FORGET Warranty Registration To validate your warranty you must complete the registration form online at: gomerlin.com.au/warranty gomerlin.co.nz/warranty Get Connected with Additional purchase of the myQ Connectivity Kit is required to enable myQ functionality. Visit www.gomerlin.com.au or www.gomerlin.co.nz for more details. Trademark of The Chamberlain Group LLC. -
Page 44: Chamberlain Limited Warranty
• tampering, neglect, abuse, wear and tear, accident, electrical storm, excessive use or conditions other than normal use; ® Merlin Professional Swing A200 • problems with, or relating to, the gate hardware, including but not limited to the springs, Articulated Gate Opener gate alignment, hinges, guides;...
