DWYER 1207A

QUICK REFERENCE GUIDE

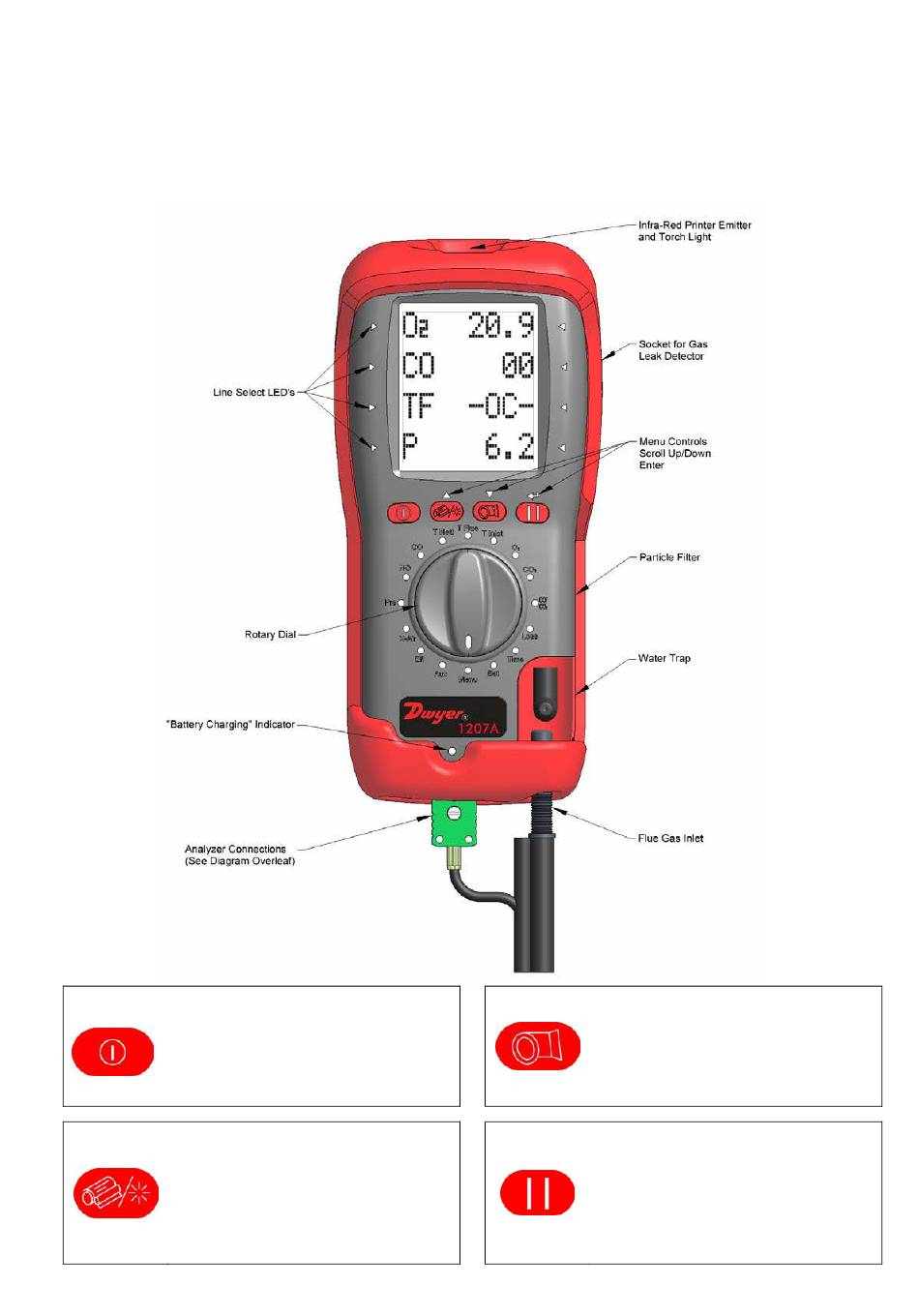

ANALYZER FEATURES AND KEYPAD

ON / OFF

Turns the analyzer ON / OFF

PRINT / BACKLIGHT

Press to print "live" or "frozen"

data. Press again to abort.

Press for 2+ seconds to switch

backlight & torch ON / OFF

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

PUMP / CAL PRESSURE

Turns the pump ON / OFF

Press for 2+ seconds to zero

the pressure sensor

LINE SELECT / FREEZE

Press to select active line on

display as indicated by LED's

Press for 2 seconds to "HOLD"

Press longer to "LOG"

Table of Contents

Do you have a question about the 1207A and is the answer not in the manual?

Page 1 DWYER 1207A QUICK REFERENCE GUIDE ANALYZER FEATURES AND KEYPAD PUMP / CAL PRESSURE ON / OFF Turns the pump ON / OFF Turns the analyzer ON / OFF Press for 2+ seconds to zero the pressure sensor PRINT / BACKLIGHT LINE SELECT / FREEZE Press to print “live”...
Page 2 BEFORE USING ANY ANALYZER CHECK THAT: - Calibration date has not expired - Particle filter is not dirty inside - Water trap and flue probe hose are empty of water - Water trap is fitted correctly to the analyzer including the drain plug - Flue probe hose is connected properly to the flue gas inlet - Flue probe temperature plug is connected into T1 connection Please read the Safety Warnings in the User Manual...
Page 4 DWYER 1207A REPORTS TEST DATE 11/01/09 TIME 16:27:32 FUEL NATU GAS AUTO STORE~ (stores up to 255 tests) From the menu select STORE, AUTO STORE, YES. 02 % CO2% Set the time interval (in seconds) between logs. CO ppm The analyzer starts logging as soon as you exit the menu FLUE °F...
