AcuRite Atlas Instruction Manual

Outdoor device.
Hide thumbs


Advertisement

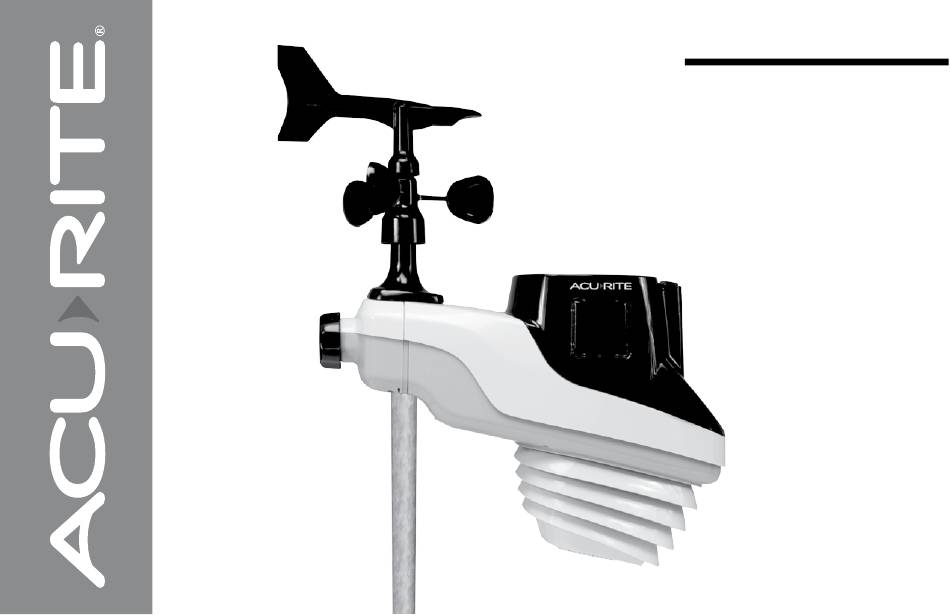

Instruction Manual
AcuRite
®
Atlas™
Outdoor Device
model 06059

Advertisement

   Related Manuals for AcuRite Atlas

   Summary of Contents for AcuRite Atlas

  • Page 1 Instruction Manual AcuRite ® Atlas™ Outdoor Device model 06059...
  • Page 2: How It Works

    (requires optional Lightning Detection Sensor; may be purchased separately). These readings are transmitted over a 433 MHz wireless radio frequency to be received by the AcuRite Atlas indoor HD display and/ or AcuRite Access™. Readings ® received by AcuRite Access can be monitored and viewed online from My AcuRite.
  • Page 3: Device Components

    Device Components Install Batteries Wind speed anemometer Bubble level Open the battery compartment, and insert four (4) AA alkaline or lithium batteries. Lithium batteries are Mounting knob UV and light sensor recommended in low temperature conditions, especially below -4°F (-20°C). Battery compartment Rainfall collector Note: Heavy duty or rechargeable batteries are not...
  • Page 4 Outdoor Device Placement Detection Sensor, you can always add one later. Visit www.Acurite.com for AcuRite Atlas is designed to remain outdoors all year long. Mount the more information. outdoor device in a location that meets all the requirements below: Located within 330 feet (100 m) of receiving device...
  • Page 5 Placement for Maximum Accuracy Important Additional Placement Guidelines Choose an open location with no obstructions above or around the outdoor device for the most accurate measurements. direction sensors an additional 30 feet (9 meters) from Maximize Wireless Range the outdoor device to maximize the accuracy of wind Place outdoor device away from large metallic items, thick measurements.
  • Page 6 Note: Most users will not need to complete this step. Operating Reading Range Frequency Accuracy When mounting the AcuRite Atlas outdoor device, as TEMPERATURE RANGE long as the rear solar panel is facing south, the wind 1°F -40 to 158°F (-40 to 70°C) 30 seconds the factory.
  • Page 7: We're Here To Help

    • Consult the dealer or an experienced radio/TV technician for help. 2. In the event that an issue cannot be resolved over the phone, customer shall send the product(s) in for evaluation to AcuRite NOTE: The manufacturer is not responsible for any radio or TV interference at the contact address (see below) caused by unauthorized modifications to this equipment.
  • Page 8 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights are the property of their respective owners. AcuRite uses patented technology. Visit www.AcuRite.com/patents for details.
