AcuRite 00593W Instruction Manual

New generation radio-controlled wireless weather clock.
Hide thumbs


Advertisement

Thank you for purchasing the new generation radio-controlled wireless weather clock. This unit is
designed and engineered with the state-of-art technology and components. This instrument will
provide accurate and reliable measurement including temperature and humidity tendency as well
as humidity and in/ outdoor temperatures. Please read this manual carefully to fully explore the
features and benefits of the new product.
Name and Functions of Buttons:
Press Functions
CHANNEL
Select Channel 1, 2, 3
PRESSURE
View Pressure History for the past hr 0 to –12 hours
SET/ RCC
Trigger R/C synchronization
"+"
1 step forward
Alarm 1, 2 on/off
"-"
1 step backward
ALARM
Read Alarm 1
Read alarm time 5 sec at normal mode
MEMORY
Read maximum/ minimum temperatures, humidity & air pressure –
"P+"
Step advance for pressure
"P-"
Step backward for pressure
SNOOZE
Trigger snooze alarm

BATTERY INSTALLATION

For the first installation, insert batteries in the main unit first, then the remote sensor.
1. Insert 2 AA alkaline batteries into the main unit.
2. Insert 2 AAA alkaline batteries into the remote sensor.
SETTING UP THE WIRELESS THERMOMETER:
Always insert batteries into the home unit first and then the remote sensor. Your new RF
Thermometer is built with random security code technology. The home unit will learn the
random security code of the remote sensor and will be registered without being interfered
with by a neighbor who may be using the same type of sensor under the same channel
setting. The base unit can monitor up to 3 remote sensors at a time (One sensor is included
with this item.)
Lift off the rear cover of the remote sensor by separating front and back panels at the side
seam.
Place batteries in the sensor and press "TX" button to send a signal to the main unit. Select
temperature display at this time by pressing the "C/ F" button. Replace the back cover on
Instruction Manual
Owner's Manual 00593W
(reads both indoor/outdoor temperatures & humidity)
Hold 3 seconds
Delete current channel
Enter clock & calendar
setting
Fast advance
Fast backward, C/ F
Select Time zone
Alarm time setting
Select hPa/ inHg
Rev. 041706
02202/21060

Advertisement

Table of Contents

   Also See for AcuRite 00593W

   Related Manuals for AcuRite 00593W

   Summary of Contents for AcuRite 00593W

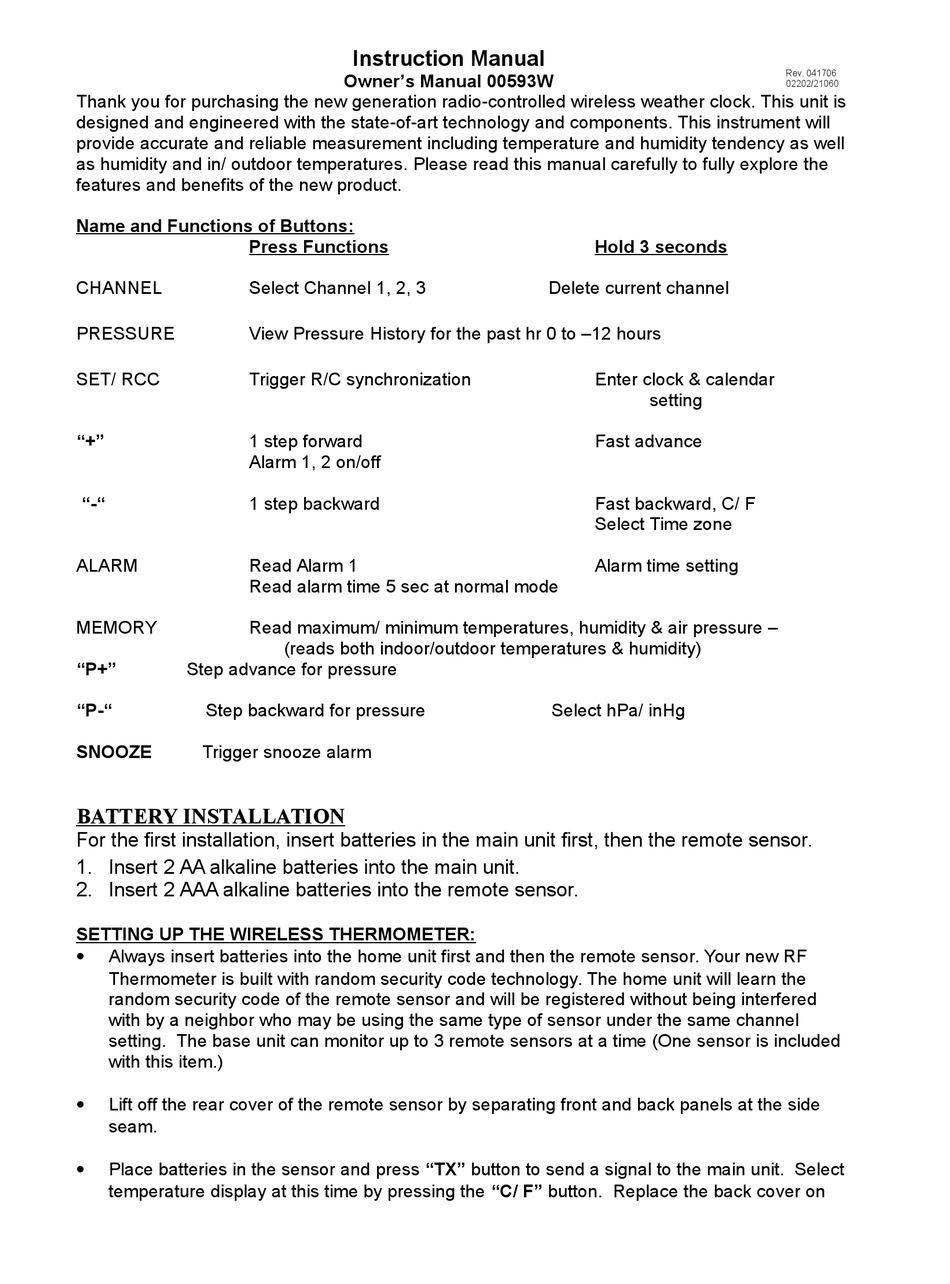

  • Page 1: Battery Installation

    Instruction Manual Rev. 041706 Owner’s Manual 00593W 02202/21060 Thank you for purchasing the new generation radio-controlled wireless weather clock. This unit is designed and engineered with the state-of-art technology and components. This instrument will provide accurate and reliable measurement including temperature and humidity tendency as well as humidity and in/ outdoor temperatures.
  • Page 2 remote sensor.  MODE button on the inside of the remote sensor allows you to see the humidity and the temperature. When you press the button once it will show the humidity when pressed again it will show an arrow and that will scroll from temperature and humidity. When pressed again than it will stay on temperature.
  • Page 3 2. Press “P+“, “P -“ to adjust the air pressure according to the current sea level pressure 3. Press “PRESSURE” to confirm To view air pressure for the past 12 hours, please press the PRESSURE button each time to view the pressure history for each hour.
  • Page 4 LOW BATTERY INDICATION Low battery indication is available for the home unit itself and all of the 3 remote channels. Replace the batteries and follow the setup procedure as mentioned in this instruction manual. BATTERY DISPOSAL Replace only with the same or equivalent type recommended by the manufacturer. Please disposal of old, defective batteries in an environmentally friendly manner in accordance with the relevant legislation.
