RecorderGear B200W User Manual

Wifi hidden camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
B200W
WIFI HIDDEN CAMERA

Advertisement

Table of Contents
loading

Related Manuals for RecorderGear B200W

Summary of Contents for RecorderGear B200W

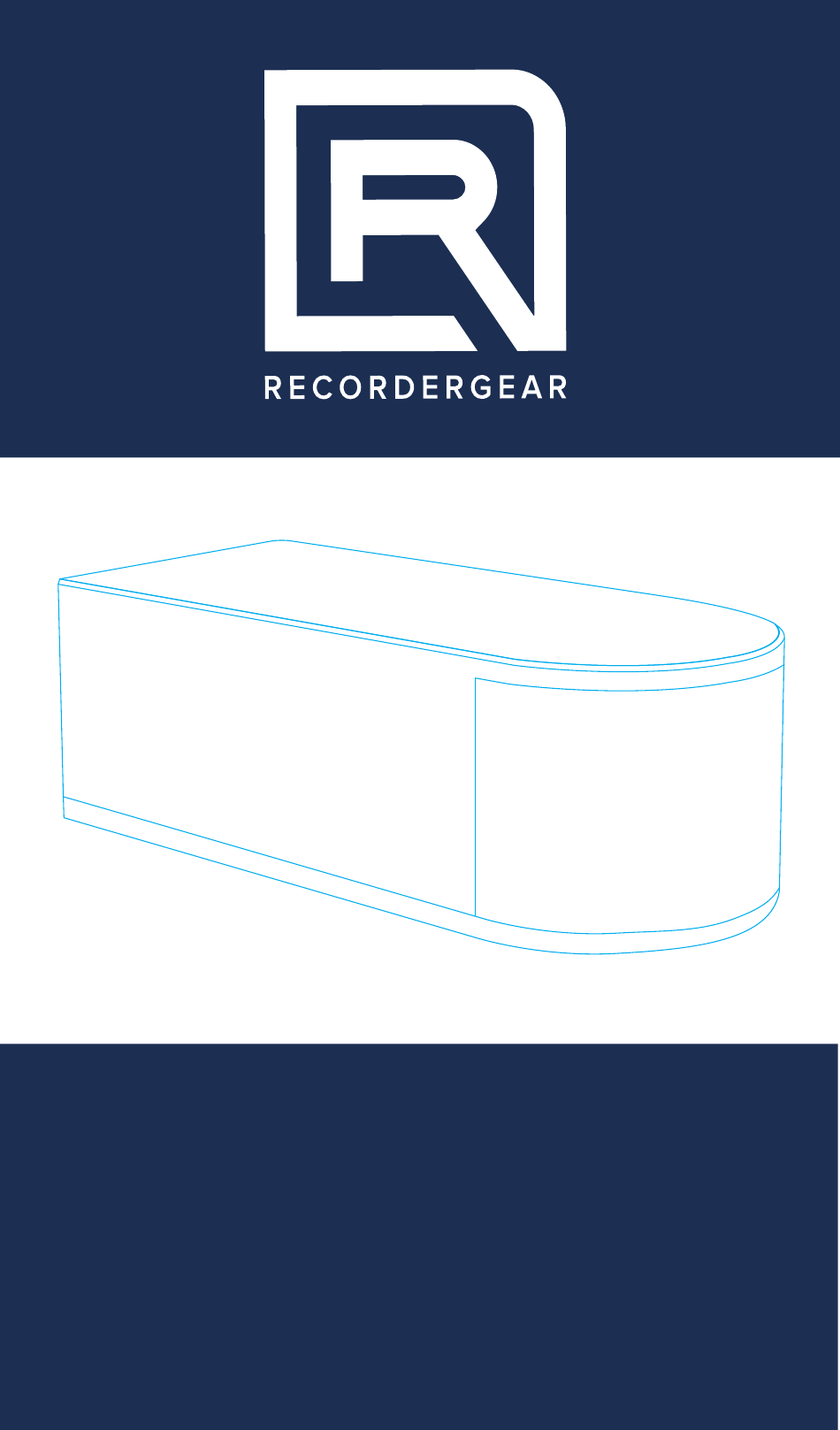

  • Page 1 USER MANUAL B200W WIFI HIDDEN CAMERA...
  • Page 2 RecorderGear products are sold NOT for illegal use and are sold for their intended legal use only. RecorderGear will not be held liable for any illegal use of this product. MID: IP01S...
  • Page 3 MULTIPLE HIDDEN CAMERAS. MULTIPLE LOCATIONS. ONE APP.

  • Page 5: Table Of Contents

    Page # Charging Insert/Eject Micro SD Card Power On/Off Continuous/Motion Detection Modes Access Saved Recordings Download The RecorderGear APP 12 Set-up Wi-Fi IP Camera Function 13 Understanding The RecorderGear Live Stream Screen Settings Device Settings Menu Device Settings Troubleshooting The Specs...

  • Page 6: Charging

    Using the included mini USB cable, plug the B200W into a computer USB port or a USB wall adapter. The charging indicator light on the back of the B200W will light up red to indicate it is charging. NOTE: To operate the B200W using...

  • Page 7: Insert/Eject Micro Sd Card

    Insert/Eject Micro SD Card i t . The B200W supports up to a 128GB micro SD card. The purpose of the SD card is to store the bulk of your surveillance footage. Without an SD card, you can still live stream video, get motion activated alerts, &...

  • Page 8: Power On/Off

    Power Off - Slide the power switch to OFF Continuous/Motion Detection Modes The B200W can record in either continuous or in motion activation. The default mode is continuous; it will automatically start recording in this mode when it is initially powered on.
  • Page 9 Once the blue light begins flashing continuously, recording has begun. NOTE: When the B200W is connected as a Wi-Fi IP camera, the side indicator light will no longer flash, but be a solid blue light. To turn off the indicator see section 9-2D.
  • Page 10 6-8 After completing open the RecorderGear App. Press the Camera Settings icon to the right of the online camera on the Live Video/Main Page & select Device Settings. Select the Recording Settings & select Record. Select Motion Detection Select OK to save the settings.

  • Page 11: Access Saved Recordings

    Recordings There are two methods to access saved recordings 1. Remove The SD Card Remove the back of B200W & turn it OFF. Push the micro SD card in until you feel a spring release; the SD card will eject when you let go.

  • Page 12: Download The Recordergear App

    NOTE: We recommend using VLC media player to playback your files. 2. Use The RecorderGear App (See section 8-3) Download The RecorderGear APP Visit the App Store for iOS devices or Google Play Store for Android devices. Search for the APP by typing RecorderGear into the search bar.

  • Page 13: Set-Up Wi-Fi Ip Camera Function

    Set-up Wi-Fi IP Camera Function The first step in getting the B200W to function as a Wi-Fi IP camera, is to connect your iOS/Android device to the B200W’s Wi-Fi signal. Then use the RecorderGear APP to connect the B200W to your home/business Wi-Fi...
  • Page 14 NOTE: The UID & QR code is unique to your device. Open the Wi-Fi Settings of your iOS/Android device, then select the camera’s UID (matches the QR code sticker) from the Wi-Fi list.
  • Page 15 Open the RecorderGear APP & tap Search (upper right corner); you should see the B200W’s UID, tap it to connect to it & it will be added to your camera list. NOTE: If the B200W’s UID doesn’t show up in the search, you can add the...
  • Page 16 On the Live Video/Main Page select the camera from your list. You will be asked to change your password. Select Change & input a new password. Default password is 8888. Start viewing the video feed by tapping on the new camera on the Live Video/Main Page...
  • Page 17 NOTE: At this point, you can only operate the APP within range of the B200W’s Wi-Fi signal. For full Wi-Fi IP complete the camera functionality, next section 7-2. 2. Connect B200W To Home/ Business Wi-Fi Make sure you have completed section 7-1 before proceeding.
  • Page 18 Home/Business Wi-Fi password as prompted. Tap OK to accept the connection. Confirm you want to connect the B200W to the selected Wi-Fi, by tapping OK. It will then say Device Reset, tap OK. Completely close out of the RecorderGear APP & wait for 40...
  • Page 19 Open the RecorderGear APP, the camera status will say online . You can now change the B200W’s settings & remotely view a live video stream, from anywhere in the world (from your iOS/Android device). NOTE: When the B200W is connected...

  • Page 20: Understanding The Recordergear App

    Understanding The RecorderGear APP This section will help you underst& the functions of the RecorderGear APP.
  • Page 21 1. Live Video Page/Main Page Shows all cameras & statuses. Add Camera - Allows you to (See section 7-1F) add a new camera. Search - This adds a camera to (See section the Live Video/Main page. 7-1F) Camera Settings - Select this icon to modify, delete, reconnect, (See &...
  • Page 22 2. Photos Contains all photos taken on the Live Stream Video Screen (See Section Press & hold photos for more options. These options include: Save to Album - Save snapshots/ photos to your phone’s photos APP. Share - Share snapshots/photos to social media or save to your phones photos APP.
  • Page 23 Delete Snapshot - Delete a specific snapshot/photo. Delete All - Delete all the photos that have been taken through the APP. 3. Recording Media Page This page contains videos taken in the APP & files on the micro SD card. On App Recordings - Tap this icon...
  • Page 24 to view files that have been recorded through the APP. Micro SD Card Recordings - Shows footage contained on the micro SD card. To download files to the APP, first, select your desired camera. Next, press & hold the file you want to download. Tap download.

  • Page 25: Live Stream Screen Settings

    4. Alert Screen-shots Page This page contains motion detection alarms/notifications. Press & hold an Alert Screen-shot to see more options. Live Stream Screen Settings 1. Watching Live Video In The APP On the Live Video/Main Screen tap the camera you would like to view. The camera’s live video feed will appear.
  • Page 26 2. Live Video Stream Settings NOTE: To rotate the camera lens (180°), swipe your finger left/right on the video stream. Brightness - Tap & use the slider to adjust the video brightness. This change effects footage recorded to the APP & microSD card. Contrast - Tap &...
  • Page 27 effects footage recorded to the APP & microSD card Infrared Night Vision - Night vision on/off (if your camera supports it) Indicator Light On/Off - Tap to turn on/off the indicator light, allowing for more discreet monitoring. Photo - Take a video screen-shot. Video (Record) - Tap to start recording &...

  • Page 28: Device Settings Menu

    Back - Tap this icon to go back to the Live Video/Main Page 3. Rotating The Lens & Pinch To Zoom Rotating The Camera Lens - The camera lens can rotate left/right up to 180°. To rotate the lens, swipe left or right on the live video stream.
  • Page 29 Select the Camera Settings icon next to the camera you want to modify (Live Video/Main Page Modify Device - Edit the screen name/label of the camera. Delete Device - Delete the camera from the camera list. Reconnect - Do this if camera is off-line.

  • Page 30: Device Settings

    Device Settings...
  • Page 31 1. Alarm Settings Motion Detection Sensitivity - Change motion detection sensitivity range from 1 to 7 or disable it. Alarm Schedule - Set times for when your camera takes motion activated alert screen-shots. NOTE: If Motion Detection Sensitivity is disabled this function will not work. Email Alert - Enable/Disable Email alerts.
  • Page 32 2. Wi-Fi Settings Allows you to link your camera to your home/business Wi-Fi. (See section 7-2) 3. Recording Settings SD Card Recording - Shows the space left on the micro SD card & lets you know if your camera is recording to the micro SD card.
  • Page 33 Resolution - High = 720P , Medium = 480P, Low = 280P. (This changes the resolution recorded to the micro SD card) Recording Segments (mins) - Footage is divided into separate files to avoid large file size. Here you specify the file interval length.
  • Page 34 for email alerts. Select OK to save changes. 7. FTP Settings Contact your IT local specialist for more information & help (FTP not applicable for most users). 8. Change Password Changes the password for your camera. Enter the current password & then the new password.

  • Page 35: Troubleshooting

    Troubleshooting If your camera is not working as described, try resetting, rebooting, or reconnecting it. 1. Video Streaming Issue For problems with video streaming, try reconnecting your camera. To do this, see section 10C. If this doesn’t work close & open the APP. 2.
  • Page 36 password will set back to 8888. NOTE: After resetting the camera, it sets back to the manufacturer defaults. You will need to reconnect your (see section camera...

  • Page 37: The Specs

    The Specs Battery Life 4.5 Hours Video Resolution on 1080P, 720P, 480P Video Resolution on 720P micro SD card Continuous, Motion Video Recording modes Detection Video File type Loop Recording Time & Date Stamp Lense Angle Memory Support 128GB Battery Size 950 mAh Records While Charging 720P - 118 mins per GB...
  • Page 38 WWW.RECORDERGEAR.COM R e c o r d e r G e a r ™ a n d r e s p e c t i v e l o g o s a r e t r a d e m a r k s o f Te t o n We b s t o r e s L LC © 2 0 1 8...
