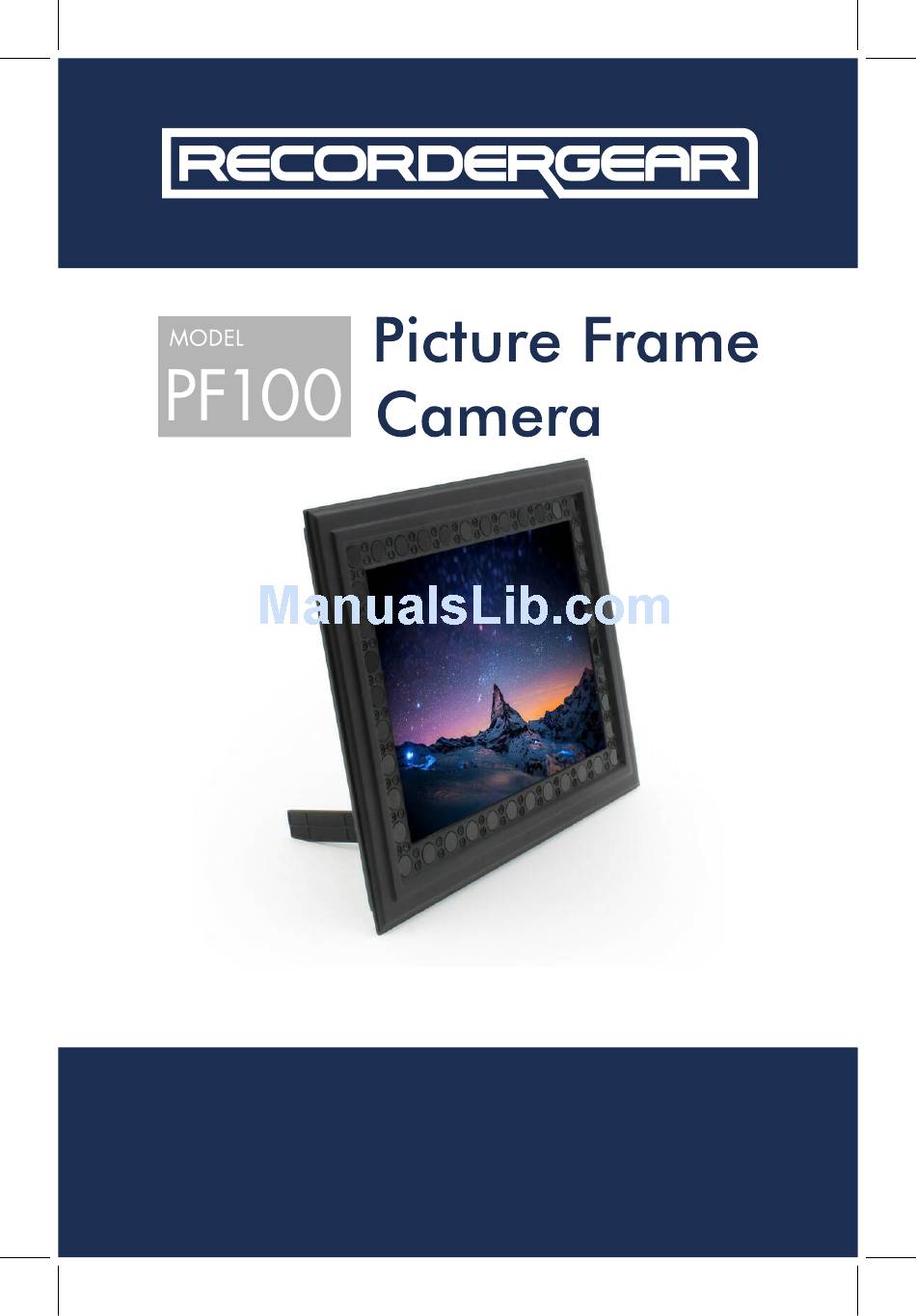

Page 1: User Manual
USER MANUAL www.recordergear.com RecorderGear™ and respective logos are trademarks of Teton Webstores LLC ©2017 ALL RIGHTS RESERVED... - Page 3 USA Surveillance Laws In order to comply with 18 U.S. Code § 2512 federal law, the audio recording function is turned off by default on the PF100. To use this device 100% legally within the USA, you must record video with audio recording turned off. If you are located in a...
-
Page 4: Table Of Contents
Table of Contents 1 Charging 2 Insert Micro SD 3 Power On/Off 4 Continuous Video Recording Mode 5 PIR Motion Detection Video Recording Mode 6 Audio Option 7 Infrared Night Vision 8 Loop Recording 9 Time and Date Stamps Settings 10 Playback Files 11 Reset Specification Sheet... -
Page 5: Charging
Charging The PF100 takes 20hrs to fully charge. For first time use, we recommend fully charging it for the best results. It can be charged using the micro USB cable provided with a wall outlet or the USB port on a PC. -
Page 6: Insert Micro Sd
Insert Micro SD The PF100 supports up to a 32GB micro SD Card. Do not power on the PF100 before inserting the memory card. A. Insert a memory card into the memory card slot; We recommend using a brand new class 10 micro SD Card B. -
Page 7: Power On/Off
B. To Power Off the PF100: Hold down the power button for 3 seconds: a red light will flash with a solid blue light. The lights will then turn off indicating that your PF100 has powered off... -
Page 8: Continuous Video Recording Mode
To activate continuous recording mode: A. Power on the PF100 B. While the PF100 is in standby mode, press the record button C. The indicator light will flash blue 3 times and turn off indicating continuous recording has begun NOTE: Recorded files are saved directly to the SD card in 10 minutes intervals. -
Page 9: Pir Motion Detection Video Recording Mode
To activate PIR recording mode: A. Power on the PF100 B. While the PF100 is in standby mode, press the MD button and a solid red indicator light will come on and stay on C. The other indicator light will flash red 3 times and stay on indicating PIR mode has been activated D. -
Page 10: Audio Option
NOTE: Recording time (standby time) is 2 years (24 months) Sensor detection distance is 16-26 feet Sensor detection angle is 60 degrees Recorded files are saved in 1 minute intervals Audio Option This option allows you to control audio recording in the videos. -
Page 11: Infrared Night Vision
A. Removing SD Card from PF100: 1. Power off the PF100 2. Push the SD card into the PF100 until you hear a spring release. The card will be ejected when you let it go 3. Insert the SD Card in a card reader then... - Page 12 B. Connect your PF100 Directly to the PC: 1. Power off the PF100 2. Connect your PF100 to a PC via the micro USB cable 3. Power on the PF100 4. Open the disk that appears on your PC 5.
-
Page 13: Time And Date Stamps Settings
Time and Date Stamps Settings This option allows you to edit the date and time of your PF100. To edit the date and time, use one of two methods: A. Removing SD Card from PF100: 1. Power off the PF100 2. - Page 14 B. Connect your PF100 Directly to the PC: 1. Power off the PF100 with the micro SD card still installed 2. Connect your PF100 to a PC via the micro USB cable 3. Power on the PF100 4. Open the disk that appears on your PC 5.
-
Page 15: Playback Files
6. Click on the Video Folder B. Removing SD Card from PF100: 1. Power off the PF100 2. Push the SD card into the PF100 until you feel and hear a spring release. The card will eject when you let it go 3. -
Page 16: Reset
Reset If for any reason your PF100 isn’t responding or recording properly, please reset your PF100 by inserting a small pin into the reset hole until you feel a click. -
Page 17: Specification Sheet
Specification Sheet Recording modes Continuous/PIR motion detection Memory support Up to 32GB Night vision Loop Recording Optional Video File Format Resolution/ fps 720P, 30 fps Video Segments 10 mins Continuous, 1 min PIR Time/ Dates stamp Battery full charged 20hrs Battery life Night vision 9-10hrs Continuous recording Mode... - Page 18 MID: BKC-1080PDVR Made In China 1 Year Warranty All RecorderGear™ brand products are backed by our 1 Year Warranty. For full details visit www.recordergear.com.
