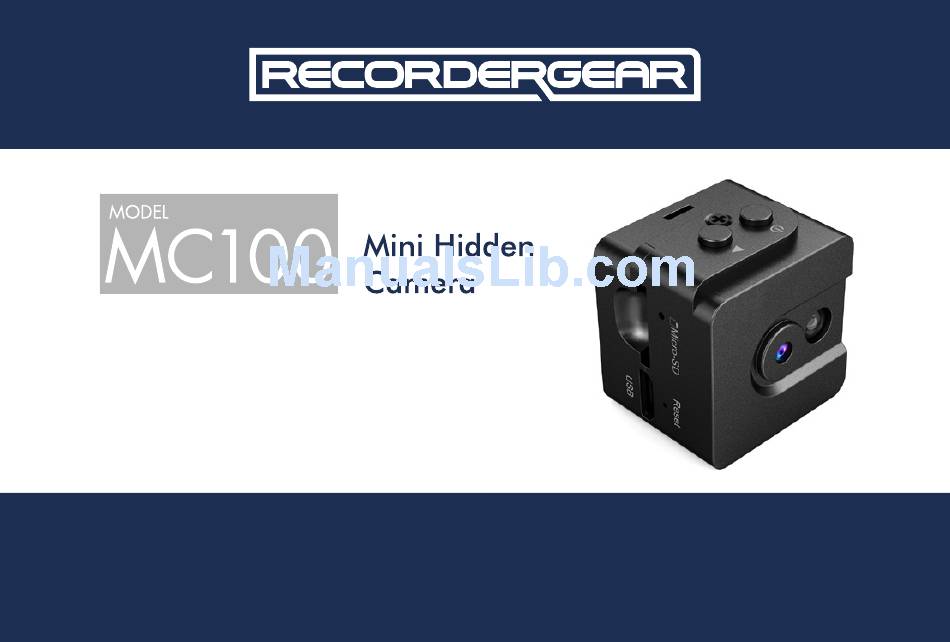

- Page 1 USER MANUAL www.recordergear.com RecorderGear™ and respective logos are trademarks of Teton Webstores LLC ©2017 ALL RIGHTS RESERVED...
- Page 3 In order to comply with 18 U.S. Code § 2512 federal law, the audio recording function has been removed from the MC100. You can rest assured that this device is 100% legal to use in the USA. Please be familiar with your country and state surveillance laws before using this product.
-
Page 4: Table Of Contents
Table of Contents 1 Charging 9 Time and Date Stamps Settings 2 Insert Micro SD 10 Reset 3 Power On/Off 11 Specs 4 Continuous Video Recording Mode 12 Indicators Lights 5 Audio detection Video Recording Mode 6 Infrared Night Vision 7 Playback Files 8 Loop Recording... -
Page 5: Charging
Charging It takes 1 hour for the MC100 to fully charge. Before first time use, we recommend allowing the MC100 to fully charge. The MC100 can be charged using the micro USB cable provided to connect it to a wall outlet or PC... -
Page 6: Insert Micro Sd
Insert Micro SD The MC100 supports up to a 32GB micro SD card. Do not power on the MC100 before inserting the micro SD card. A. Insert a micro SD card into the memory card slot. We recommend using a brand new class 10 micro SD card. -
Page 7: Power On/Off
B. Press the power button. C. The MC100 will enter standby mode indicated by a solid blue light. D. If no action is taken after 1 minute of the MC100 entering standby mode, it will automatically power off to conserve power. -
Page 8: Continuous Video Recording Mode
To Activate Continuous Recording Mode: A. Power on the MC100. B. While the MC100 is in standby mode, press and hold the REC (record) button. C. The indicator light will flash blue 3 times and turn off, indicating continuous recording has begun. -
Page 9: Audio Detection Video Recording Mode
To Activate Audio Detection Recording Mode: A. Power on the MC100. B. While the MC100 is in standby mode, press the power button and a solid red indicator light will turn on and stay on. C. The indicator light will flash red 3 times and shut off indicating audio. -
Page 10: Infrared Night Vision
Infrared Night Vision The MC100 automatically activates infrared night vision when recording in low light. Playback Files The recorded files can be played back in two ways: 1. Removing micro SD Card from MC100: A. Power off the MC100. B. Remove the micro SD card. - Page 11 2. Connect your MC100 Directly to the PC: A. Power off the MC100. B. Connect your MC100 to a PC via the micro USB cable. C. Power on the MC100. D. The connection will be indicated by a solid blue light and a flashing red light.
-
Page 12: Loop Recording
SD card so you aren’t limited by the memory card reaching full capacity. To activate/deactivate loop recording, use one of two methods: 1. Removing micro SD Card from MC100: A. Power off the MC100. B. Remove the micro SD card. - Page 13 J. Power on the MC100 and the changes will take effect. 2. Connect MC100 Directly to the PC: A. Power off the MC100 with the micro SD card still installed. B. Connect your MC100 to a PC via the micro USB cable.
-
Page 14: Time And Date Stamps Settings
Time and Date Stamps Settings This option allows for editing the date and time of the MC100. To edit the date and time, use one of two methods: 1. Removing micro SD Card from MC100: A. Power off the MC100. - Page 15 J. Power on the MC100 and the changes will take effect. 2. Connect MC100 Directly to the PC: A. Power off the MC100 with the micro SD card still installed. B. Connect your MC100 to a PC via the micro USB cable.
-
Page 16: Reset
Reset If for any reason your MC100 isn’t responding or recording properly, please reset your MC100 by inserting a small pin into the reset hole until you feel a click. Specs Recording modes Continuous/ Audio Detection Memory support Up to 32GB... - Page 17 Video File Format Resolution/ fps 720P, 30 fps Video Segments 5 mins Continuous, 1 min Audio Detection Time/ Dates stamp Battery full charged 1 hour Battery life Night vision Continuous 35 min recording Mode Camera Angle 75 degrees Records while charging Weight Dimensions 26.1mmx 24.9mmx20.6mm...
-
Page 18: Indicators Lights
Indicators Lights Solid blue Standby mode Red light flashes 3 times Audio Detection Video recording Blue light flashes 3 times Continuos Recording mode Solid Yellow light Charging Blue and flashing red light Connect to PC... - Page 20 MID: Mini-01 1 Year Warranty All RecorderGear™ brand products are backed by our 1 Year Warranty. For full details visit www.recordergear.com...
