Installation and Operating Instructions

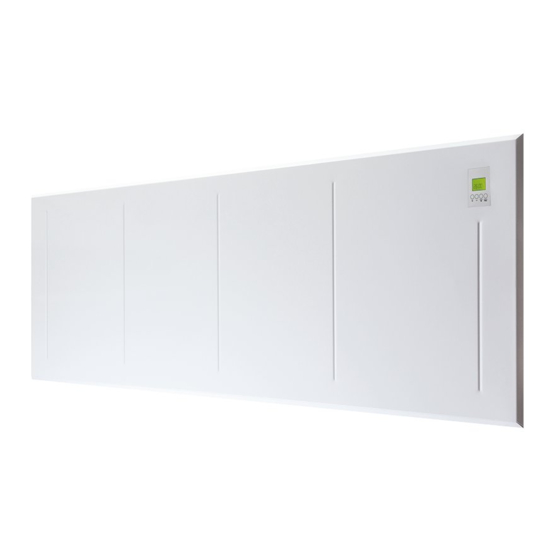

VPS / VPS H / VPS DSM / VPS plus / VPS RF Wall
Types:
• VPS 1000
• VPS RF 1000
• VPS 1200
• VPS RF 1200
• VPS 1500
• VPS RF 1500
• VPS 2000
• VPS RF 2000
• VPS H 1000
• VPS plus 1000
• VPS H 1200
• VPS plus 1200
• VPS plus 1500
• VPS DSM 1000
• VPS plus 2000
• VPS DSM 1200
• VPS DSM 1500
• VPS DSM 2000
Feel good through warmth from electricity - www.technotherm.de
Please read attentively and keep in a safe place!
Subject to alterations!
Id_no. 911 360 870
Issue 08/18
