Installation and technical manual

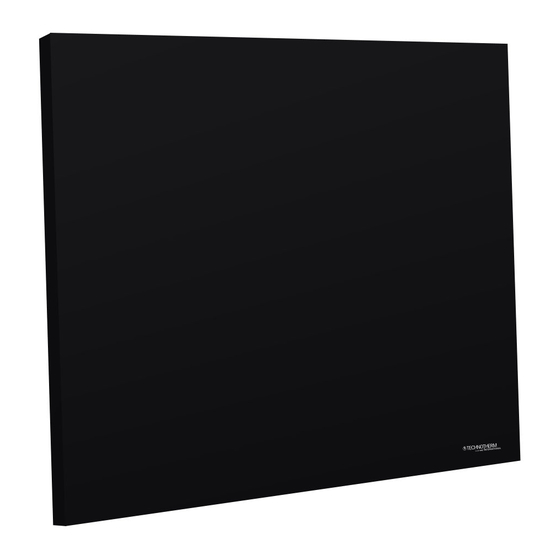

ISP-W / R / B / Motive frameless – with receiver RF
ISP-W 350 - 1200
ISP-R 350 - 1200
ISP-B 350 - 1200
ISP-Motive 350 – 1200
ISP-W 351 - 851
ISP-R 351 - 851
ISP-B 351 - 851
ISP-Motive 351 till 851
with receiver RF
Edition: 08/18
No. 911 360 671
13
GB
14
Advertisement
Related Manuals for Technotherm ISP 350
Summary of Contents for Technotherm ISP 350
- Page 1 Installation and technical manual ISP-W / R / B / Motive frameless – with receiver RF ISP-W 350 - 1200 ISP-R 350 - 1200 ISP-B 350 - 1200 ISP-Motive 350 – 1200 ISP-W 351 - 851 ISP-R 351 - 851 ISP-B 351 - 851 ISP-Motive 351 till 851 with receiver RF...
- Page 2 Manual ISP W / R / B / Motive- frameless 1. Important Safety instructions • People (including children) who are limited in their physical, sensory, or mental capacities should not use this device at any time. Furthermore do not handle this instrument if you do not possess the necessary experience and knowledge to do so.
- Page 3 Manual ISP W / R / B / Motive- frameless • Do not put any foreign objects into the vent. This may cause electrocution, fire or damage to the heater. • Do not use an extension cord unless approved by an electrician. •...
- Page 4 Fig: 1 drill spacing holes All models with the width of 600 mm A1 [mm] B1 [mm] A2 [mm] B2 [mm] incl. RF ISP 350 ISP 450 ISP 600 ISP 750 ISP 950 1224 1224 ISP 1200 1524 A1/2 = 762...
- Page 5 It is recommended that the control of the ISP heating panels by an external room thermostat from TECHNOTHERM (eg. radio receiver TPF or with the digital radio transmitter TBF. In addition, the ISP heating panels are equipped with a limiting thermostat to ensure their safe usage.
- Page 6 Manual ISP W / R / B / Motive- frameless Technical datas of the 600 mm models Power Power Model W x H x D [mm] Weight Model W x H x D [mm] Weight [Watt] [Watt] ISP-W 350 600x600x15 ISP-W 350 RF 600x600x15 ISP-W 450...
- Page 7 Manual ISP W / R / B / Motive- frameless Connecting the recipient (only with the "RF" models) Press on the receiver for more than 3 seconds the button until the indicator light begins to flash. Then attach the transmitter in configuration mode (see manual transmitter).
- Page 8 Manual ISP W / R / B / Motive- frameless Switching from X3D to X2D and vice versa: X2D for TPF/TBF X3D for TPF-Eco 1) Before the changeover, the assignment to the thermostat must be cleared. Press and hold for 30 seconds (1): after 3 seconds, the LED flashes slowly.
- Page 9 RF Receiver together with the TPF-Eco Thermostat (Art.Nr.: 750 000 641) and the Eco- • Interface (Art.Nr.750 000 640) from Technotherm meet the following requirements and therefore the ErP Directive: electronic room temperature control plus week timer (RF) • •...
- Page 10 Manual ISP W / R / B / Motive- frameless Model: ISP RF (These devices may only be used with a corresponding approved thermostat - e.g. TPF-Eco and the ECO interface) Item Value Item Value Symbol Value Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat 1200...
- Page 11 Manual ISP W / R / B / Motive- frameless Model: ISP (These devices may only be used with a corresponding approved thermostat - e.g. TPF-Eco, the RF receiver and the ECO interface) Item Symbol Value Value Item Value Type of heat input, for electric storage local space heaters only (select Heat output one) Nominal heat...
- Page 12 Manual ISP W / R / B / Motive- frameless TECHNOTHERM support: Fon: +49 (0) 911-93 78 32 10 Lucht LHZ Elektroheizung GmbH & Co. KG Reinhard-Schmidt-Str. 1 09217 Burgstädt Fon: 03724 66869 0 Fax: 03724 66869 20 E-mail: info@technotherm.de web: www.technotherm.de...
