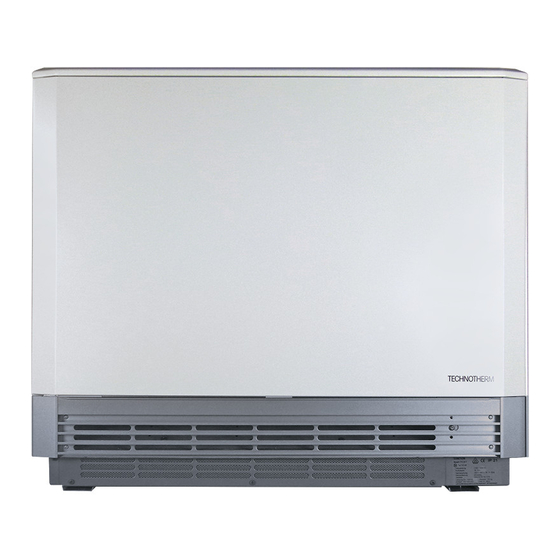

Installation and technical manual
Storage Heater with electronic control
TTS 200
TTS 240
TTS 170 F
TTS 300
TTS 260 F
TTS 360
TTS 340 F
TTS 400
TTS 430 F
TTS 510
TTS 510 F
TTS 610
TTS 710
Including all_Eco-devices
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE.
BE SURE TO OBSERVE ALL LABELS AND WARNINGS ON THE APPLIANCE
Edition:12/16
Id_Nr. 900 319 701
TTN 300
TTN 130 F
TTN 400
TTN 200 F
TTN 500
TTN 270 F
TTN 330 F
TTN 400 F
1
TTW 110
TTH 550
TTW 160
TTW 210
TTW 260
TTW 310
.
GB
D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Technotherm TTS 200
Summary of Contents for Technotherm TTS 200
- Page 1 Installation and technical manual Storage Heater with electronic control TTS 200 TTS 240 TTS 170 F TTN 300 TTN 130 F TTW 110 TTH 550 TTS 300 TTS 260 F TTN 400 TTN 200 F TTW 160 TTS 360 TTS 340 F...
- Page 2 Manual Storage Heater TTS with electronic control Contents Introduction page 3 Safety page 4 Design and Construction page 5 Operation page 6 to 7 Installation page 8 to 13 Room Thermostats page 13 Technical Data page 14 Circuit Diagram page 19 Attention : The storage heater must only be installed by a competent electrician.
- Page 3 Manual Storage Heater TTS with electronic control Introduction We congratulate you on your purchase of your Technotherm storage heater. Although the Installation and Operation of the heater is very simple, we advise that you read this booklet carefully as it gives you important information on safety, the installation and operation, as well as the care of the appliance.
- Page 4 Manual Storage Heater TTS with electronic control Caution Storage Heaters may become very hot! Electric storage heaters are space heating appliances and will attain surface temperatures in excess of 90°C (195°F) and greater directly in front of or above the discharge grille. Do not create fire hazards by placing flammable objects, materials or substances on, against or near the heater.
- Page 5 Manual Storage Heater TTS with electronic control Design and Construction TTS heaters are an assembly of 6 primary elements: Case - The attractively designed steel case is finished with a high degree of craftsmanship. All surfaces painted with a neutral off-white baked enamel. This case is very strong and provides the base upon which all other components are supported.
-
Page 6: Operating Instructions
Manual Storage Heater TTS with electronic control Operating Instructions The operation of TTS heaters is convenient and economical. The heaters charge over night. Radiation from the casing provides a low level of background heat. The fan can be switched on as desired increasing heat output. Heater Charging Adjustments TTS heater charging can be controlled either automatically or manually. - Page 7 Manual Storage Heater TTS with electronic control Output Control A proportion of the stored heat will be radiated from the casing providing a low level of background heat. Output can be increased by switching on the fan(s) whereby heat is discharged from the low level outlet grille.
- Page 8 Manual Storage Heater TTS with electronic control Installation Positioning Please read the instructions in the introductory section concerning position, safety and load- bearing capacity. If in doubt, consult a building engineer. Transport To facilitate transport, the heater and the bricks are packaged separately. The 7 bricks per core column are packed in two’s and three’s.
- Page 9 Manual Storage Heater TTS with electronic control The heater must be prevented from tipping over by fixing the two brackets to the wall using the screws and plugs, all of which are contained in the plastic bag in the right-hand side of the heater cabinet. If these screws and plugs are unfit for the wall fabric in question, other suitable materials must be used.
- Page 10 Manual Storage Heater TTS with electronic control ..pull the grille slightly outwards and push it to the left to remove it. Remove the front panel screws. Pull the bottom of the front panel out to about 45° and then pull it downwards to remove it from the top panel.
- Page 11 Manual Storage Heater TTS with electronic control Remove the four screws from the inner front panel and carefully remove the panel itself. Be very careful not to damage the fragile insulation attached to the rear of the panel. Having removed the card holding the heating elements in position, the core bricks are then put into the heater, starting with the bottom row.
- Page 12 Manual Storage Heater TTS with electronic control This is repeated until all the bricks have been installed. After removing any waste, dust or other particles from the interior of the heater, the panels can be refitted in the reverse order, i.e. 1.
-
Page 13: Room Thermostat
Manual Storage Heater TTS with electronic control System Start-up Note: The heaters are fed from three circuits: (1) the element feed, (2) the charge control and (3) the discharge control circuit. All breakers must be off for the heater to be safely de-energized to permit safe servicing. Steps to activate the system Control Panel - Energize control panel at the circuit breaker. -
Page 14: Technical Data
Manual Storage Heater TTS with electronic control Technical Data Modell TTS 200 TTS 240 TTS 300 TTS 360 TTS 400 TTS 510 TTS 610 TTS 710 (incl. ECO-devices) Type THS 092 THS 093 THS 094 THS 094 THS 095 THS 096 Article No. - Page 15 Manual Storage Heater TTS with electronic control Technical datas standard flat models Modell TTS 170 F TTS 260 F TTS 340 F TTS 430 F TTS 510 F (incl. ECO-devices) THS 038 THS 039 THS 040 THS 041 THS 042 Type Article No.
- Page 16 Manual Storage Heater TTS with electronic control Technical datas model low Modell TTN 300 TTN 400 TTN 500 (incl. ECO-devices) THS 028 THS 029 THS 030 Type 852 330 005 852 340 005 852 350 005 Article No. Nominal rating * 3000 W 4000 W 5000 W...
- Page 17 Manual Storage Heater TTS with electronic control Technical datas model low & flat TTN 130 F TTN 200 F TTN 270 F TTN 330 F TTN 400 F Modell (incl. ECO-devices) Type THS 032 THS 033 THS 034 THS 035 THS 036 852 113 005 852 121 005...
- Page 18 Manual Storage Heater TTS with electronic control Technical datas TTW TTW 160 TTW 210 TTW 260 TTW 310 Modell (incl. ECO-devices) Type THS 053 THS 054 THS 055 THS 056 852 303 005 852 304 005 852 305 005 852 306 005 Article No.
- Page 19 Manual Storage Heater TTS with electronic control Connection possibilities TTS 200 till 240 TTS 300 till 710 TTS 170 F till 260 F TTS 340 F till 510 F TTH 550 TTN 300 till 500 TTN 200 F till 400 F Performance label Our equipment is supplied with power stickers.
- Page 20 Manual Storage Heater TTS with electronic control Functional description of the electronic charging device - EL Instructions: The electronic charging regulator EL is designed for manual and weather - and residual heat - dependent charging of the heat accumulators. The controller can recognize and process the following control signals: AC: 37/40 % ED, 68/72 % ED, 80 % ED PS, 80 % ED NS DC: 0,91 - 1,43 V PS = Positive disturbance behaviour.
- Page 21 Manual Storage Heater TTS with electronic control Plug assignment ❍ Supply voltage of the charge regulator (230 V AC) - Stecker L und N ❍ Control of thermocouple (230V AC) Plug TRL and TRN ❍ Control voltage 230 V AC (Z1 - Z2 for weather-dependent charging) Plug A1 and A Installation of the charger When installing the charger, care must be taken that the clearance and creepage distances of 8...
- Page 22 A1/Z1 and A2/Z2. Check that all connections are tight. Loose connections can lead to defects such as melted tabs. TECHNOTHERM Service Fon: +49 (0) 3724 66869 0 Lucht LHZ Elektroheizung GmbH & Co. KG Reinhard-Schmidt-Str.
