Summary of Contents for Technotherm Frost Guard FW 501

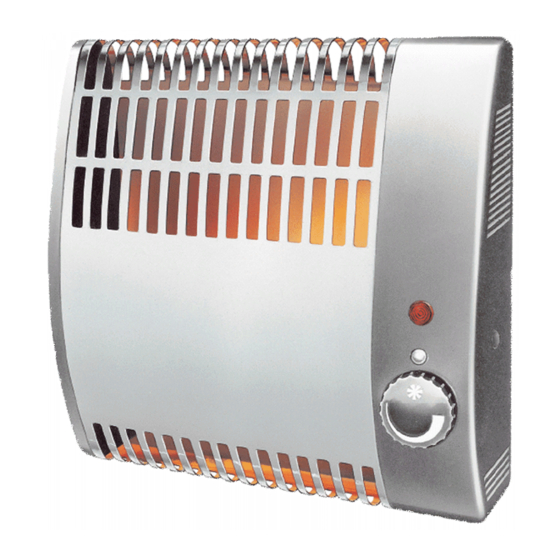

- Page 1 Installation and Operating Instructions Frost Guard FW 501 Types • Frost Guard FW 501 Please read attentively and keep in a safe place! Subject to alterations! Id_no. 911 361 491 Issue 04/18 Feel good through warmth from electricity - www.technotherm.de...
- Page 2 Installation and Operating Instructions Frost Guard FW 501 1. Safety- and Warning Regulations The appliance must only be used as described in the instructions for use. Read these instructions carefully, in conjunction with the illustrations before using the appliance. Use for any other purpose is inadmissible! Any damage attributed to in-...
- Page 3 Installation and Operating Instructions Frost Guard FW 501 must be so installed that any persons using the shower or bath do not come into contact with it. • The device may not be fixed on walls of plastic, synthetic material or other easily flammable materials as for example wood, panels, paper or similar.
- Page 4 Installation and Operating Instructions Frost Guard FW 501 2. Indication for Montage The frost protector is an electrical convector heater. It is fitted with a thermostat for the cor- rect temperature and a safeguard against overheating. A control lamp lights up when the frost protector starts to heat up.
-
Page 5: Cleaning Instructions
Installation and Operating Instructions Frost Guard FW 501 3. Operating instructions The rotary knob and the marking on the casing show the setting of the thermostat. Power indicator marking Knob / adjustment frost protection e.g. 5°C To set the required room temperature: turn the knob to the right as far as it will go and wait un- til the required temperature has been reached. -
Page 6: Troubleshooting
Installation and Operating Instructions Frost Guard FW 501 5. Technical data Type: Frost guard FW 501 Voltage 230 V ~ Power 500 W Safety system IP 21 dripping water Safety class Power cable H03V2V2-F3G0,75 mm² Dimensions H x W x D (in cm.) - Page 7 Installation and Operating Instructions Frost Guard FW 501 6. Guarantee • If problems occur with the device never try to open or repair by yourself. Every intervention in the unit for the change of original condition leads inevitably to the loss of the guarantee claim.
- Page 8 Ph. +49 911 93 78 32 10 Technical alternations, errors, omissions and errata reserved. Dimensionsare stated without warranty! Updated: April 18 TECHNOTHERM is a trademark of Lucht LHZ GmbH & Co. KG Reinhard Schmidt-Str. 1 | 09217 Burgstädt, Germany Phone: +49 3724 66869 0 Telefax: +49 3724 66869 20 info@technotherm.de | www.technotherm.de...
