Philips LDTS07 User Manual

Touchscreen station. architectural lighting control system..
Hide thumbs

Advertisement

Advertisement

Table of Contents

   Related Manuals for Philips LDTS07

   Summary of Contents for Philips LDTS07

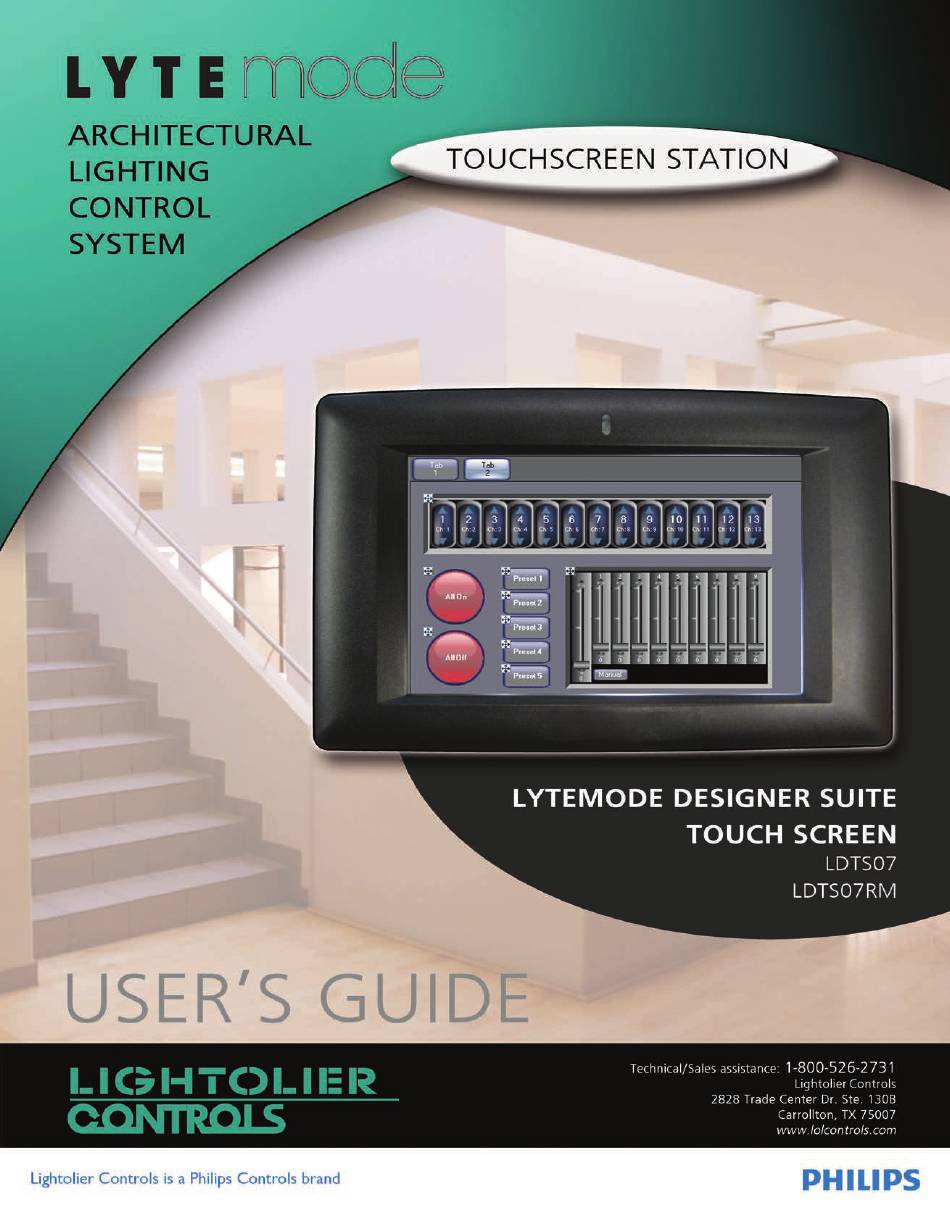

  • Page 2 Fax: 214-647-8032 www.lolcontrols.com Lightolier Controls is a Philips Controls brand. This manual is for informational use only and is subject to change without notice. Lightolier Controls assumes no responsibility or liability for any claims resulting from errors or inaccuracies that may appear in this manual.
  • Page 3: Table Of Contents

    Table of Contents About the Lytemode Designer Suite System ....................2 Designer Suite Touch Screen Overview ......................3 Installation ...............................4 LDTS07 (Wall-Mount) ..........................4 LDTS07RM (Rack Mount) ........................5 Setup and Operation ............................6 Customer Service Technical and Sales assistance for Lytemode products are available worldwide.
  • Page 4: About The Lytemode Designer Suite System

    ’ BOUT THE YTEMODE ESIGNER UITE YSTEM ESIGNER UITE OUCH CREEN UIDE About the Lytemode Designer Suite System The Lytemode Designer Suite System is designed to control architectural lighting by distributing both power and intelligence. The system provides processing power and control at each respective Pushbutton, Slider or Touch Screen Station, eliminating the need for a central processor.
  • Page 5: Designer Suite Touch Screen Overview

    The following Touch Screen models are covered in this manual: • LDTS07 - 7" Full Color VGA Touch Screen, Wall-Mount • LDTS07RM - 7" Full Color VGA Touch Screen, Rack-Mount All models feature a Real Time Clock, which allows a large number of lighting events to coincide with...
  • Page 6: Installation

    LDTS07 (Wall-Mount) To install wall-mount unit: Step 1. Unpack LDTS07 Touch Screen and inspect for any signs of shipping damage. Step 2. Route ILS network cable through appropriate knock-out hole and install rough-in box (sold separately) into wall (Figure 1).
  • Page 7: Ldts07rm (rack Mount)

    ’ ESIGNER UITE OUCH CREEN UIDE NSTALLATION LDTS07RM (Rack Mount) To install rack-mount unit: Step 1. Unpack LDTS07RM Touch Screen and inspect for any signs of shipping damage. Step 2. Connect ILS network cable to Touch Screen ILS connector (Figure 2). Step 3.
  • Page 8: Setup And Operation

    ’ ETUP AND PERATION ESIGNER UITE OUCH CREEN UIDE Setup and Operation The Lytemode Designer Suite Touch Screen is programmed using Lytemode Designer Suite Software. The software runs on a PC connected by an ILSCL232 Interface to the Designer Suite system.
  • Page 9 Controls supplier which agrees in advance to handle the return and replacement by factory authorization). If the product or part is found by Philips Controls to have been defective in material or workmanship it will be repaired or replaced (as deemed necessary by Philips Controls), and the replacement will be returned to you free of charge.
