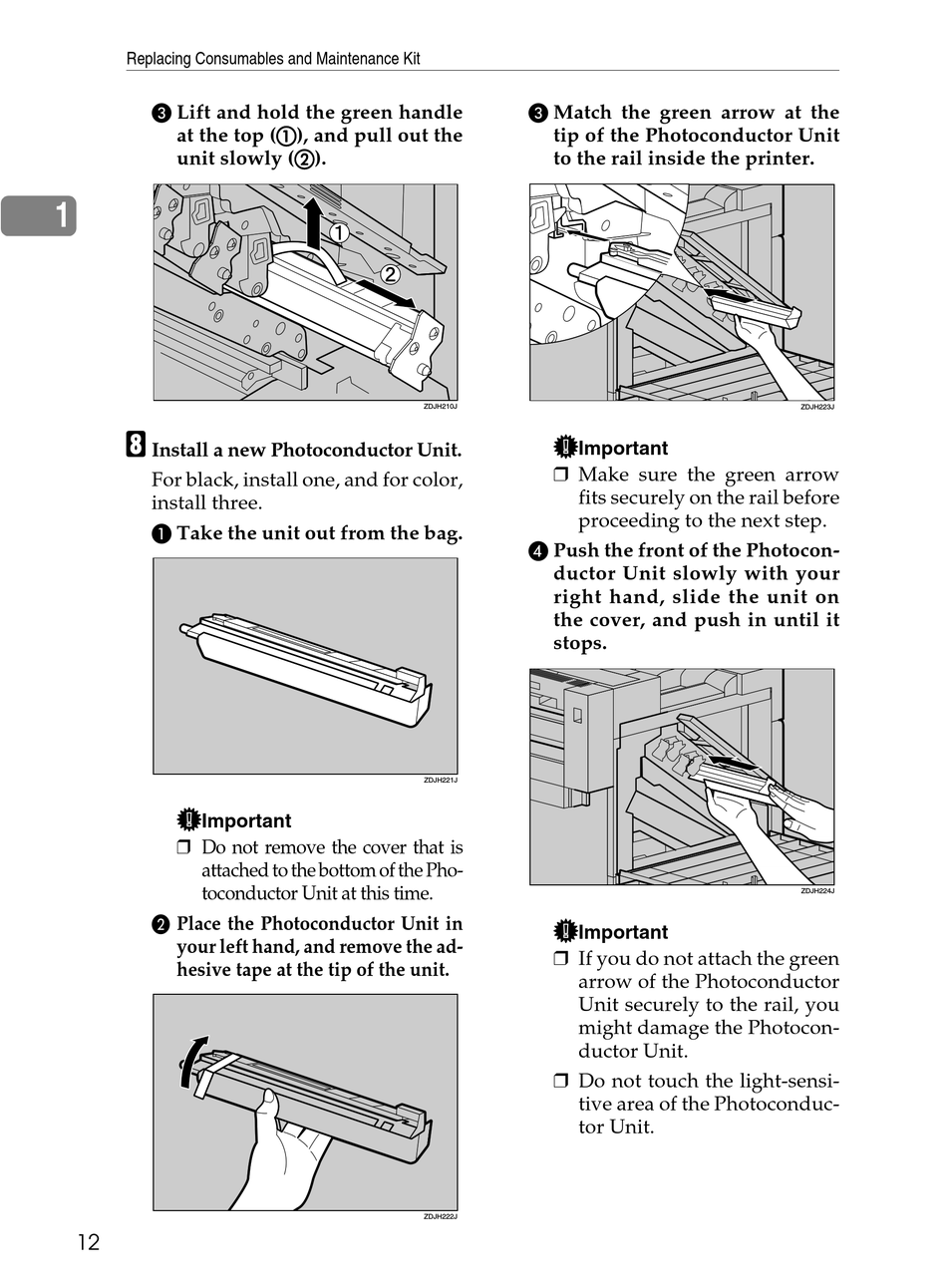

Replacing Consumables and Maintenance Kit
C Lift and hold the green handle
at the top (A A A A ), and pull out the
unit slowly (B B B B ).
1
H
Install a new Photoconductor Unit.
For black, install one, and for color,
install three.
A Take the unit out from the bag.
Important
❒ Do not remove the cover that is
attached to the bottom of the Pho-
toconductor Unit at this time.
B Place the Photoconductor Unit in
your left hand, and remove the ad-
hesive tape at the tip of the unit.
12
C Match the green arrow at the
tip of the Photoconductor Unit
to the rail inside the printer.
ZDJH210J
Important
❒ Make sure the green arrow
fits securely on the rail before
proceeding to the next step.
D Push the front of the Photocon-
ductor Unit slowly with your
right hand, slide the unit on
the cover, and push in until it
stops.
ZDJH221J
Important
❒ If you do not attach the green
arrow of the Photoconductor
Unit securely to the rail, you
might damage the Photocon-
ductor Unit.
❒ Do not touch the light-sensi-
tive area of the Photoconduc-
tor Unit.
ZDJH222J
ZDJH223J
ZDJH224J
