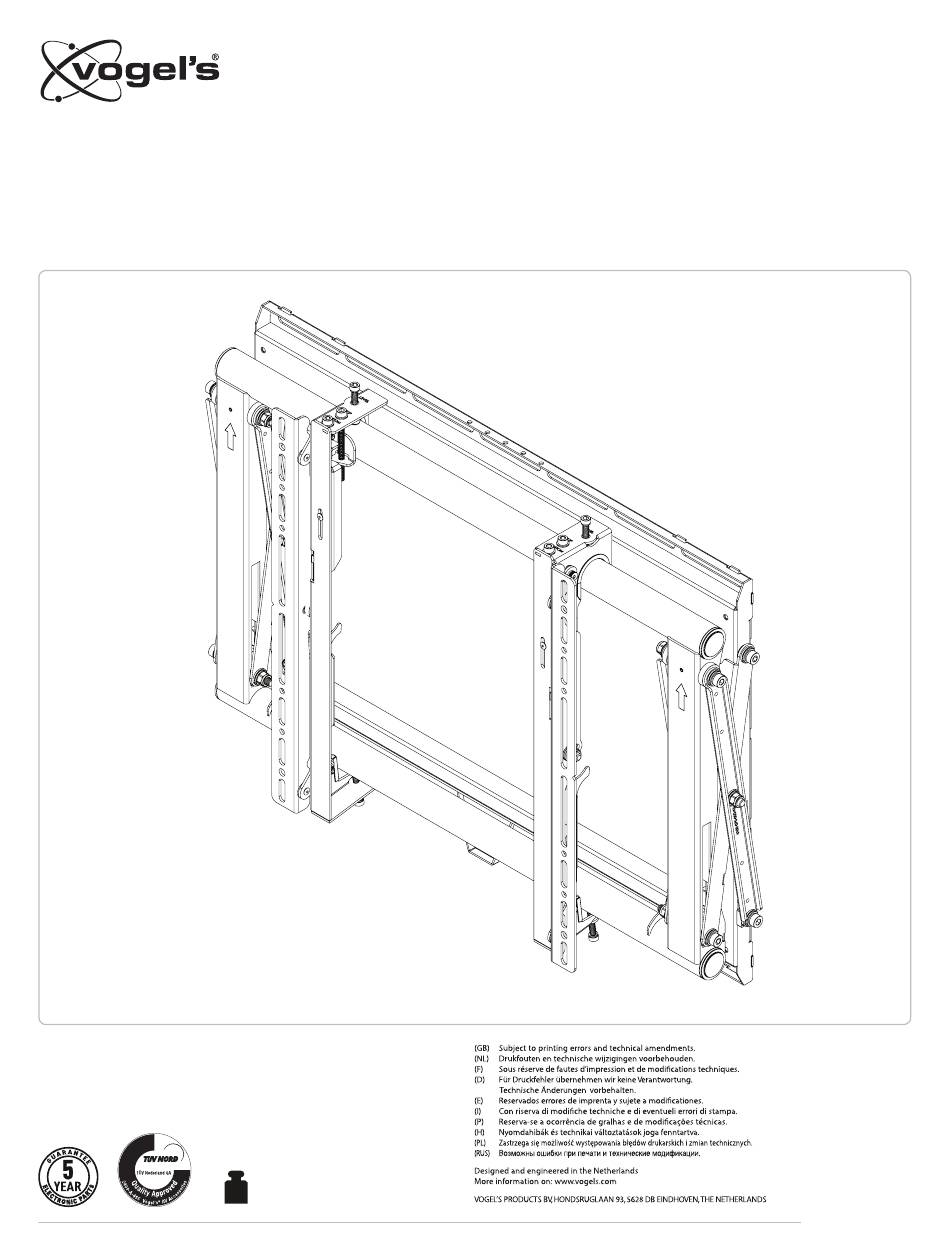

- Page 1 PFW 6870 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Max: 72kg/160lbs MOUIN_PFW6870_V01...
-
Page 2: Included Components
(Qty 4) Required for installation Electronic Stud Finder Pencil Protective Eyewear 6mm Drill Bit 3/8” (10mm) Masonry Drill Bit Level 13mm or 1/2” Socket Phillips Head Screwdriver Socket Wrench Portable Drill www.vogels.com | Europe +31 (0)40 26 47 400 Page 2... -
Page 3: Wood Stud Installation
3. Use a socket wrench and a 1/2” socket to tighten the lag bolt. 4. Do not over tighten the lag bolt. www.vogels.com | Europe +31 (0)40 26 47 400 Page 3... - Page 4 1. Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16” washer into each pilot hole. 2. Tighten all lag bolts using a socket wrench and 1/2” socket. 3. Do not over tighten the lag bolts www.vogels.com | Europe +31 (0)40 26 47 400 Page 4...
-
Page 5: Concrete Wall Installation
1. Insert one (1) 5/16” x 3” Lag Bolt and one (1) 5/16” Lightly tap each Finned anchors into place with a washer into each pilot holes. hammer. 2. Tighten all lag bolts using a socket wrench and 1/2” socket. www.vogels.com | Europe +31 (0)40 26 47 400 Page 5... - Page 6 Plumb and level and mark each corner where the PFW6870 will be mounted (or secure to the wall). Install the second mount working in a horizontal direction. Square, Level, and Plumb. Repeat this step for each mount horizontally www.vogels.com | Europe +31 (0)40 26 47 400 Page 6...
-
Page 7: Selecting The Mounting Hardware
The correct screws should thread easily into the mounting point and not pull out when tension is applied. Small Straw Depth Plus 1/8” Allowance Small Straw Depth Plus 1/8” Allowance or Toothpick or Toothpick Mark Mark www.vogels.com | Europe +31 (0)40 26 47 400 Page 7... -
Page 8: Universal Washer Installation
The Universal Spacers must be stacked and oriented as shown. The Universal Spacers must only be installed between the Flat Panel mounting bracket and the flat-panel. Universal Spacer Mount Point www.vogels.com | Europe +31 (0)40 26 47 400 Page 8... - Page 9 Use the M5 Allen driver (supplied) to tighten the locking safety screw. Note: Tighten screw to surface, then tighten 1/4” turn Pre-installed Do not overtighten the locking safety screws. Locking Safety Screw ( 1 per Bracket ) www.vogels.com | Europe +31 (0)40 26 47 400 Page 9...
- Page 10 Left Right Control Control BOTTOM BOTTOM MOVE OUTWARD Left Right Control Control BOTTOM BOTTOM TILT UP Left Right Control Control BOTTOM BOTTOM TILT DOWN Left Right Control Control BOTTOM BOTTOM www.vogels.com | Europe +31 (0)40 26 47 400 Page 10...
- Page 11 Left Right Control Control LEVEL LEVEL LEVEL DOWN Left Right Control Control LEVEL LEVEL ROTATE LEFT Left Right Control Control LEVEL LEVEL ROTATE RIGHT Left Right Control Control LEVEL LEVEL www.vogels.com | Europe +31 (0)40 26 47 400 Page 11...
- Page 12 1. Swipe GAPit along vertical gap 2. Inspect for .050” gap & adjust if needed 3. Swipe GAPit along horizontal gap 4. Inspect for .050” gap & adjust if needed www.vogels.com | Europe +31 (0)40 26 47 400 Page 12...
- Page 13 (Figures 2 & 3). Figure 1 5. Perform any neccessary repairs. Close the latch after servicing. Single Latch Spring Lock Figure 2 Figure 3 95V0-000-012-0X_5 www.vogels.com | Europe +31 (0)40 26 47 400 Page 13...
