TVM 3220 Series
TVM 3240 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new mount.
TVM 3220/3240 Series English
1
Advertisement
Related Manuals for VOGELS TVM 3220 Series
Summary of Contents for VOGELS TVM 3220 Series

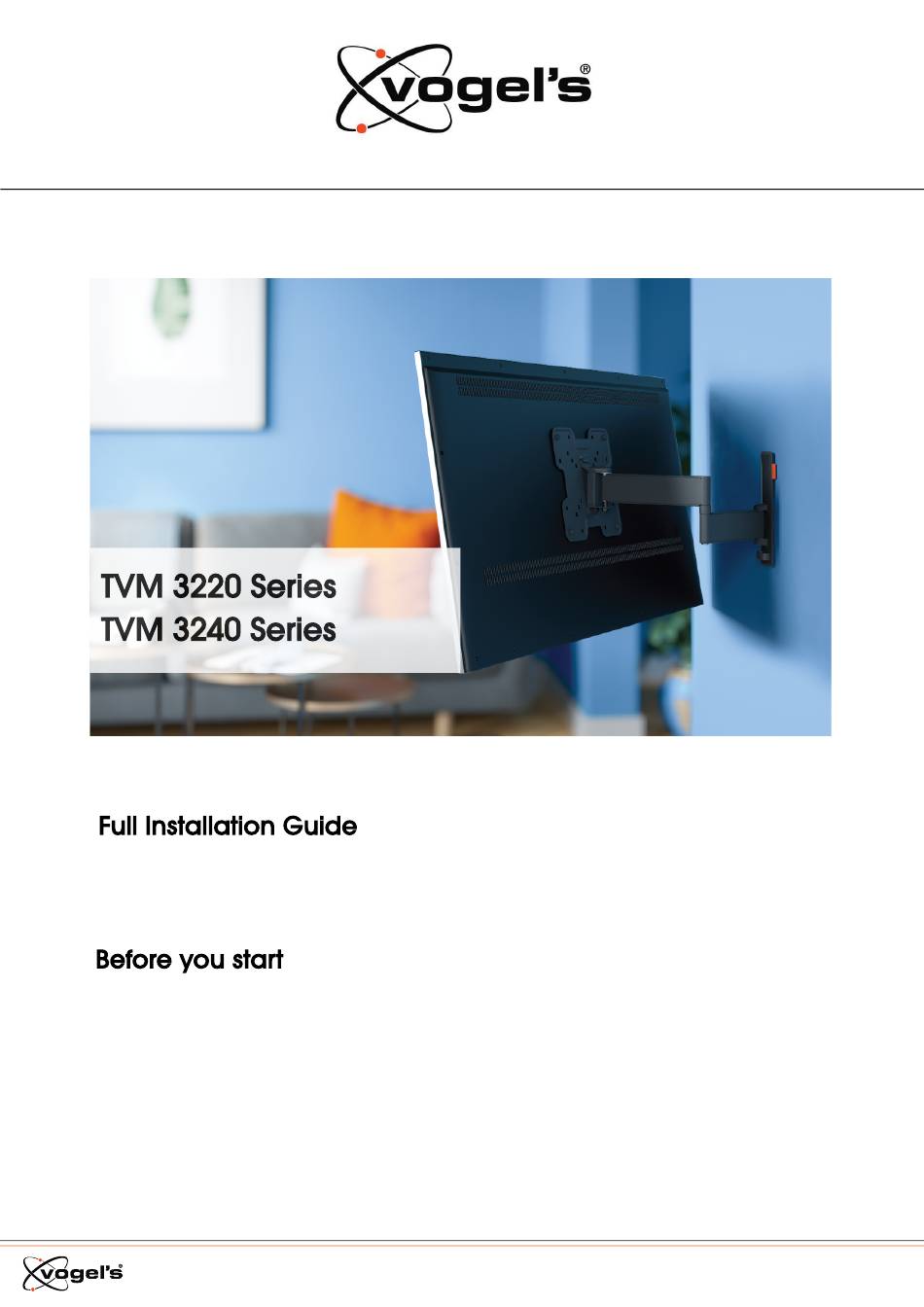

- Page 1 TVM 3220 Series TVM 3240 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount.
- Page 2 Stay safe Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.
-
Page 3: What's In Your Box
What’s in your box? D. Safety instructions E. Bolts for fastening adapter on TV (see contents below) F. Spacers G. Washers Ø 18 mm Something missing? Make sure your packaging has everything in place: H. Screws A. Wall mount I. Plugs (fischer© DuoPower) B. - Page 4 You don't need all fasteners to mount your TV. Store the rest for later or other use! Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver Drilling machine 8mm or 5/16” concrete/brick drill (for concrete/brick walls only) 4mm or 5/32”...
- Page 5 2. Screw the adapter Ⓑ on to the TV with the bolts Ⓔ and washers Ⓖ. Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly.
- Page 6 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete/Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1.
- Page 7 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. 4. Place the covers Ⓚ. TVM 3220/3240 Series English...
- Page 8 Wooden wall with studs Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2.
- Page 9 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. 5. Place the covers Ⓚ. TVM 3220/3240 Series English...
- Page 10 If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact. Step 3: Attach the TV to the wall mount 1.
- Page 11 Job done now! Enjoy watching your TV! Handy features Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com! TVM 3220/3240 Series English...
- Page 12 Tilt to avoid refl ections 1. Adjust the tilt angle by pulling the TV forwards or backwards. 2. Optional: If the screen tilts downwards. Tighten the bolt with key. Guide your cables 1. Guide the cables. 2. Place the cable clip Ⓜ on the arm, where needed. 3.
- Page 13 Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices. Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. TVM 3220/3240 Series English...
- Page 14 Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com www.vogels.com/contact facebook.com/ VogelsForSure/ instagram.com/ vogels_official/ www.youtube.com/ c/VogelsForSure TVM 3220/3240 Series English...
-
Page 15: Simple Troubleshooting
Simple troubleshooting Found a problem you can’t fix? Don’t panic… try these! Problem Cause Solution ‘There are stains on the The stains are caused by the The stains are easy to remove with a cloth. arms of the wall mount’ paper pulp interior in the box. - Page 16 FAQs ‘Where can I request the correct bolts for my TV (a Whatever you need, simply contact your local Vogel's service kit)?’ dealer or Vogel's. Click here to contact Vogel's Consumer Care. ‘Where can I find installation videos?’ The installation video can be found at the product page of your product on our website.
- Page 17 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! Guarantee Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of durable materials and is based on a meticulous design.
