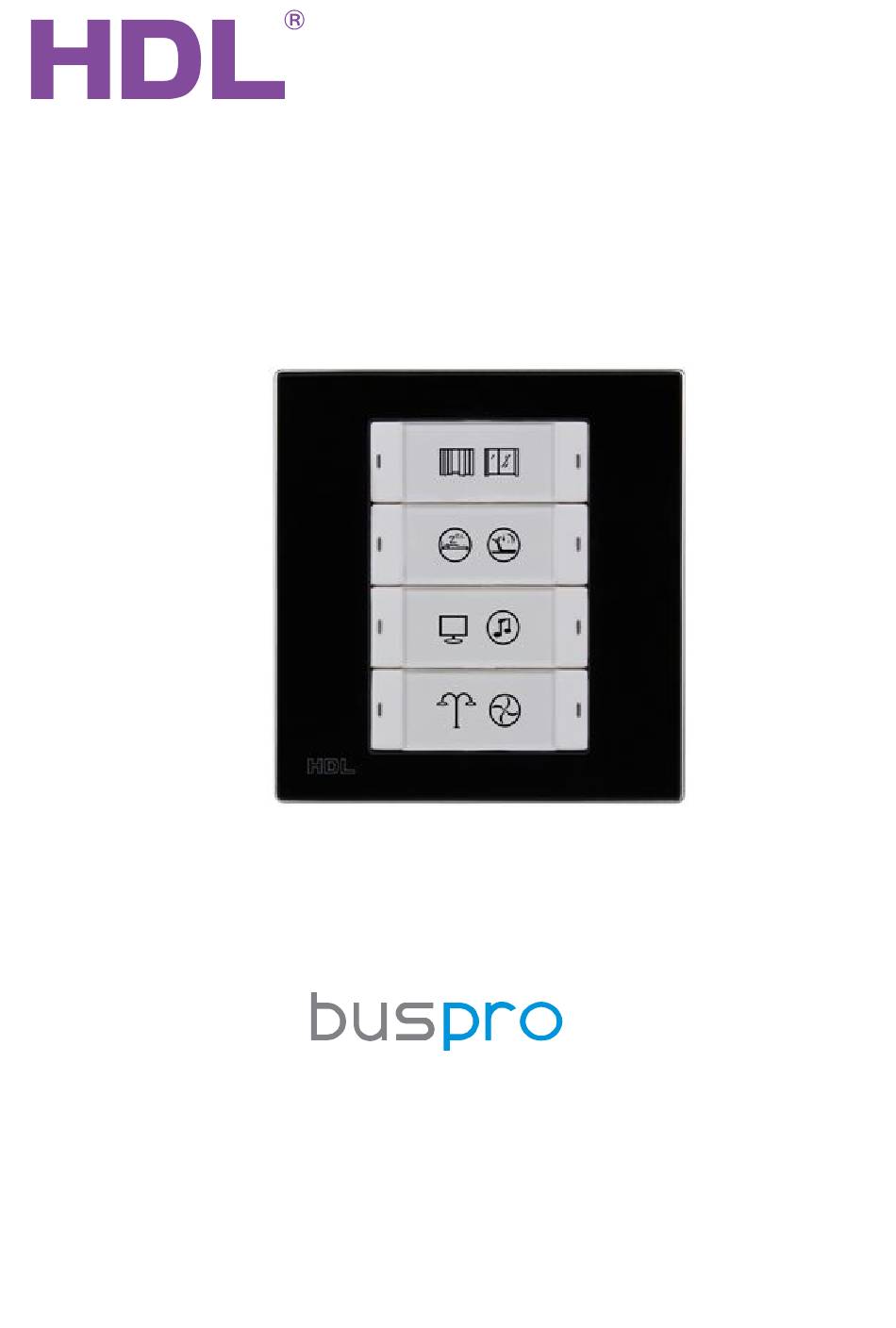

- Page 1 User Manual Multifunctional Wireless Panel HDL-MP8B-RF.18 www.hdlautomation.com...
- Page 2 User Manual HDL-MP8B-RF.18 Document updates: Version Date Description V1.0 2015.09.05 Finish new document Multifunctional Wireless Panel – User Manual...
-
Page 3: Table Of Contents
User Manual HDL-MP8B-RF.18 INDEX 1. Overview............................1 1.1 General Information......................1 1.2 Functionalities Description....................1 1.3 Device Description......................2 2. Safety Instructions........................2 3. Technical Data..........................2 4. Installation............................3 5. Change the button labels......................4 6. Software Configuration........................4 6.1 Basic Information....................... 4 6.1.1 Wireless Setting via Mesh Gateway..............4 6.1.2 Indicator Intensity.................... -
Page 4: Overview
User Manual HDL-MP8B-RF.18 1. Overview 1.1 General Information HDL-MP8B-RF.18 is multi-functional wireless panel. Its button labels, plate material and color are easy to replace. 1.2 Functionalities Description Key Mode: Single on/off, Single on, Single off, Combination on, Combination off, Combination on/off, Double click single on/off, Double click combination on/off, Inching, Short/long press, Short press/long inching. -
Page 5: Device Description
User Manual HDL-MP8B-RF.18 1.3 Device Description 2. Safety Instructions The screw down strength should not exceed 0.1Nm Mounting position: Indoor. Never let liquids get into the module, it will damage this device. 3. Technical Data Electric Parameters... -
Page 6: Installation
User Manual HDL-MP8B-RF.18 Environmental Conditions Working temperature -5℃~45℃ Working relative humidity Up to 90% Storage temperature -20℃~+60℃ Storage relative humidity Up to 93% Approved RoHS Production Information Dimensions 86×86×10.5 (mm) Weight 110.5g Housing material Glass, ABS, PC Installation Wireless power interface, EU wall box... -
Page 7: Change The Button Labels
User Manual HDL-MP8B-RF.18 Wall box: For convenience of the wiring installation, the wall box should be a little deeper than the power interface. 5. Change the button labels 1.Open the plastic (shown as above) 2. Remove it (take out the label if it is inside) 3. - Page 8 7- Click ‘all Node Exit Setup’, then the wireless devices will exit the wireless setup mode. 8- Go to the HDL BUS setup tool’s main interface to search and add the multi-function wireless panel, then can start to configure it via the gateway.
-
Page 9: Indicator Intensity
The brightness of its LED indicators can be adjusted. For this 4 touch buttons panel, does not have LCD screen, so no need to set the LCD backlight. 6.2 Key Assignation The setting interface for the 8 buttons in HDL-BUS Pro Setup Tool is shown in below screen shot. 6.2.1 Remark Set the remark for each key for easy management. -
Page 10: Mode
User Manual HDL-MP8B-RF.18 6.2.2 Mode Key mode: Single on Assign the Switch can turn on one target only (one channel, one scene, one sequence, etc.) Single off Assign the Switch can turn off one target only (one channel, one scene, one sequence, etc.) -
Page 11: Function
User Manual HDL-MP8B-RF.18 Momentary Press to turn on target, release to turn off target. Short /long press Both short press and long press can control up to 49 targets Short /long Jog Both short press and long Jog (long press to turn on, release to turn off) can control up to 49 targets 6.2.3 Function... - Page 12 Can be used to do some basic settings for the device from panel, like changing the logic input conditions of, e.g., 12in1 Sensor, rather than using HDL-BUS Pro Setup Tool, this feature makes the system more flexible for end-user. For more info, please refer to universal control command_ 12in1.xls, download from:...
-
Page 13: Key Lock
User Manual HDL-MP8B-RF.18 6.2.4 Key Linkpage Linkpage between keys for editing group mode,the mode such as combination on, combination on/off can be set to mutual exclusion. After setting mutual exclusion, only the last controlled key can indicate its status (on), other keys ’ status in mutual exclusion group will be off. -
Page 14: Key Status Setting
User Manual HDL-MP8B-RF.18 6.2.6 Key Status Setting Dimming value Toggle- when turn on light, the brightness will go to 100% Memory- save the brightness, when turn on light, the brightness will go to last brightness before turn off Dimming: Valid- enable dimming when long pressed... -
Page 15: Test The Switch
User Manual HDL-MP8B-RF.18 Infrared receiving function status Enable/disable the IR receiving function (accept HDL remote controller only) Minimum dimming value Set the dimming lower limit. The Lower limit is useful if you would like to skip the low level segment and dim from a certain level, say 40%. - Page 16 User Manual HDL-MP8B-RF.18 option to check the power interface’s address. Remark Remark the channel for the easy management. Load Type Select the corresponding load type for each channel according to the real situation; it is just like a remark, would not affect the behavior of lamps. Default selection – Undefined.
-
Page 17: Dimmer Setting
User Manual HDL-MP8B-RF.18 Max Level The max output brightness of a channel. For channel1, if the connected load is bulb, the max value cannot exceed 80%; if the connected load is LED, the max value must be small (less than 80%, user needs to test the proper value themselves), otherwise power interface cannot supply enough power, then lead to dimming flicker, more serious, the power interface will automatically restart. -
Page 18: Online Upgrade
User Manual HDL-MP8B-RF.18 by default. User can control the outputs by checking the ‘Set and output’ box of the Channel setting page to check the power interface’s address. Channel no. 1-3 is for address1, channel no. 4-6 is for address2, channel no. 7-9 is for address3, channel no. -
Page 19: Manual Upgrade
User Manual HDL-MP8B-RF.18 2- Select .bin firmware, click “Add Device”, then it will be shown in the upgrade list. 3- Click “Upgrade Selected Device” to start the upgrade. 4- Upgrade finished. 7.2 Manual Upgrade For manual upgrade, the multi-function wireless panel will enter the wireless setup mode,... - Page 20 User Manual HDL-MP8B-RF.18 then the mesh gateway needs to enter the wireless setup mode also. Upgrade steps: 1- Press the ‘PROG’ button of wireless gateway 3 times continuously to enter the wireless setup mode. ower off the multi-function wireless panel then keep pressing the programming button (the last two button) when power on it, it will enter the wireless setup mode, and you will be able to read its ID in the “Device”...
-
Page 21: Note
User Manual HDL-MP8B-RF.18 8. Note ………………………………………………………………………………………………………. ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… Multifunctional Wireless Panel – User Manual...
