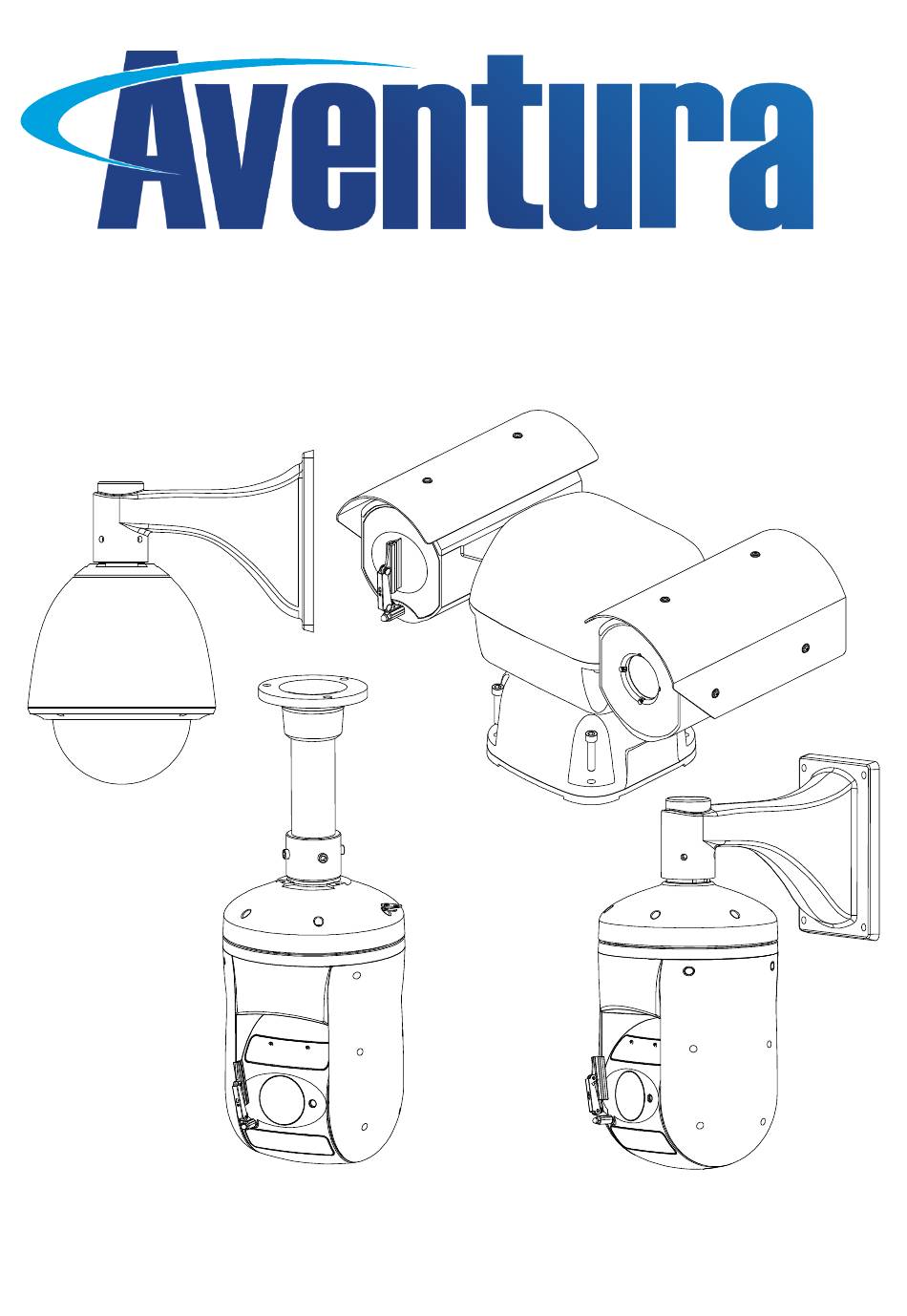

- Page 1 IPD Series PTZ & Positioning Camera User Installation Manual Model Series: PTZ Dome Range CAM-IPD-xx-xxx-DN Series. CAM-IPD-xx-xxx-IC. CAM-IPD-xx-xxx-IRL, CAM-IPD-xx-xxx-IR, Positioning PTZ CAM-IRZ-xx-xxx-IR. CAM-LTZ-xx-xxx-IRL...
-
Page 2: Table Of Contents
Contents Precautions ................................3 Installation ................................4 Cautions ................................4 Distributing of power close to the device......................4 Lightning Proof and Surge Protection ....................... 5 Water Proof ............................... 5 Preparation of Installation ..........................5 Model Range ..............................2 Bracket Selection .............................. 2 Installation ................................ -
Page 3: Precautions
Requirements to service personnel Qualified technicians should do all the service work. Only when authorized by Aventura Support. Do not disassemble the pan/tilt module Do not remove screws, and don't maintain the parts in the Pan/Tilt by yourself. Only qualified and authorized personnel can undertake repairs. -
Page 4: Installation
2. Installation Cautions Please read all this user manual before installation. Power: AC24V or High PoE when available, use the power devices supplied with the unit only. Precise optical and electronic parts inside of the product. Avoiding severe pressure, hard vibration, etc. non-correct operation methods, which may cause damage to the product when in transportation and during installation. -
Page 5: Lightning Proof And Surge Protection
Checking everything is completed avoided. Please contact Aventura technical for according to the packing list. Make sure advice. the application place and the way of ... -
Page 6: Model Range
Model Range The PTZ consists of several parts, which form the basis of a complete solution. Bracket for fitting, and the main housing body. Positioning model is an all in one complete camera and requires just the installation to a bracket. -
Page 7: Installation
Installation 2.8.1 Wall Mount a) The installation site must be able to support the sum of weight such as the dome, the bracket, and the pedestal, multiplied by four. b) The chosen wall of installation site must be substantial. Make sure the bracket installs on the wall first and it sturdy and horizontal. -
Page 8: Pendant Mount
d) Before connecting the dome to the pendant 2.8.2 Pendant Mount mount bracket, it’s best to present all cables a) The installation surface must be able to being connected to the device. And allow for support the weight of the dome. some movement of wires above the b) Do not install on ceiling tiles which are brittle installation. -
Page 9: Positioning Unit

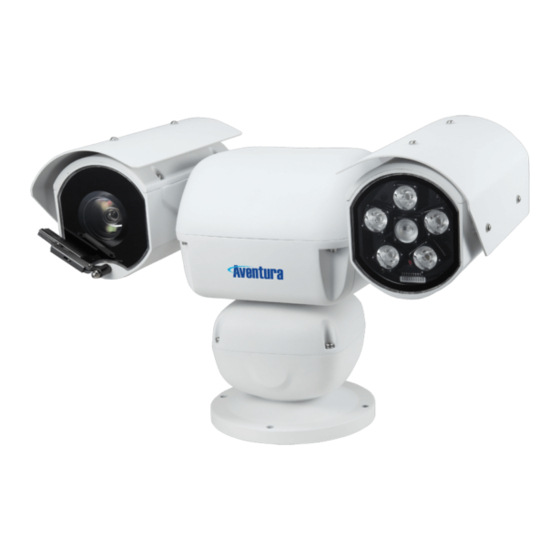

2.8.4 Positioning Unit a) Optionally positioning cameras can be installed to b) The positioning bracket then attaches to the pole, a pole mount bracket. The pole mount is a using the supplied bolts. universal bracket which also is suitable for other c) If you are not using the pole mount, then the PTZ series devices. -
Page 10: Performance
3. Performance Generic Production Specifications Setting: Electrical Power supply 2400/4800/9600/19200bps AC24V / PoE Baud rate (RS485) Consumption PELCO_D Outdoor 30W Protocol Address setting Decoder Built-in RS485: 0-254 Surge Buitt-in TVS4000V, Lighting Environmental: Operation: Operational -10°C~+50°C (14°F~+122°F) Environmental humidity 360° continuously Pan rotation 0-90% none compensation IP66, Weatherproof housing... -
Page 11: Network Ip Specifications
Network IP Specifications Support H.264/MJPEG/H.265 Video Compression, dual frame rate, high compression, high video quality Support Micro SD card storage( need factory preset） IP PT tile, date, time, frame rate Support multi-network protocol: TCP/IP, UDP, RTSP, HTTP, DDNS, FTP, NTP, PPPOE, SMTP Built-in web server, support IE explorer video watch, match specification, upgrade, User Rights Management Built-in ONVIF protocol can make technology docking with another onvif platform, built-in SD card storage function Support ONVIFonvif... -
Page 12: Performance And Application
4. Performance and Application PTZ Performance and Features This intelligent PTZ comes with a smart design and a sturdy structure which is intended for a special occasion and high-point monitoring. With built-in constant temperature device and wipers (if model supports), it can dramatically enhance the usability in a broad variety environment. -
Page 13: Camera Id
Alarm in/out control function. On the IE interface, you can set the corresponding input and output functions, such as: receiving the alarm input signal can send a message can post an e-mail or capture pictures. The items below describe the primary functions and the general principle of intelligence PTZ cameras. They may not refer to the particular operation methods of your device. - Page 14 o Observation of the target near and far at the same time, cannot be clear at the same time. o Target is a strong light object, such as neon light, spotlight, etc. o Target moves too fast. o Target is too dark or vague. o Target area such as a wall.
-
Page 15: Network Configuration
5. Network Configuration Network Connection brief All PTZ cameras' factory default IP is 192.168.1.88, be sure you are on the correct network segment for successful communications. Use static IP addresses for multiple PTZ devices, proper assignment of address should be performed in advance of devices being physically installed to reduce potential conflicts or network issues. -
Page 16: Login Browser
Login Browser Using Internet Explorer (IE) with default address at URL. As a first security measure, you are prompted to set a complex password. The help provided will provide the details of the minimal requirements. Live Preview After successful login to the device, you will enter directly into the Liveview. The full selection of features of PTZ is activated by clicking the icon at the top right as indicated below: In the real-time browsing page, you can capture video images, video, playback, voice intercom, monitor, clear the alarm, Log query, partial image enlargement, full-screen preview and cloud mirror control and... -
Page 17: Client Search Tool
[Secondary Stream] Retrieve the secondary stream of the device to see videos and reduce the network load. [PTZ control] up, down, left, right, automatically adjust the PTZ rotation speed PTZ operation. As shown below (Figure 3). [Lens control] Zoom, focus, aperture, light, wiper, and other PTZ operations are available. The interface is also on the primary control in (Figure 3). -
Page 18: Appendix
6. Appendix Basic Operation Current-carrying to PTZ and Self-testing The PTZ conducts self-testing after current-carrying, and it rotates slowly until displaying pan origin that is default setting, then moving to tilt origin, the lens is adjusted from far zoom to near zoom, then from near zoom to far zoom, when self-testing completes, there is relevant system information displaying on the screen, as follow: S/N of the PTZ... -
Page 19: Shortcut Keys
Shortcut Keys PT unique shortcut keys as below. Functions are issued with preset from Browser or NVR devices. And also, can be called via an RS485 connected keyboard. Function Description Call Save No.N preset Call No.N preset Iris off Iris on Save horizontal scan left limit #1 Save horizontal scan right limit #1... -
Page 20: Menu Index
Menu Index MAIN MENU SYSTEM SETTING CAMERA SETTING FUNCTION SETTING WINDOW BLANKING EXIT SYSTEM SETTING CAMERA SETTING FUNCTION SETTING WINDOW BLANKING EDIT DOME LABEL INITIAL INFO ZOOM SPEED HIGH PRESETS WINDOW NUMBER 01 DISPLAY SETUP DIGITAL ZOOM SCAN EDIT WINDOW MOTION BLC MODE PATTERNS... -
Page 21: Cad Dimensions
CAD Dimensions 6.4.1 Internal PTZ and D/N PTZ Models. 212mm [8.34"] 152mm [5.98"] 215mm [8.46"] 245mm [9.64"] 320mm 215mm [12.6"] [8.46"] Recess Mount Wall Mount Pole Mount 6.4.2 Laser LED and IR LED PTZ Models. 312 mm [12.3"] 200 mm [7.87"] 140 mm [5.51"]... -
Page 22: Rs485 Bus Basic Knowledge
RS485 Bus Basic Knowledge Characteristics of RS485 Bus: The connection of 120Ω termination resistor: As specified by the RS485 standard, RS485 Bus is of half-duplexed data transmission cables with characteristic impedance as 120Ω. The maximum load capacity is 32-unit loads (including the main controller and controlled equipment.) ... -
Page 23: Maintenance And Service
7. Maintenance and Service Limited Warranty The product will carry a two-year warranty. The product will be obtained the free maintenance service if the same malfunction appears again within three months. Malfunction of products caused by force majeure (such as war, earthquake, lightning strike and so on), abuse, ... -
Page 24: Regulatory Information
8. Regulatory Information This equipment has been tested and found to comply with the limits for a class B digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used by the instructions, may cause harmful interference to radio communications.
